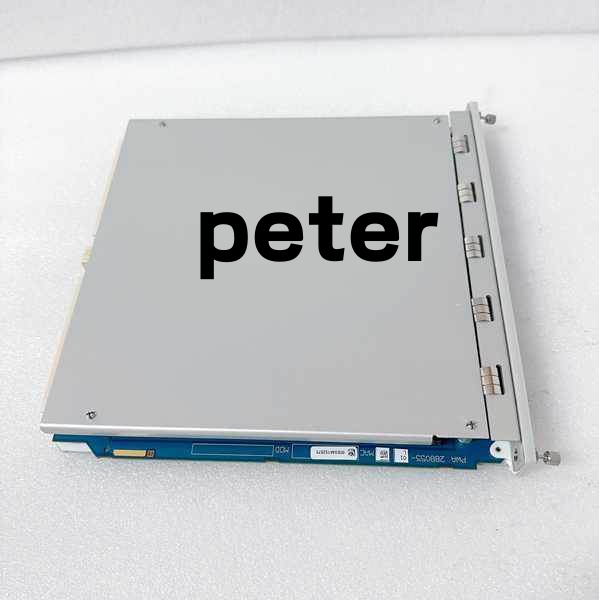

Product Core Brief Model: 3500/22M 288055-01 Brand: Bently Nevada (Baker Hughes) Series: 3500 Machinery Protection TSI Rack System Core Function: Rack master TDI that aggregates all monitor data, stores fault waveforms, and communicates with System 1 / plant DCS Product Type: Single-slot hot-swappable rack master transient data interface Key Specs: 10/100 Ethernet + USB-B front…

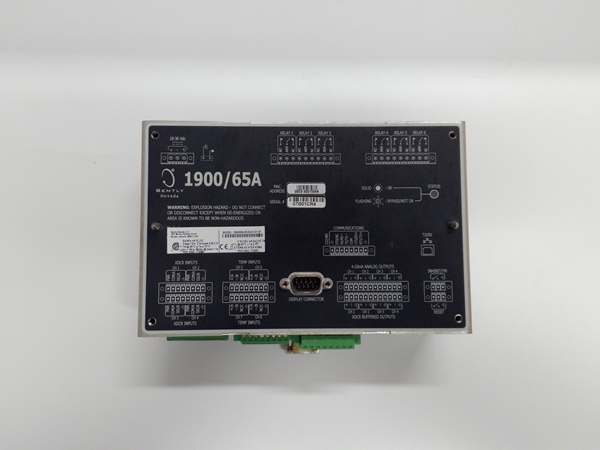

DetailsComponent Snapshot At-a-Glance Model: 1900/65A-00-00-02-00-01 Suffix Full Breakdown: Power=00：18–36VDC wide DC control power Display=00：No front LCD local display, only OK/Alert/Danger discrete LEDs Mount=02：Bulkhead panel flush mount (not DIN rail) Approvals=00：General industrial certification, no hazardous Zone 2/ATEX Comm=01：Built-in Modbus RTU RS485 communication port for DCS/SCADA/System1 Alt. P/N: 1900/65A-00-00-01-00-00 (DIN rail mount, no Modbus comm; incompatible mounting…
DetailsComponent Snapshot At-a-Glance Model: 3500/65, assembly part number 145988-02 (front monitor card, mates with rear terminal base 172103-01) Alt. P/N: 3500/60 (4-channel temperature monitor, limited channel count, incompatible TMR triple redundant voting logic) Product Series: Bently Nevada 3500 Machinery Protection TSI Rack System Hardware Type: Single-slot slide-in 16-channel mixed RTD/thermocouple temperature monitor module Key Feature:…
DetailsComponent Snapshot At-a-Glance Model: 3500/22-01-01-01 (TDI Transient Data Interface, assembly PN 138607-01, also marked 3500/22M) Alt. P/N: 3500/20 RIM Rack Interface Module (no transient capture, limited Ethernet throughput, non-interchangeable firmware) Product Series: Bently Nevada 3500 Machinery Protection TSI Rack System Hardware Type: Mandatory Slot 1 single-slot rack master interface / transient data acquisition module Key…

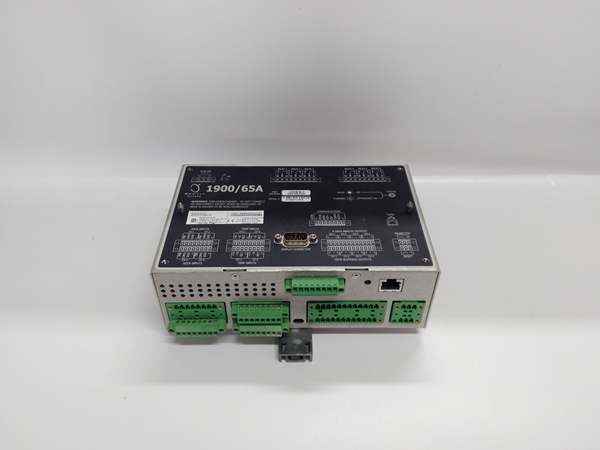

DetailsComponent Snapshot At-a-Glance Model: 1900/65A-00-00-01-00-00 Suffix Breakdown: Power=00(18–36VDC), Display=00(No front display), Mount=01(TS35 DIN rail), Approvals=00(No hazardous certs), Comm=00(No Modbus/Ethernet) Alt. P/N: 1900/65A-00-01-01-00-00 (with local display; incompatible field wiring without keypad config) Product Series: Bently Nevada 1900 Compact Standalone Machinery Monitor Platform Hardware Type: DIN rail mount dual-channel proximity vibration + Keyphasor speed monitor, no onboard…
DetailsComponent Snapshot At-a-Glance Model: 3500/91-01-01 (EGD Ethernet Global Data communication gateway, front comm card + rear terminal I/O pair) Alt. P/N: 3500/92 (Serial Modbus RS485 gateway, no native EGD Ethernet, incompatible rack firmware) Product Series: Bently Nevada 3500 Machinery Protection TSI Rack System Hardware Type: Single-slot slide-in rack communication gateway module Key Feature: Dual isolated…
DetailsComponent Snapshot At-a-Glance Model: 3500/54-03-00 (4-channel overspeed protection monitor, 2oo3 voting capable, barrier terminal rear I/O) Alt. P/N: 3500/54-01-00 (2-channel overspeed only, no triple redundant voting, incompatible safety logic) Product Series: Bently Nevada 3500 Machinery Protection TSI Rack System Hardware Type: Single-slot slide-in rack overspeed safety monitor front card + matched rear barrier terminal I/O…
DetailsComponent Snapshot At-a-Glance Model: 1900/65A Alt. P/N: 1900/60A (single-channel vibration monitor, no Keyphasor speed input, non-interchangeable firmware/terminal pinout) Product Series: Bently Nevada 1900 Compact Machinery Protection Monitor Platform Hardware Type: Dual-channel panel/DIN mount eddy-current proximity displacement/vibration monitor with Keyphasor speed input Key Feature: 2 independent proximity transducer channels, dedicated Keyphasor phase/speed input, 6 SPDT alarm…
DetailsComponent Snapshot At-a-Glance Model: 330130-080-00-CN Alt. P/N: 330130-050-00-CN (5m standard extension cable, electrical impedance mismatched, cannot cross-swap for 9m full system) Product Series: Bently Nevada 3300 XL 8mm eddy-current proximity transducer system Hardware Type: 8-meter double-shielded standard coaxial extension cable with ClickLoc mini coaxial connectors Key Feature: Factory-calibrated fixed 8m electrical length, 75Ω matched impedance,…
DetailsComponent Snapshot At-a-Glance Model: 330106-05-30-10-02-CN Alt. P/N: 330106-05-30-05-02-CN (0.5m built-in cable variant, cannot cross-swap for 1m cable systems) Product Series: Bently Nevada 3300 XL 8mm eddy-current proximity transducer system Hardware Type: Reverse-mount armored proximity probe with 1m integral coaxial cable, M10×1 thread Key Feature: 7.87 V/mm (200 mV/mil) fixed sensitivity, rear-facing tip reverse installation, ClickLoc…
Details
