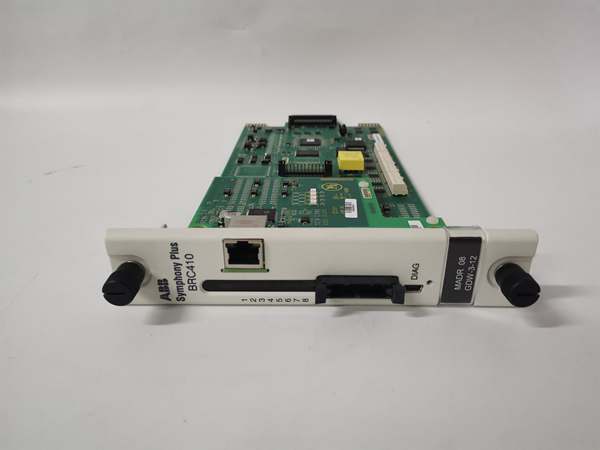

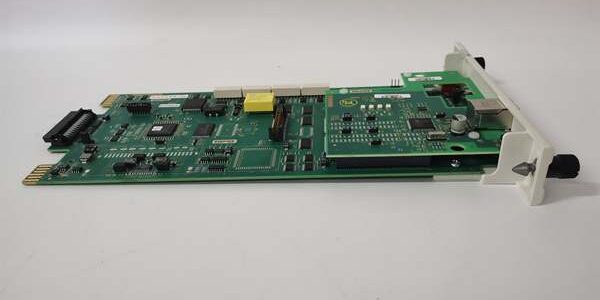

Product Core Brief
- Model: SPBRC410
- Full OEM Part Number: 3BSC760001R1
- Brand: ABB Hitachi Energy
- Series: HR Series Harmony rack bridge controller for Symphony Plus / Bailey INFI 90 legacy DCS
- Core Function: Top-tier high-performance bridge CPU module designed for large-scale multi-rack distributed control systems. It executes complex continuous, batch, sequential and safety interlock control logic, and acts as a multi-protocol communication gateway integrating Symphony proprietary INFINET bus with standard industrial Ethernet Modbus TCP.Core functional capabilities:
- High-speed 32-bit processor handles up to 30,000 control function blocks, supporting over 2,000 I/O point closed-loop regulation for heavy-load plant production lines;
- Built-in 100 Mbps Ethernet Modbus TCP port to exchange real-time process data with third-party PLC, HMIs and 800xA upper DCS;
- Compatible with redundant hot-standby architecture, can pair with identical or SPBRC400 medium-capacity controllers for bumpless failover;
- Connects multi-type I/O subsystems including HR I/O, SD series I/O and S800 remote I/O via Hnet fieldbus;
- On-board lithium backup battery retains control logic, PID parameters and event logs after full cabinet power loss without external auxiliary battery modules.
- Product Type: Rack-slotted high-performance bridge controller CPU
- Key Specs: 160 MHz 32-bit Freescale Coldfire processor; 2 MB non-volatile NVRAM; integrated 100 Mbps Modbus TCP Ethernet port; dual INFINET backplane bus channels; Hnet I/O bus interface; built-in lithium backup battery; supports hot redundant active/standby pairing; 24 VDC rack backplane logic power supply; front RUN/FAULT diagnostic LEDs; ISA G3 anti-corrosion conformal coating; dedicated HR Harmony rack slot installation
- Note: Still active production for new large 800xA hybrid Symphony Plus DCS projects and legacy power plant/chemical plant control room renovation. Factory-sealed original modules and fully cyclic-tested surplus units are widely supplied for thermal power units, pulp & paper mills, offshore chemical platforms and municipal water treatment central control cabinets. Direct upgrade replacement for SPBRC400 medium-capacity bridge controllers without full system re-certification.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Full OEM Article Code | 3BSC760001R1 |
| Main Processor | 32-bit Coldfire, 160 MHz core clock |
| Non-Volatile Memory | 2 MB NVRAM, retains all control strategy without external power |
| Max Supported Function Blocks | 30,000 standard control blocks (PID, interlock, batch, sequence) |
| Maximum I/O Processing Capacity | Up to 2000 analog/digital I/O points per single controller |
| Communication Interfaces | 1x 100 Mbps Modbus TCP Ethernet; dual INFINET rack backplane; Hnet I/O fieldbus |
| Redundancy Support | Hot redundant pairing with identical or SPBRC400 |
| Memory Backup | On-board rechargeable lithium coin cell battery (5-year typical service life) |
| Logic Power Supply | 24 VDC ±10% SELV power fed from Harmony rack backplane |
| Front Indicators | Green RUN (normal operation); Red FAULT (communication / logic failure) |
| Isolation Rating | Functional isolation between Ethernet fieldbus and internal rack backplane bus |
| PCB Protection | ISA 71.04 G3 conformal coating for salt fog, moisture and corrosive vapor resistance |
| Mechanical Dimensions | 254 mm H × 101.6 mm D × 203.2 mm W |
| Net Weight | Approx. 0.7 kg |
| Operating Ambient Temp | -10 °C ~ +60 °C sealed control cabinet; storage -40 °C ~ +85 °C |
| Humidity Tolerance | ≤75% RH non-condensing indoor environment |
| Compliance Standards | IEC 60255 industrial control standard, IEC 61158 fieldbus standard, TÜV type-tested, CE & RoHS certified |
Product Introduction
The is the highest-performance bridge controller in ABB Symphony Plus HR series, developed to solve the insufficient computing and communication capacity of SPBRC400 medium controllers for large multi-rack DCS systems. It integrates four core high-end functional modules that distinguish it from lower-capacity SPBRC400:
- Tenfold Higher Processing PerformanceThe upgraded 160 MHz 32-bit processor delivers 10x faster algorithm execution speed than , supporting large-scale batch control, multi-section synchronous production line coordination and complex turbine boiler safety interlock logic widely used in thermal power plants. It processes up to 30,000 function blocks and 2,000 I/O points with scan cycle below 250 ms, meeting high-precision real-time control requirements.
- Native Modbus TCP High-Speed Ethernet GatewayUnlike which only supports serial Modbus RTU, integrates a dedicated 100 Mbps Ethernet port for Modbus TCP industrial Ethernet communication. It directly exchanges large volumes of real-time process data with upper 800xA DCS, third-party PLC and plant SCADA systems without additional external communication submodules, greatly simplifying cabinet wiring layout and reducing hardware investment.
- Multi-Type I/O Subsystem Unified AccessDual bus interfaces simultaneously connect HR local rack I/O, SD series analog/digital I/O and remote S800 field I/O via Hnet bus, realizing unified data collection and control for distributed multi-section plant equipment, suitable for large chemical plant multi-unit distributed control architecture.
- Built-In Lithium Memory Backup BatteryNo external SPBRC dedicated backup power module required. The on-board rechargeable lithium cell maintains all downloaded control logic, PID tuning parameters and historical event logs for multiple weeks after cabinet power loss, eliminating the risk of full strategy erasure and long production downtime after power outages.
Conformal coating treatment ensures long-term stable operation in coastal offshore control rooms and metallurgical workshops with corrosive gas and salt fog. It can operate standalone for small single-rack systems or form redundant A/B control pairs with matching units for SIL safety-critical plant control bays.
QA & Testing SOP (Transparency Building)
- Incoming Visual Inspection: Cross-check full part number 3BSC760001R1 and serial number against ABB Symphony Plus DCS spare parts database to reject mismatched medium-capacity controllers; inspect front RUN/FAULT LEDs, Ethernet port, INFINET backplane connector, internal lithium battery and conformal PCB coating for swelling, discoloration, pin bending or scratch damage; record serial numbers and production batches for full maintenance traceability.
- Full Redundant Linkage Bench Test: Mount on standard HR Harmony rack DIN rail test bench, connect simulated full-load 30,000 function block logic and multi-type I/O load bank; run 24-hour cyclic testing including single-controller full-load operation, dual-unit redundant bumpless switchover simulation, Modbus TCP Ethernet large data transmission, mains dropout memory retention test, fault alarm trigger for bus communication loss, verify stable Ethernet signal without packet loss under full load.
- Electrical Safety Test: Insulation resistance tester confirms ≥10 MΩ isolation between Ethernet fieldbus terminals and rack backplane logic circuits; chassis protective earth continuity resistance <0.5 Ω.
- Hardware Record Backup: Photograph front LED status definitions, rear backplane connector pin assignments and redundant pairing wiring rules for on-site commissioning reference, record internal lithium battery manufacturing date for service life cycle tracking.
- Final QC Packaging: Wipe module housing with anti-static microfiber cloth, cover Ethernet port and backplane connector slots with insulating dust caps, place the controller into independent ESD shielding bag, attach unified printed QC test tag with full 24-hour redundant parallel communication test runtime timestamp, then pack into foam shockproof carton for long-distance power plant transportation.
Installation Pitfalls & 4-Step Replacement Guide
Common Installation Hazards
❗ Residual DC Surge Risk: Before extracting , fully lock out the cabinet 24VDC auxiliary power supply, wait minimum 10 minutes for internal logic capacitor complete discharge to avoid signal surge damaging rack backplane circuits.❗ Controller Model Mismatch Restriction: high-capacity unit cannot be directly replaced by without recalculating total system I/O and logic load; insufficient processing capacity will trigger frequent communication lag and control cycle timeout.❗ Ethernet Wiring Polarity & Termination Error: Missing 120Ω terminal resistors at both ends of Modbus TCP Ethernet segments cause severe signal reflection and Modbus data packet loss.❗ Lithium Battery Short-Circuit Handling Risk: Avoid direct contact of positive/negative battery terminals during disassembly; short-circuit leads to battery swelling and permanent memory loss.❗ ESD PCB Damage Risk: Wear certified anti-static wrist strap during all disassembly and installation work; bare finger contact with internal processor and Ethernet transceiver chips permanently impairs high-speed communication and redundant switchover logic.
4-Step Bridge Controller Replacement Guide
- Pre-install Preparation: Lock out and tag out the HR rack 24VDC auxiliary power supply, wait 10+ minutes for full capacitor discharge, wear ESD wrist strap, photograph Modbus TCP Ethernet communication wiring, INFINET rack backplane connector wiring and dedicated controller slot fixed position of inside the DCS cabinet.
- Removal Operation: Unplug Ethernet and backplane signal cables one by one following photographed records, release front module latch, slide the old controller fully out of the Harmony rack backplane slot.
- Installation & Wiring: Insert new fully into the dedicated controller slot until front latch clicks locked; replicate Modbus TCP Ethernet and INFINET backplane wiring strictly following photographed sequences, ensure correct cable termination resistor installation for long-distance Ethernet communication, tighten all terminal screws to ABB standard torque values.
- Power-on Commissioning Test: Restore cabinet 24VDC auxiliary control power, observe front green RUN LED steady on with red FAULT LED off; re-download validated plant control strategy via Symphony Plus engineering tool, run continuous I/O data exchange test with HR/SD/S800 I/O modules, simulate single controller power loss in redundant pair setup to confirm bumpless control switchover without process data interruption, verify Modbus TCP data uploads normally to plant SCADA system.
FAQ
Q: What is the core difference between and ?
- : Medium-capacity bridge controller, 80 MHz processor, maximum 15,000 function blocks, only serial Modbus RTU, no native Ethernet port; suitable for small single-rack light-load DCS bays.
- : High-performance heavy-load variant, 160 MHz upgraded processor, up to 30,000 function blocks, integrated 100 Mbps Modbus TCP Ethernet port, multi-I/O subsystem unified access; mandatory for large multi-rack power plant and chemical plant DCS systems with dozens of I/O and fieldbus modules.The two can be paired for redundant operation but cannot be cross-replaced without recalculating total cabinet logic load capacity.
Q: Can operate without connecting I/O modules?It can run control logic standalone, but all field analog/digital signal collection and actuator output functions will be disabled. Hnet I/O bus connection to HR/SD/S800 I/O modules is required to realize complete closed-loop process control.
Q: Can be hot-swapped with cabinet 24VDC auxiliary power energized?Strictly prohibited. The controller directly mates with live rack backplane logic bus and internal charged lithium battery; live disassembly generates DC signal surge and permanently damages CPU and Ethernet transceiver chips. Full auxiliary power lockout and capacitor discharge waiting time are mandatory before replacement.
Q: What warranty applies to stocked 3BSC760001R1 controllers?Factory-new original high-performance bridge controllers carry a 12-month official ABB manufacturer warranty covering 32-bit processing core, Modbus TCP Ethernet communication circuit, redundant load-sharing logic and on-board lithium memory backup battery. Bench-tested surplus units provide a 6-month functional warranty; damage caused by residual power surge, Ethernet wiring termination error, battery short-circuit or ungrounded ESD handling voids all warranty coverage.
Q: Has ABB discontinued production?No formal EOL notice issued; remains standard supply for new large-scale Symphony Plus HR multi-rack DCS projects and legacy plant control room renovation. New ABB Ability 800xA systems adopt integrated high-speed Ethernet CPU cards without separate SPBRC series rack-slotted bridge controllers.
Q: What typical faults indicate a defective controller?Common failure symptoms: Permanent red FAULT LED alarm after power restoration with intact 24VDC rack power, severe Modbus TCP data packet loss without Ethernet cable damage, failure of redundant bumpless switchover when paired with identical units, random DCS process control lag under heavy I/O load, loss of stored control logic after every cabinet power cycle (lithium battery failure), inability to exchange cross-rack INFINET bus data with remote Harmony controller cabinets, repeated controller watchdog cold restarts under normal operating load.
