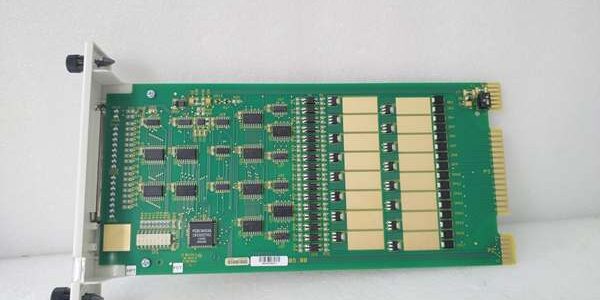

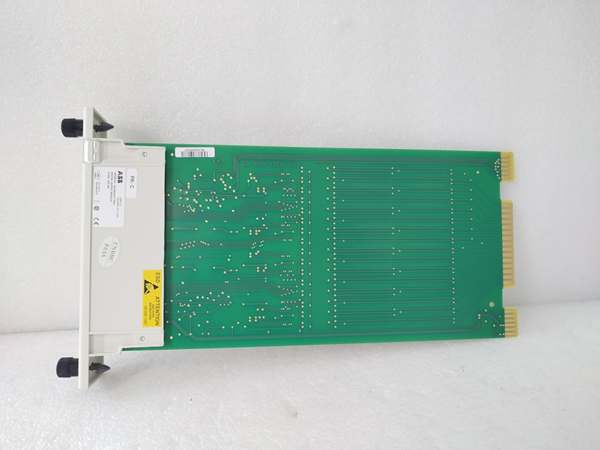

Product Core Brief
- Model: (Industry alias DSO14, matching drawing code 3BSC610066A series)
- Brand: ABB Hitachi Energy (Bailey Legacy Symphony Plus Series)
- Series: Harmony HCU rack-slotted digital output slave I/O module for INFI 90 distributed control systems
- Core Function: High-density rack-mounted digital output slave PCB that receives logic switching commands from Symphony Plus bridge controllers (SPBRC400 / SPBRC410) via INFINET proprietary backplane bus, then outputs open-collector digital drive signals to field relays, solenoid valves, local alarm lamps and auxiliary contactors.Key built-in features:
- 16 independent open-collector output channels with per-channel galvanic isolation to eliminate ground loop EMI interference;
- On-board RC filter network to suppress high-frequency surge noise from motor control centers and variable frequency drives;
- Full hardware protection suite: constant current limiting, short-circuit auto-recovery shutdown, reverse polarity blocking;
- Front panel POWER / FAIL LED indicators for real-time channel and communication fault diagnosis;
- Conformal PCB coating for long-term stable operation in high-humidity, coastal and metallurgical corrosive environments.
- Product Type: Passive rack-slotted digital output slave I/O board
- Key Specs: 16 open-collector digital output channels; 24VDC field-side load voltage compatible; 1500VAC functional isolation per channel; INFINET backplane bus communication; logic power supplied via Harmony rack backplane 24VDC; no separate external power feed required; ISA 71.04 G3 anti-corrosion conformal coating; standard dedicated slot installation inside Harmony HCU control racks; backward compatible with all Symphony Plus bridge controller generations
- Note: The entire Bailey INFI 90 / Symphony Plus DCS platform is fully end-of-life. Only remaining factory-sealed original modules and fully cyclic load-tested surplus PCBs are available as maintenance spares for thermal power unit control rooms, pulp & paper multi-section production lines, steel rolling mill DCS cabinets and municipal water treatment central control panels. Cannot operate standalone; mandatory pairing with SPBRC series bridge CPU modules.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Full OEM Article Code | (DSO14, drawing reference 3BSC610066A) |
| Number of Digital Output Channels | 16 independent open-collector channels |
| Supported Field Load Voltage | 24 VDC standard industrial control signal |
| Channel Isolation Rating | 1500 VAC functional isolation between rack backplane logic and field output loops |
| Per-Channel Max Sink Current | Standard open-collector load capacity for relay driving |
| Built-In Protection Suite | Output constant current limiting, short-circuit auto-recovery shutdown, reverse polarity blocking |
| Backplane Communication | Symphony proprietary INFINET parallel bus to SPBRC bridge controllers |
| Logic Power Supply | 24 VDC ±10% SELV power fed directly from Harmony rack backplane |
| Front Diagnostic Indicators | Green POWER LED (normal rack power); Red FAIL LED (channel fault / bus communication loss) |
| PCB Surface Protection | ISA 71.04 G3 conformal coating for anti-moisture, anti-salt fog industrial environments |
| Mechanical Dimensions | 272 mm D × 130 mm W × 25 mm H |
| Net Weight | Approx. 0.75 kg |
| Operating Ambient Temperature | -10 °C ~ +60 °C sealed control cabinet; storage temperature -40 °C ~ +85 °C |
| Humidity Tolerance | ≤75% RH non-condensing indoor cabinet rated |
| Compliance Standards | IEC 60255 industrial process control equipment standard, CE & RoHS certified |
Product Introduction
The (DSO14) is the standard high-density digital output slave module for all ABB Symphony Plus Harmony DCS racks, acting as the signal output bridge between main bridge controller logic and field-site actuators. It delivers four core industrial control functions:
- 16-Channel Isolated Open-Collector Control OutputEach of the 16 independent output channels generates binary switching signals to drive field relays, process valves, auxiliary alarms and equipment interlock actuators. All channels carry dedicated galvanic isolation barriers to prevent cross-circuit surge voltage backflow into the rack backplane, avoiding permanent damage to SPBRC400/SPBRC410 CPU boards. The open-collector design supports flexible external 24VDC field power distribution without reconfiguring module internal jumpers.
- INFINET Backplane Bus Data ExchangeThe module communicates transparently with the Symphony bridge controller via the proprietary INFINET rack bus. It receives digital setpoint commands from the CPU and uploads real-time channel fault status and load feedback data back to the DCS for event logging and operator alarm display. All bus routing circuits add built-in EMI filtering to eliminate drive switching noise interference.
- Continuous Per-Channel Self-Diagnosis & Fault IndicationThe front red FAIL LED monitors all 16 output loops in real time. If a field wire breaks, short-circuits or suffers polarity reversal, the fault indicator illuminates and records the exact faulty channel number in the controller’s event history log, allowing maintenance staff to locate defective field wiring without scanning every output terminal one by one.
- Full Anti-Corrosion Conformal Coating ProtectionThe entire PCB substrate is coated with industrial-grade conformal coating to resist moisture, chemical vapor and coastal salt fog, extending service life in harsh non-dry control room environments. Typical application scenarios include boiler valve regulation, chemical reactor auxiliary actuator control, paper machine tension positioning and cooling water pump interlock switching. Without a functional , all 16 connected field actuators lose control signals and cannot execute automatic plant process interlock logic.
QA & Testing SOP (Transparency Building)
- Incoming Visual Inspection: Cross-check full model and OEM drawing code against ABB Symphony Plus spare parts database to reject mismatched low-channel digital output modules; inspect front POWER/FAIL LED indicators, rear gold-plated backplane connector pins, field terminal block array and conformal PCB coating for blackened overheating marks, pin bending or oxidation damage; record serial numbers and production batches for full maintenance traceability.
- Full Multi-Channel Linkage Bench Test: Mount into standard Harmony HCU rack test bench, connect 16-channel simulated relay load banks and matched SPBRC410 bridge controller; supply stabilized 24VDC rack backplane logic power, run 24-hour cyclic testing including full-range digital output switching accuracy, individual channel short-circuit fault trigger auto-lockout and recovery, EMI noise surge simulation, verify stable bidirectional INFINET bus data exchange without signal distortion or cross-channel crosstalk.
- Electrical Insulation Test: Use insulation resistance tester to confirm isolation resistance ≥ 10 MΩ between each field output loop and rack backplane logic circuits; test chassis protective earth continuity resistance below 0.5 Ω.
- Hardware Record Backup: Photograph front LED fault status definitions and rear backplane slot mounting rules for field cabinet wiring and commissioning reference.
- Final QC Packaging: Wipe PCB housing with anti-static microfiber cloth, cover all field terminal blocks and rear backplane connector with insulating dust caps, place the module into independent ESD shielding bag, attach unified printed QC test tag with full 24-hour multi-channel cyclic switching test runtime timestamp, then pack into foam shockproof carton for long-distance power plant transportation.
Installation Pitfalls & 4-Step Replacement Guide
Common Installation Hazards
❗ Residual 24VDC Surge Risk: Before extracting the module, fully lock out the cabinet rack 24VDC auxiliary power supply, wait for internal backplane capacitor complete discharge to avoid signal surge damaging the SPBRC series bridge CPU backplane circuits.❗ Field Load Over-Calculation Error: Do not connect field relays with total sink current exceeding the per-channel open-collector rated capacity; excessive load current will activate persistent constant-current limiting protection and cut off actuator control signals.❗ Terminal Wiring Polarity Reversal Damage Risk: Every digital output field terminal must follow positive/negative 24VDC wiring sequence; reversed polarity will instantly burn the module’s internal open-collector driver chip for that channel.❗ ESD PCB Damage Prevention: Mandatory anti-static wrist strap for all disassembly and installation work; bare finger contact with internal output driver transistors and isolation circuits permanently impairs channel switching performance and fault diagnosis function.❗ Skewed Slot Insertion Prohibition: Insert the module straight into the dedicated digital output rack slot; forced angled insertion will scratch gold-plated backplane pins and create permanent intermittent channel contact loss during long-term operation.
4-Step Digital Output Module Replacement Guide
- Pre-install Preparation: Lock out and tag out the Harmony DCS cabinet 24VDC auxiliary power supply feeding the rack containing , wait minimum 10 minutes for full capacitor discharge, wear certified anti-static wrist strap, photograph front field digital output terminal wiring sequences and fixed mounting bolt positions of the module inside the HCU control rack.
- Removal Operation: Loosen all field actuator signal wire terminals one by one following photographed records, release the front module mechanical latch, slide the old board fully out of the rack backplane slot.
- Installation & Wiring: Fix the new module onto the original rack slot rail, slide fully inward until the front latch clicks locked; re-terminate all 24VDC field relay and actuator wires strictly following photographed wiring sequence, ensure every terminal screw is tightened to ABB standard torque values without loose wire strands.
- Power-on Commissioning Test: Restore cabinet 24VDC auxiliary control power, observe front green POWER LED steady on with red FAIL LED off; simulate field contact switching commands from SPBRC410 bridge controller to verify accurate digital output signal generation to field actuators, simulate single-channel wire short-circuit to confirm red FAIL LED triggers and fault channel number logs correctly to plant SCADA system without persistent bus communication interference during continuous no-load operation.
FAQ
Q: What is the core difference between and low-channel digital output modules?Standard low-density digital output boards only support 4 / 8 output channels, requiring multiple rack slots for identical field actuator layouts. provides 16 high-density isolated open-collector channels, cutting cabinet I/O slot usage by half. Most low-channel modules share a single common isolation barrier for all output loops, while equips each channel with independent galvanic isolation to eliminate industrial EMI cross-talk, making it the preferred standard for multi-actuator power plant and chemical plant DCS bays. The two cannot be cross-replaced without recalculating total cabinet digital output channel capacity.
Q: Can operate without connecting to a SPBRC series bridge controller?No. is a passive slave I/O module without independent digital logic processing or pulse generation hardware. It relies entirely on the INFINET rack backplane bus to receive binary switching commands from SPBRC400/SPBRC410 bridge CPUs; without a matched main controller, all 16 output channels cannot generate drive signals to field actuators.
Q: Can be hot-swapped with cabinet 24VDC auxiliary power energized?Strictly prohibited. The module directly mates with the live Harmony rack backplane low-voltage logic bus; disassembly with power active will generate signal surge voltage and permanently damage internal output driver transistors and bridge CPU backplane communication circuits. Full auxiliary DC power lockout and capacitor discharge waiting time are mandatory before replacement.
Q: What warranty applies to stocked modules?Factory-new original legacy DCS digital output PCBs carry a 12-month official ABB manufacturer warranty covering all 16 open-collector output channels, galvanic isolation transformers, EMI filter circuits and front diagnostic LED indicators. Fully load-tested surplus modules provide a 6-month functional warranty; damage caused by DC bus residual voltage shock, field wiring polarity reversal, sustained over-load operation or ungrounded ESD handling voids all warranty coverage.
Q: Has ABB discontinued production?Yes, the entire ABB Bailey INFI 90 / Symphony Plus DCS platform including digital output module is fully end-of-life. New industrial and power plant distributed control system projects adopt ABB 800xA systems with S800 remote I/O modules without separate rack-slotted SPDS series output boards. is only supplied as limited-stock maintenance spare parts for legacy Harmony control room cabinet renovation.
Q: What typical faults indicate a defective module?Common failure symptoms: Permanent red FAIL LED alarm with intact field actuator wiring, random single-channel digital output loss without field cable damage, severe output signal attenuation causing incomplete relay pull-in under rated load, failure to generate switching pulses for downstream actuators, cross-channel signal crosstalk leading to unintended actuator activation, no fault log recording when field output loops short-circuit, front POWER LED fails to illuminate after rack auxiliary power restoration.
