Product Core Brief

• Model: SYN5201A-Z V277, Full OEM PN: 3BHB006714R0277
• Brand: ABB
• Series: SYNCHROTACT 5 generator synchronizing & paralleling protection device
• Core Function: Automatically matches voltage, frequency and phase angle to close generator breakers for grid parallel operation
• Product Type: Panel cutout mounted single-channel auto synchronizing unit
• Key Specs: 1–130 VAC PT signal input | 10ms paralleling command output | Ethernet TCP/IP + Modbus RTU comms
• Note: Long-term active spare lifecycle; factory sealed new assemblies and fully cyclic-tested surplus available for thermal power, hydro and co-gen plant retrofits

Key Technical Specifications

• Nominal PT measuring input range: 50–130 VAC single-phase
• Adjustable matching thresholds: Voltage difference 0.1–40%, slip frequency 0.01–6%, phase angle 1–99°
• Paralleling command pulse width: Configurable 50–990 ms, fixed 10ms core response latency
• Communication ports: 10/100BASE-T Ethernet for SynView software, RS485 Modbus RTU
• Auxiliary operating supply: 24 VDC ±10% SELV, 18 W nominal power draw
• Safety certification: IEC 61508 SIL2, IEC 60255 protection standard, CE certified
• Front enclosure rating: IP20 for control cabinet interior
• Local HMI: Monochrome LCD with status LEDs for slip, voltage, phase and fault states
• Mechanical cutout footprint: Standard SYNCHROTACT 5 horizontal panel cutout
• Operating ambient temperature: -10°C to +70°C sealed switchgear compartments
• Storage temperature range: -40°C to +85°C
• Humidity tolerance: ≤75% RH non-condensing below 55°C
• PCB coating: Standard ISA G3 conformal coating for coastal high-humidity substations
• Net assembly weight: 0.72 kg

Product Introduction

This panel-mounted synchronizing unit continuously compares generator terminal PT signals against grid reference voltage, executing closed-loop adjustment signals to excitation governors and turbine speed controllers to meet paralleling window parameters. Its fixed 10ms fast command output eliminates out-of-phase closing risks that damage generator stators, and native Ethernet access lets technicians pull event logs and adjust setpoints remotely via SynView PC software without local cabinet access.

QA & Testing SOP

1. Incoming Inspection: Cross-reference serial number against ABB power protection spare database to filter counterfeit units; inspect LCD display, Ethernet RJ45 port and PT input terminal blocks with a 10x magnifier for burn marks or pin corrosion; log serial numbers for full generator protection traceability records.
2. Live Testing: Mount the unit on a standard panel test bench paired with dual variable AC signal sources simulating generator and grid PT feeds; supply rated 24VDC auxiliary power; run a continuous 24-hour cycle test including slip deviation sweeps, phase angle window threshold checks and Ethernet event log upload validation.
3. Electrical Testing: Use a Fluke 115 insulation tester to verify ≥10MΩ isolation between PT high-potential measuring circuits and cabinet chassis ground; measure PE continuity resistance below 0.5Ω.
4. Firmware/Config Backup: Photograph front LED fault mapping and Ethernet IP DIP switch positions; record exact firmware revision printed on internal PCB silkscreen to match site existing synchronizer logic versions.
5. Final QC & Packaging: Wipe front LCD surface with static-dissipative microfiber cloth; cap Ethernet and PT input terminals with insulating dust covers; seal the unit inside a shielding ESD bag, attach a printed QC tag with full 24-hour paralleling cycle test timestamp, then pack into foam lined transit cartons.

Installation Pitfalls & Guide

❗ Firmware revision mismatch delays breaker closing logic: firmware contains updated slip detection algorithms; pairing with older V26x units creates misaligned phase window calculations and rejected parallel commands. ❗ PT wiring polarity reversal blocks all voltage matching: Swapped PT primary/secondary leads create 180° permanent phase offset, triggering continuous synchrocheck fault alarms with no valid paralleling window. ❗ Unshielded Ethernet cabling corrupts event logs: Cable runs longer than 12m without shielded twisted pair pick up breaker switching transients, causing Modbus packet loss and incomplete fault history records. ❗ ESD discharge destroys internal PT sampling ADC chips: Bare finger contact with PCB measuring traces disables voltage/frequency detection, requiring full unit replacement and 8+ hour generator outage downtime. ❗ Hot-swap energized PT inputs induces high secondary surge voltage: Pulling the unit under live cabinet power creates lethal open-circuit PT secondary spikes that damage adjacent protection relays.

4-step replacement guide

1. Pre-install: Lock out and tag cabinet 24VDC auxiliary control power breaker; isolate and short all PT secondary test links via test switch; wait 10 minutes for internal logic capacitors to fully discharge; don ESD wrist strap; capture photos of PT wiring, Ethernet cabling and IP address DIP switch layout.

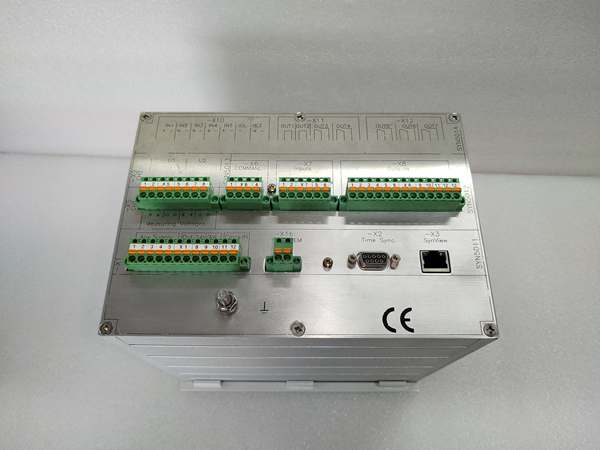

2. Removal: Disconnect all PT measuring wires and Ethernet communication cables one by one; release four panel mounting fasteners, pull the old unit straight out of the cabinet cutout without twisting rear terminal wiring harnesses.
3. Install: Set DIP switches on the new hardware to match photographed IP address values; seat the unit flush against the cabinet panel to maintain IP20 internal rating; re-terminate all PT and Ethernet wiring with OEM specified torque values, double-check PT polarity sequence.
4. Power-on Test: Restore cabinet 24VDC auxiliary power; confirm steady green RUN LED and active LCD readout; inject calibrated generator/grid PT signals to validate automatic voltage/frequency trimming; simulate near-limit slip and phase angle to confirm reliable breaker closing command output and fault log storage via Ethernet.

FAQ

Q: Can this unit operate standalone without a generator excitation/turbine governor control system? A: No. The device outputs analog trim signals to adjust generator voltage and speed; without paired governor/excitation hardware, it cannot achieve the required paralleling window parameters and will continuously block breaker close commands. Q: Is hot-swapping supported while cabinet 24VDC auxiliary power and PT circuits remain energized? A: It is not supported. Live extraction creates lethal PT secondary open-circuit voltage spikes and signal transients that corrupt internal ADC measurement circuits, risking permanent hardware failure and unprotected generator operation during replacement work. Full PT shorting and power lockout are mandatory. Q: What warranty coverage applies to stocked units? A: Factory-new original SYNCHROTACT 5 synchronizers carry a 12-month OEM warranty covering PT measurement circuits, fast paralleling relay outputs, Ethernet transceivers and LCD diagnostic displays. Load-tested surplus units come with a 6-month functional warranty. Damage from reversed PT wiring, ungrounded ESD handling or hot-swap removal voids all SIL2 certification and warranty coverage. Q: What hardware replaces this unit for new power station builds? A: New generator protection schemes use the updated V280 variant with expanded fault waveform recording and dual redundant Ethernet ports. The revision remains approved only for one-to-one maintenance replacement of pre-2023 installed synchronizing devices. Q: Will stored paralleling threshold settings be lost after full cabinet power outage? A: All voltage, slip and phase angle window parameters save to on-board non-volatile Flash memory, so power loss does not erase site-specific setpoints. Only physical DIP switch Ethernet IP configurations require manual matching after hardware swap. Q: What are the most common failure modes for a faulty unit? A: Persistent red FAULT LED with correct PT wiring, failure to send trim adjustment signals to governor/excitation hardware, delayed paralleling command output exceeding 50ms, complete loss of Ethernet SynView communication, inaccurate slip frequency measurement leading to blocked breaker closing, and blank LCD display with normal 24VDC auxiliary supply.
