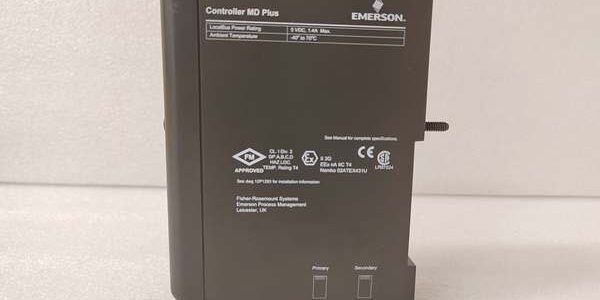

Component Snapshot At-a-Glance
- Model: KJ2003X1-BB1 (OEM catalog part VE3006)
- Alt. P/N: 12P3439X012, 12P3439X032
- Product Series: Emerson DeltaV M-Series MD Plus Controller Platform
- Hardware Type: Rack-mounted DCS primary/secondary redundant process controller CPU
- Key Feature: Onboard Local Bus regulation + native redundant hot-swap capability without rack power shutdown
- Primary Field Use: Executes PID/sequence control logic and manages rack I/O communication inside DeltaV system control cabinets
Hard-Numbers: Technical Specifications
- Protocol Support: DeltaV Local Bus, Ethernet IP, HART pass-through to downstream I/O modules
- Port Count: Internal backplane Local Bus interface; dual front-panel Ethernet for control network linking
- Baud/Data Rate: Local Bus 2Mbps fixed, Ethernet runs standard 10/100Mbps auto-negotiation
- Operating Temperature: Rated -40°C ~ +70°C; stable continuous cabinet range locked 0°C ~ +60°C
- Isolation Rating: 2500V backplane-to-front-end signal isolation per UL61010 safety standard
- Power Draw: 5VDC @1.4A max off rack backplane; total active power ~7W typical draw
- Max Supported I/O Count: Drives up to 8 M-Series terminal base I/O cards per single controller slot
- Vibration Rating: 0.5g (16Hz–150Hz), 1mm peak-to-peak below 16Hz for compressor room mounting
- Unit Weight: 0.36kg; dimension 120×100×30mm standard DeltaV rack form factor
The Real-World Problem It Solves
Older DeltaV MD controllers lack hot-replace functionality, forcing full rack power down during controller swap and triggering full-process shutdown for refining or boiler units. Unplanned outages spike production loss from offline control loops.
Where you’ll typically find it:
- Coal-fired power plant boiler control rack: Primary redundant controller managing furnace pressure and feedwater PID loops
- Refinery distillation unit cabinet: Secondary standby CPU for crude separation continuous process control
- Offshore FPSO MCC control enclosure: Rack master controller for tank gauging and pump interlock logic
Redundant pairing eliminates full rack shutdown during controller maintenance cuts unplanned downtime for critical process units.
Hardware Architecture & Under-the-Hood Logic
This module carries onboard 32-bit industrial CPU and isolated power regulation circuitry; no external daughtercards required to drive Local Bus I/O, plugs direct into DeltaV M-series rack backplane slots.
- Rear gold edge pins pull regulated 5V backplane input power and establish Local Bus data handshake with rack passive backplane traces
- Onboard DC-DC converter steps down raw rack voltage to feed internal CPU, memory and front-panel Ethernet PHY hardware
- Embedded firmware scans all downstream rack I/O cards via Local Bus every 20ms to pull analog/digital field point values
- Executes downloaded DeltaV control logic, computes PID outputs, pushes new setpoint values back out to connected field I/O modules
- Dual Ethernet ports mirror process data to plant control network for HMI display and historian data logging
Field Service Pitfalls: What Rookies Get Wrong
Improper Redundancy Sync Post-SwapNew tech swaps faulty primary controller without waiting full 3–5min sync cycle, pulls module mid-replication and corrupts secondary CPU logic memory. Partial loop dropout hits running production.
- Field Rule: Leave standby controller powered for minimum 5min after replacement before switching primary/secondary active role.
Poor Cabinet Ventilation Causing Overheat FAULT BlinkStacking multiple power supply modules tight beside blocks side vent slots; internal thermal cutoff triggers intermittent controller drop-out at cabinet ambient above 62°C.
- Quick Fix: Maintain minimum 1U vertical empty space above/below each MD Plus controller per Emerson rack layout specs.
Mismatched Firmware Rev Across Redundant PairField technicians install different DeltaV firmware versions on primary and backup controller; redundant failover locks up entire rack Local Bus on switchover event.
- Field Rule: Cross-check firmware build number via front LED status before pairing redundant units in same rack slot.
Commercial Availability & Pricing Note
Please note: The listed price is for reference only and is not binding. Final pricing and terms are subject to negotiation based on current market conditions and availability.
