Product Core Brief

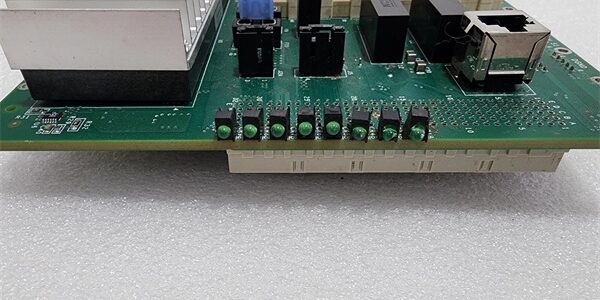

• Model: 810-800081-022 (Revision 022, Indexer Motion Driver VME Main Card; paired breakout companion 810-800082-043)
• Brand: LAM Research
• Series: VMEbus ESC Wafer Stage Indexer Master Drive PCBA for TCP9400 300mm plasma etch platforms
• Core Function: Generate high-resolution micro-stepping pulse/direction motion waveforms for electrostatic chuck rotary index stage, output buffered motion commands to the 810-800082-043 breakout board, sample stage home/limit encoder triggers, execute closed-loop stage positioning control, and exchange indexer position telemetry with the tool master VME SBC via VME64 parallel bus.
• Product Type: Single-slot VMEbus master motion driver printed circuit board assembly with rear VME edge connector and onboard motion trajectory ASIC
• Key Specs: Onboard stepper waveform generation | 1500VAC galvanic RF noise isolation | <0.7ms stage overtravel interlock fault response latency
• Condition: New Original (New Surplus); Discontinued legacy OEM spare, limited factory stock reserved for active TCP9400 300mm etch fleets.

Key Technical Specifications

• Form factor: Single slot standard VME64 card, rear VME edge connector for backplane communication
• Motion control core: Dedicated onboard ASIC for trapezoidal acceleration/deceleration indexer trajectory profiling
• Drive signal format: Buffered differential pulse + direction micro-stepping outputs routed to external breakout board
• Encoder trigger input: 5V differential A/B/Z home and hard limit position signal sampling
• VME bus communication: VME64 parallel bus, fixed 20Hz indexer position telemetry refresh rate
• Operating supply: Regulated 5V / ±12VDC VME backplane power, max 7.8W continuous power draw
• Fault detection latency: <0.7ms trip response for stage overtravel, encoder loss, and motion output short faults
• Signal isolation rating: 1500VAC reinforced galvanic isolation separating motion drive logic and VME bus circuits to suppress 13.56MHz plasma RF cross-talk
• EMI mitigation: Multi-layer segmented PCB ground planes, integrated ferrite filtering and shielded differential signal traces
• Mechanical dimensions: 230mm L × 160mm W × 25mm D; unit mass 0.42kg
• Operating ambient range: 10°C to +50°C process control cabinet; storage -40°C to +85°C, 5–95% RH non-condensing humidity limits
• Protection circuits: Per-channel ESD surge suppression, reverse polarity lockout, over-temperature auto motion output cutoff
• MTBF rating: ≥90,000 hours under continuous 24/7 high-volume fab production duty cycle
• Compliance: CE, UL, SEMI S2 safety standard certified for front-end 300mm semiconductor wafer processing equipment

Product Introduction

LAM 810-800081-022 serves as the master motion driver for Lam TCP9400 12-inch etch chamber rotary ESC index stages, working in tandem with the 810-800082-043 breakout buffer board. It calculates smooth rotary stage motion trajectories from recipe setpoints, generates clean differential stepper drive signals, and monitors all mechanical limit triggers to maintain ultra-precise wafer planarization and etch CD uniformity across every process lot.

Its core differentiator is dedicated motion ASIC trajectory generation and full galvanic plasma RF isolation. Uncertified generic substitute driver boards lack matched timing filtering and suffer RF interference, creating rotary stage jitter, inconsistent index angles, and reduced wafer yield. The unit supports controlled hot-swap service without full indexer power shutdown during scheduled preventive maintenance cycles.

Firmware/Software Versions & Upgrade Notes

• Supported Lam Process Control Software (PCS): v6.0 through v8.0; PCS v8.2 and newer releases drop native VME register handshake compatibility with this Rev 022 indexer driver hardware.
• Recommended onboard firmware revision: Factory pre-flashed Rev 022 build; older prototype firmware contains pulse timing jitter that generates inconsistent stage rotation offset across sequential production lots.
• Upgrade risk warning: Downgrading tool master VME SBC firmware below v7.2.5 breaks bidirectional indexer position telemetry polling with the driver card. Match host controller and indexer driver firmware release families before chamber PM work.
• Firmware storage location: Onboard non-volatile flash memory integrated to the main PCBA. Export all indexer rotary offset, acceleration profile, and hard limit interlock threshold values via the tool HMI before executing any firmware flash operation.
• OEM constraint: Lam Research restricts official firmware file distribution exclusively to certified fab service partners post-2023; validate local firmware archive files prior to field installation to avoid communication handshake failures.

Frequently Asked Questions

1. Can I remove this VME indexer master driver board while the process chamber remains pressurized and stage axes energized?VME buffered bus circuits prevent full loss of indexer telemetry data, but fully de-energize all ESC stage motion power supplies, vent chamber vacuum, and engage cabinet safety lockouts before extraction. Live high-frequency plasma RF noise generates transient bus interference that corrupts rotary index offset calibration values stored on the unit’s onboard flash memory. Always complete a full stage motion parameter backup via the tool HMI first.
2. Can I source a direct drop-in OEM replacement given this hardware is a legacy TCP9400 VME motion spare?Lam Research maintains limited New Surplus factory stock of the part, but third-party aftermarket refurbished assemblies use uncalibrated generic motion ASIC substitutes and omit full 13.56MHz RF noise immunity thermal cycling testing. New Surplus unopened factory stock is the only plug-and-play option; refurbished units require a full 48-hour rotary stage motion load bench calibration before installation into production etch chambers.
3. Will swapping this indexer master driver erase saved rotary stage index offsets or acceleration profile timing limits?All rotary trajectory tuning tables, home position offset calibrations, and mechanical hard-limit safety trip thresholds reside on the board’s internal flash memory. Complete a full stage motion parameter backup via the tool HMI before any swap to restore calibration data if VME handshake communication errors occur post-installation.
4. What warranty coverage comes with New Surplus OEM inventory versus refurbished units?Our New Surplus OEM stock carries a 12-month full functional warranty matching original Lam factory spare coverage. Refurbished aftermarket assemblies ship with only a 3–6 month limited warranty, as aged motion drive ASICs create unquantified risk of mid-run wafer rotary positioning drift that degrades etch critical dimension uniformity.
5. Why is New Surplus OEM hardware priced higher than aftermarket refurbished equivalents?New Surplus inventory retains factory-calibrated motion pulse timing tolerances, zero operating hour thermal fatigue on trajectory semiconductors, and full traceability to Lam’s component validation batches. Refurbished units reuse aged PCBs, generic replacement signal drivers, and skip full plasma RF interference cycling testing; hidden motion timing drift defects lead to unplanned chamber downtime with far greater total wafer scrap cost than the upfront component price difference.
6. What is the functional difference between 810-800081-022 (master driver) and 810-800082-043 (breakout buffer)?

• 810-800081-022: Master VME motion controller with onboard ASIC to generate pulse/direction motion trajectories, communicates directly to VME backplane, stores all stage calibration parameters in local flash.
• 810-800082-043: Passive buffered breakout board without trajectory logic; only amplifies and isolates motion signals from the master card to the ESC stage motor wiring, no local calibration storage.The two boards must be used as a matched set for indexer stage operation; single-board replacement requires revalidation of all rotary motion parameters.

1. What routine maintenance schedule applies to this indexer master driver in high-volume production fabs?Execute full VME signal integrity and rotary stage index trigger validation every 6 months during scheduled chamber PM cycles. Replace the complete unit after 40,000 operating hours, as onboard motion ASIC and differential signal driver ICs develop timing drift under continuous cabinet heat and 13.56MHz RF plasma exposure that degrades long-term wafer stage rotary positioning repeatability.
