Product Core Brief

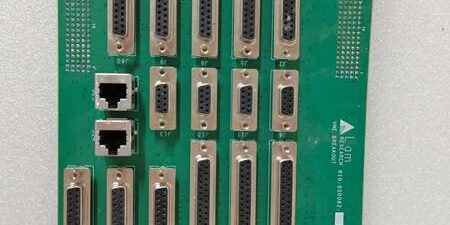

• Model: 810-800082-043 (Revision 043, VME Indexer Breakout Buffer PCB)
• Brand: LAM Research
• Series: VMEbus Motion Signal Breakout Module for TCP9400 300mm plasma etch cluster platforms
• Core Function: Act as buffered signal bridge between main VME backplane and ESC stage indexer motion hardware; distribute isolated pulse/direction motion commands, sample stage position trigger signals, filter plasma RF interference, and forward indexer telemetry to the tool master VME SBC via VME64 parallel bus.
• Product Type: Single-slot VMEbus breakout printed circuit board assembly with metal mounting bracket and DB25 field signal connector
• Key Specs: Buffered VME signal isolation | Indexer motion pulse distribution | 1500VAC galvanic noise isolation | <0.8ms motion trigger forwarding latency
• Condition: New Original (New Surplus); Discontinued legacy OEM spare, limited factory stock reserved for active TCP9400 installed 300mm etch fleets.

Key Technical Specifications

• Form factor: Single slot standard VME64 card with rear VME edge connector and front DB25 field wiring header
• Bus interface: VME64 parallel bus, 160MB/s theoretical bandwidth, fixed 20Hz indexer telemetry refresh rate
• Signal buffering: Onboard high-speed line drivers for motion pulse/direction indexer outputs
• Isolation rating: 1500VAC reinforced galvanic isolation separating field stage wiring and VME logic circuits to suppress 13.56MHz plasma RF cross-talk
• Operating supply: Regulated 5V / ±12VDC VME backplane power, max 5.3W continuous power draw
• Motion trigger latency: <0.8ms forwarding delay for ESC stage position index trigger signals
• EMI mitigation: Multi-layer segmented PCB ground planes, integrated ferrite filtering and shielded signal traces
• Mechanical dimensions: 230mm L × 160mm W × 25mm D; unit mass 0.4kg
• Operating ambient range: 10°C to +50°C control cabinet; storage -40°C to +85°C, 5–95% RH non-condensing humidity limits
• Protection circuits: Per-channel ESD surge suppression, reverse polarity lockout, short-circuit auto cutoff for field motion signal lines
• MTBF rating: ≥92,000 hours under continuous 24/7 high-volume fab production duty cycle
• Compliance: CE, UL, SEMI S2 safety standard certified for front-end 300mm semiconductor wafer processing equipment

Product Introduction

LAM 810-800082-043 serves as the dedicated indexer signal breakout buffer for Lam TCP9400 12-inch etch chamber electrostatic chuck stage hardware. It isolates sensitive VME motion bus signals from high-noise plasma chamber wiring, distributing clean pulse/direction motion commands to the wafer stage indexer while feeding back precise position trigger telemetry to the tool master controller for consistent wafer planarization and etch uniformity control.

Its core differentiator is integrated signal buffering and full galvanic RF noise isolation. Unbuffered generic substitute breakout boards pick up high-amplitude chamber plasma RF interference that creates stage position jitter and inconsistent index triggering, leading to wafer placement offset and reduced production yield. The unit supports controlled hot-swap service without full indexer power shutdown during scheduled preventive maintenance cycles.

Firmware/Software Versions & Upgrade Notes

• Supported Lam Process Control Software (PCS): v6.2 through v8.1; PCS v8.3 and newer releases drop native VME register handshake compatibility with this Rev 043 breakout hardware.
• Onboard firmware note: This breakout board contains minimal configuration flash for signal channel mapping; factory pre-flashed Rev 043 firmware optimized for TCP9400 indexer axis timing.
• Upgrade risk warning: Downgrading tool master VME SBC firmware below v7.3.0 breaks bidirectional indexer telemetry polling with the breakout card. Match host controller and breakout board firmware release families before chamber PM work.
• Firmware storage location: Small onboard non-volatile flash memory integrated to the main PCBA. Export all indexer axis trigger offset parameters via the tool HMI before executing any firmware flash operation.
• OEM constraint: Lam Research restricts official firmware file distribution exclusively to certified fab service partners post-2023; validate local firmware archive files prior to field installation to avoid communication handshake failures.

Frequently Asked Questions

1. Can I remove this VME indexer breakout board while the process chamber remains pressurized and stage axes energized?VME buffered bus circuits prevent full loss of indexer telemetry data, but fully de-energize all ESC stage motion power supplies, vent chamber vacuum, and engage cabinet safety lockouts before extraction. Live high-frequency plasma RF noise generates transient bus interference that corrupts indexer trigger offset calibration values stored on the unit’s onboard flash memory. Always complete a full stage motion parameter backup via the tool HMI first.
2. Can I source a direct drop-in OEM replacement given this hardware is a legacy VME spare?Lam Research maintains limited New Surplus factory stock of the part, but third-party aftermarket refurbished assemblies use uncertified generic line buffer ICs and omit full 13.56MHz RF noise immunity thermal cycling testing. New Surplus unopened factory stock is the only plug-and-play option; refurbished units require a full 48-hour indexer motion signal load bench calibration before installation into production etch chambers.
3. Will swapping this breakout board erase saved stage index trigger offsets or motion gate timing limits?All indexer axis trigger offset calibration and motion gating timing tables reside on the board’s internal flash memory. Complete a full stage motion parameter backup via the tool HMI before any swap to restore calibration data if VME handshake communication errors occur post-installation.
4. What warranty coverage comes with New Surplus OEM inventory versus refurbished units?Our New Surplus OEM stock carries a 12-month full functional warranty matching original Lam factory spare coverage. Refurbished aftermarket assemblies ship with only a 3–6 month limited warranty, as aged signal buffer ICs create unquantified risk of mid-run wafer stage positioning drift that degrades etch CD uniformity.
5. Why is New Surplus OEM hardware priced higher than aftermarket refurbished equivalents?New Surplus inventory retains factory-calibrated signal channel timing tolerances, zero operating hour thermal fatigue on buffer semiconductors, and full traceability to Lam’s component validation batches. Refurbished units reuse aged PCBs, generic replacement line drivers, and skip full plasma RF interference cycling testing; hidden signal timing drift defects lead to unplanned chamber downtime with far greater total wafer scrap cost than the upfront component price difference.
6. Does this Rev 043 VME breakout board support all Lam legacy plasma etch chamber platforms?This single-slot VME variant only integrates exclusively with 300mm etch main VME rack indexer subrack assemblies. No cross-compatibility exists with older 200mm etch fleets, as VME register mapping and DB25 field signal pinouts differ entirely.
7. What routine maintenance schedule applies to this indexer breakout buffer in high-volume production fabs?Execute full VME signal integrity and index trigger validation every 6 months during scheduled chamber PM cycles. Replace the complete unit after 42,000 operating hours, as onboard signal buffer ICs develop timing drift under continuous cabinet heat and 13.56MHz RF plasma exposure that degrades long-term wafer stage positioning repeatability.
