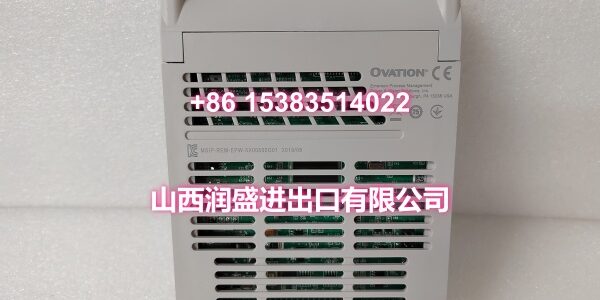

Product Core Brief

• Model: 5X00500G01
• Brand: Emerson (Ovation System)
• Series: Ovation DCS Safety I/O Subsystem
• Core Function: Safety-rated digital output module that converts safety-critical control signals from the Ovation DCS into relay actions — designed for emergency shutdown (ESD), safety interlock, and safety instrumented function (SIF) applications where reliable, fail-safe output is mandatory.
• Product Type: Ovation DCS Safety-Rated Digital Output Module (DO)
• Key Specs: 8 Independent Safety Channels | SIL 3 (IEC 61508) | Form A Relay Outputs | ≤5ms Response Time | 2500Vrms Channel-to-Channel Isolation | 24V DC Redundant Power | Hot-Swappable | -40°C to +70°C Operating Range
• Condition: New Original / New Surplus

Key Technical Specifications

• Module Model: 5X00500G01 (Safety-Rated Digital Output Module)
• Safety Integrity Level: SIL 3 certified per IEC 61508 — suitable for the most demanding safety instrumented functions in power generation, chemical processing, and other critical infrastructure applications
• Output Type: Form A relay outputs (SPST — Single Pole Single Throw), normally open, spring-return fail-safe design
• Channel Quantity: 8 independent safety channels per module, each individually configurable and diagnosable
• Contact Rating:
  • Maximum voltage: 250V AC / 30V DC
  • Maximum current: 5A resistive load, 2A inductive load per channel
• Response Time: ≤5ms from controller command to relay action — critical for meeting SIF response time budgets in ESD applications
• Electrical Isolation:
  • Channel-to-channel: 2500Vrms
  • Channel-to-chassis: 5000Vrms
  • Prevents ground loops and noise coupling between safety circuits
• Relay Life:
  • Mechanical life: ≥10 million operations (no load)
  • Electrical life: ≥1 million operations (full load)
• Power Supply: 24V DC with redundant inputs (19.2–28.8V range) — module continues operating on either power feed if one supply fails
• Power Consumption: ~12W module base + relay load power (varies with number of energized outputs)
• Operating Temperature: -40°C to +70°C — wide range supports harsh industrial environments including outdoor ESD panels and unheated control rooms
• Storage Temperature: -40°C to +85°C
• Humidity: 5%–95% non-condensing
• Protection Class: IP20 (front panel)
• Physical Dimensions: 150mm (W) × 130mm (H) × 80mm (D)
• Weight: ~1.0kg

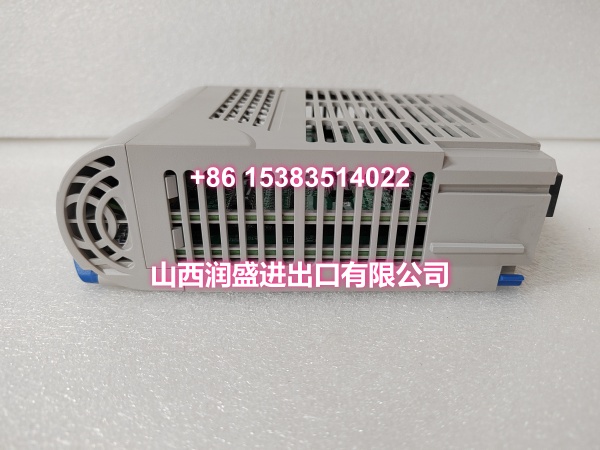

• Mechanical: Standard Ovation 5X-series form factor with blue locking lever; plugs into Ovation I/O rack slots; hot-swappable without disturbing adjacent modules
• Standards Compliance: IEC 61508 SIL 3; part of the Emerson Ovation safety I/O subsystem

Product Introduction

The 5X00500G01 is Emerson’s safety-rated digital output module for the Ovation distributed control system. While standard DO modules handle routine on/off control (pump start/stop, valve open/close, indicator lights), the 5X00500G01 is built for a fundamentally different job: executing safety-critical shutdown commands where failure is not an option.

In a power plant, chemical facility, or any process operation with hazardous energy, the safety instrumented system (SIS) is the last line of defense. When a high-pressure condition is detected, a temperature exceeds safe limits, or an emergency stop is initiated, the SIS must reliably trip the associated equipment — closing isolation valves, stopping pumps, de-energizing breakers — within a defined time window. The 5X00500G01 is the module that physically executes those commands. Its SIL 3 certification per IEC 61508 means it has been independently assessed to meet the rigorous reliability and diagnostic coverage requirements for high-demand safety applications.

The module uses eight Form A (SPST, normally open) relay outputs. In a safety application, the relay is typically energized during normal operation — keeping a valve open or a breaker closed. If the controller detects a hazard, it de-energizes the relay, and the spring-return mechanism drives the output to its safe state. This “de-energize to trip” design ensures that a power loss, wire break, or module failure will also drive the output to safety — a core principle of fail-safe design.

With a ≤5ms response time from command to relay action, the 5X00500G01 helps you meet tight SIF response time budgets. The 2500Vrms channel-to-channel and 5000Vrms channel-to-chassis isolation prevent noise coupling and ground loops from compromising safety circuits. And with a mechanical life of ≥10 million operations and electrical life of ≥1 million operations at full load, the relays are rated for the long haul — even in applications with frequent proof testing.

For system integrators and safety engineers, the 5X00500G01 integrates seamlessly into the Ovation safety architecture. It accepts 24V DC redundant power, supports hot-swapping for online replacement during proof tests or maintenance, and operates across a -40°C to +70°C temperature range — making it suitable for both control room and field-mounted ESD panels.

Bottom line: if you’re building or maintaining a SIL-rated safety loop in an Ovation DCS environment, the 5X00500G01 is the safety DO module you spec.

QA & Testing SOP

Safety modules carry a higher burden of proof — a failed safety output can mean the difference between a controlled shutdown and a catastrophic event. Our validation protocol goes beyond standard I/O testing:

1. Physical & Anti-Counterfeit Inspection: We verify the OEM chassis integrity, check for authentic Emerson labeling and correct part number (5X00500G01), and inspect the backplane connector pins and relay housing for damage or signs of prior use.
2. Power-On Self-Test (POST): The module is seated in an OEM Ovation rack and powered with 24V DC. We verify that the POST completes successfully, with no hardware fault LEDs illuminated.
3. Redundant Power Test: We verify that the module operates correctly on each of its two redundant 24V DC power feeds independently — confirming that a single power supply failure will not take the module offline.
4. Channel Relay Action Test: We individually energize and de-energize each of the 8 relay outputs and verify correct operation using a multimeter — confirming that each relay closes when commanded and opens (fails safe) when de-energized.
5. Response Time Verification: We trigger a simultaneous command to all 8 channels and measure the time from command issuance to relay contact closure, verifying that response time is within the ≤5ms specification.
6. Isolation Test: We perform a hi-pot test to verify channel-to-channel (2500Vrms) and channel-to-chassis (5000Vrms) isolation meets specification — ensuring no leakage or breakdown between circuits.
7. Diagnostic Coverage Test: We simulate common failure modes (open circuit, short circuit, power loss) and verify that the module’s built-in diagnostics correctly detect and report each fault to the Ovation controller.
8. Hot-Swap Verification: We remove and reinsert the module while the rack is powered and verify that adjacent modules remain unaffected and that the module re-registers with the controller correctly after reinsertion.
9. Anti-Static Packaging: After validation, the module is sealed in industrial-grade ESD shielding bags with connector protectors installed for transit.



Installation Pitfalls & Guide

Safety module installation mistakes can compromise the integrity of an entire safety loop. These are the critical traps to avoid:

• ❗ Fail-Safe Wiring: The 5X00500G01 uses Form A (normally open) relays. In a safety application, the relay should be energized during normal operation and de-energized to trip. Wiring the relay in the opposite configuration (de-energized = normal, energized = trip) defeats the fail-safe principle — a power loss or wire break would prevent the safety function from executing. Always wire safety outputs in the “de-energize to trip” configuration.
• ❗ SIL Loop Verification: Installing a SIL 3 module does not automatically make the entire safety loop SIL 3. The PFD (probability of failure on demand) of the entire SIF — including sensors, logic solver, and final elements — must be calculated and verified. The 5X00500G01’s SIL 3 certification applies to the module itself; the loop-level SIL rating depends on the complete system design.
• ❗ Proof Testing: Safety outputs should be proof-tested at intervals defined by your SIF proof test procedure. During proof testing, verify that each relay correctly actuates and that the associated field device (valve, breaker, etc.) responds as expected. Document all proof test results for regulatory compliance.
• ❗ Load Rating Compliance: Each channel is rated for 5A resistive or 2A inductive load. Exceeding these ratings will prematurely wear the relay contacts and can cause welded contacts — a dangerous failure mode where the relay cannot open when commanded. For loads exceeding 2A inductive, use an interposing relay between the 5X00500G01 and the field device.
• ❗ Redundant Power Wiring: The module accepts redundant 24V DC power inputs. Both power feeds should be wired to independent power sources (e.g., two separate 24V DC supplies or two branches of a redundant power system). Wiring both feeds to the same power source defeats the redundancy and creates a single point of failure.
• ❗ Firmware Compatibility: The 5X00500G01 must run firmware compatible with your Ovation controller’s OS version. A firmware mismatch can prevent the module from registering with the controller or cause diagnostic communication failures. Verify firmware compatibility before installation.
• ❗ Hot-Swap During Safety Operations: While the module supports hot-swapping, removing a safety DO module from a live rack will cause all 8 channels to go to their fail-safe (de-energized) state — potentially tripping connected equipment. For safety-critical applications, coordinate module replacement with process operations and ensure that the affected safety loops are in a safe state before removal.

Replacement Procedure:

1. Pre-Install: Back up the Ovation controller’s I/O configuration. Verify that the replacement module has compatible firmware. Notify process operations that the safety outputs on this module will be temporarily unavailable. If possible, bypass or isolate the affected SIFs per your plant’s safety procedures.
2. Removal: Open the blue locking lever on the existing module and remove it from the rack slot. All 8 relay outputs will de-energize (fail safe) immediately upon removal.
3. Install: Insert the new 5X00500G01 into the same rack slot, ensuring it mates correctly with the backplane connector. Close the blue locking lever. The module will power up and begin its POST sequence.
4. Registration & Test: Wait for the module to register with the Ovation controller (indicated by the status LEDs). Verify that the controller shows the module as healthy and that all 8 channels are recognized. Perform a channel-by-channel test to verify that each relay actuates correctly and that the associated field device responds as expected. Restore any bypassed SIFs to normal operation.



Technical FAQ

What’s the difference between the 5X00500G01 and a standard Ovation DO module? The 5X00500G01 is a safety-rated module certified to SIL 3 per IEC 61508, with built-in diagnostic coverage, fail-safe relay design, and independent assessment for use in safety instrumented functions. A standard Ovation DO module is designed for routine process control and does not carry a SIL rating — it should not be used in safety loops where SIL certification is required.

Can the 5X00500G01 be used in non-safety applications? Yes. While the module is designed and certified for safety applications, it can also be used for standard digital output control. However, given its higher cost compared to standard DO modules, it’s typically reserved for safety-critical loops where SIL certification is mandatory.

What does SIL 3 mean in practical terms? SIL 3 (Safety Integrity Level 3) per IEC 61508 means the module has a very low probability of failure on demand (PFD) — in the range of 10⁻⁴ to 10⁻³. It also means the module has extensive built-in diagnostics that can detect a high percentage of dangerous failures. SIL 3 is suitable for high-demand and continuous-mode safety applications where a failure could result in serious injury or major equipment damage.

How often should the 5X00500G01 be proof-tested? The proof test interval is determined by your SIF design and the required PFD for the safety loop. Typical proof test intervals for SIL 3 applications range from 3 months to 1 year, depending on the module’s PFD contribution and the overall SIF architecture. Consult your safety requirements specification (SRS) for the specific interval.

Is the 5X00500G01 compatible with older Ovation racks? The 5X00500G01 uses the standard Ovation 5X-series form factor and is compatible with Ovation I/O racks. However, verify that your rack’s backplane version and controller firmware are compatible with the safety I/O subsystem. Older WDPF racks may require adapter hardware or may not support safety-rated modules.

Do you offer volume pricing for plant safety spare modules? Yes. Safety modules are critical spare parts for any Ovation DCS installation with SIL-rated loops. We offer flexible pricing tiers for bulk orders. Contact our sales team with your required quantity for a competitive quote.
