Field Engineer’s Notes (From the Trenches) The “Gotcha” is Termination & DP-V1 Expectations. Termination: The PBM200 typically has a slide switch or DIP for bus termination. If this is the first or lastdevice on the copper daisy chain, it must be ON (150 Ohm). If it’s in the middle, OFF. Forgetting termination causes signal reflections;…

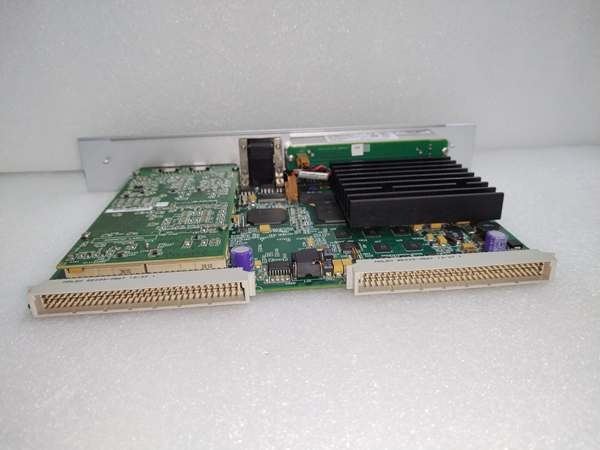

Field Engineer’s Notes (From the Trenches) The “Gotcha” is Battery Replacement & Program Store. Battery (IC698ACC701): The willlose its program if the battery dies AND power is lost. The “BAT LOW” LED illuminates ~30 days before failure, but it’s often ignored in PM rounds. Rule: Replace the battery with power ON during a scheduled downtime.…
Customer Value & Operational Benefits Mixed TC Types on One Block You aren’t locked into “All J-Type.” On one ALG630, you can set Channel 1 to J-Type (Exhaust Stack), Channel 2 to K-Type (Bearing), Channel 3 to S-Type (Furnace Hearth), and Channel 4 to mV (Custom Pyrometer). This mixes signals on a single $600 block,…
Field Engineer’s Notes (From the Trenches) The “Gotcha” is Torque and Wire Prep. Torque: 7 lb-in (0.79 Nm) is specific. Do not use a “gorilla grip” #2 Phillips. You will strip the head or splay the brass terminal insert, causing a high-resistance connection that heats up under load (common on 24V DC solenoid returns). Use…
Customer Value & Operational Benefits Deterministic Scan Times (Offloaded Stack) The 200MHz co-processor is the selling point. In a RX7i running a complex batch sequence, if the CPU also had to parse TCP/IP headers for 50 SRTP connections, the scan time would vary (jitter) under load. The ETM001 handles the socket management and packet assembly.…

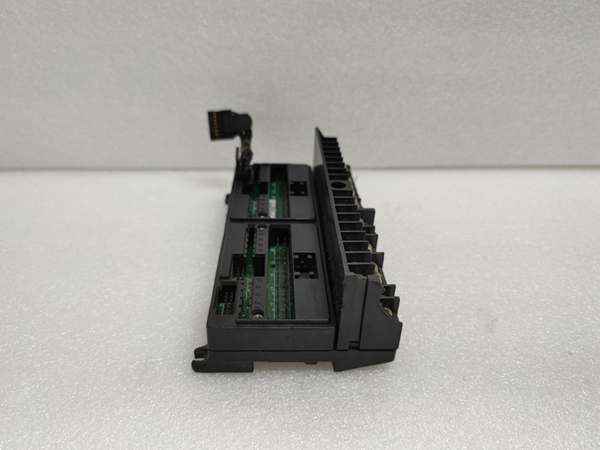

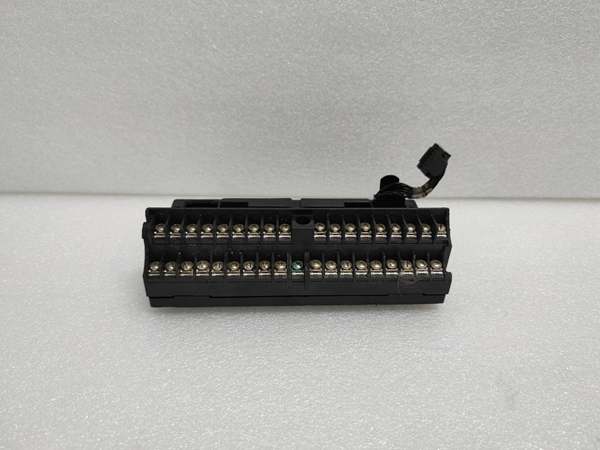

Quick Sizing & Sourcing Snapshot Manufacturer: GE Fanuc (Emerson Machine Automation) Part Number: IC670CHS001 System Platform: GE Fanuc Field Control I/O System Hardware Type: Barrier-Style I/O Terminal Base (Carrier) Architectural Role: Serves as the field-wiring interface and mechanical mounting base for up to two Field Control I/O modules (e.g., IC670ALGxxx, IC670MDLxxx), distributing 24V DC power…
Quick Sizing & Sourcing Snapshot Manufacturer: GE Fanuc (Emerson Machine Automation) Part Number: IC697BEM731 System Platform: Series 90-70 PLC / PACSystems RX7i Hardware Type: Bus Controller Module (Single-Port Genius Bus) Architectural Role: Plugs into the VME backplane of a 90-70 CPU rack to act as the master interface for a Genius Bus network, communicating with…

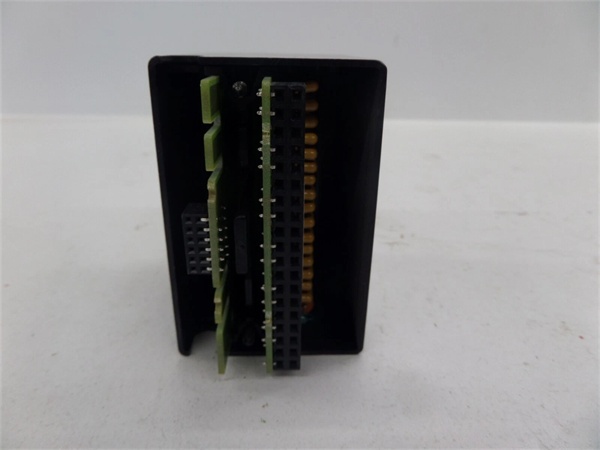

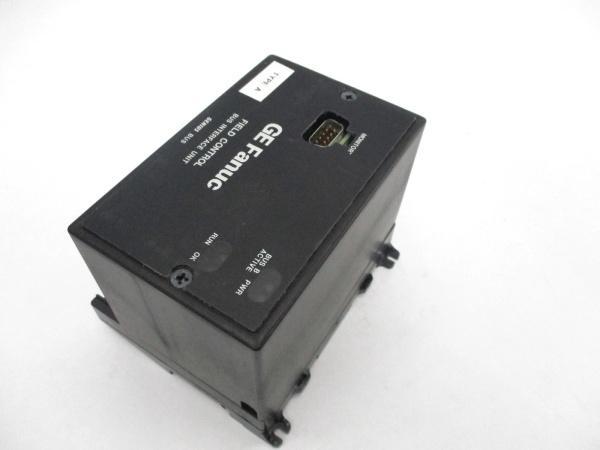

Quick Sizing & Sourcing Snapshot Manufacturer: GE Fanuc (Emerson Machine Automation) Part Number: IC670GBI002 System Platform: GE Fanuc Field Control / Genius I/O System Hardware Type: Bus Interface Unit (BUI – Head Module) Architectural Role: Acts as the “Head” of a Field Control I/O station, mounting on a Terminal Block to link up to 8…
Quick Sizing & Sourcing Snapshot Manufacturer: GE Fanuc (Emerson Automation) Part Number: IC200PBI001 System Platform: GE PACSystems RX3i Hardware Type: PBI (Profibus DP Master Interface Module) Architectural Role: Installs in the RX3i universal backplane; acts as the Class 1 Master on a Profibus DP network, controlling up to 125 slaves (drives, remote I/O, instruments) and…
Customer Value & Operational Benefits Group Isolation for Mixed Sources The biggest practical advantage of the is the two isolated groups. We frequently use Group A for “Clean” 240V AC signals (like panel lamp test switches) and Group B for “Noisy” 240V AC (like contacts switching inductive loads, e.g., solenoid valves or starter coils).…
