Product Core Brief
- Model: PCD235A101 3BHE032025R0101
- Brand: ABB
- Series: Excitation System Control
- Core Function: Controls generator excitation systems to maintain stable output voltage.
- Product Type: Excitation Control Module
- Key Specs: Programmable Logic | High-Precision Measurement | 1.53 kg
- Condition: New Original / New Surplus

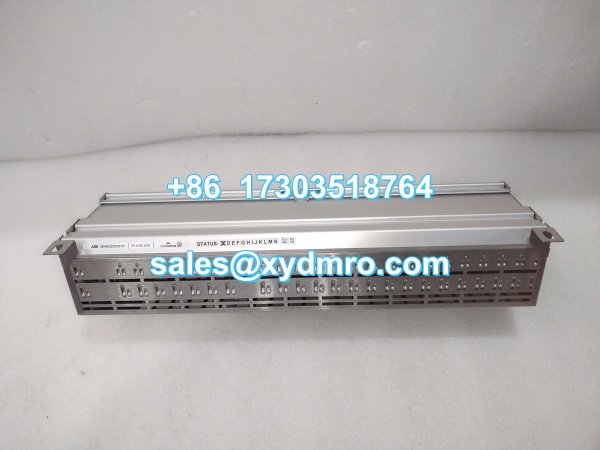

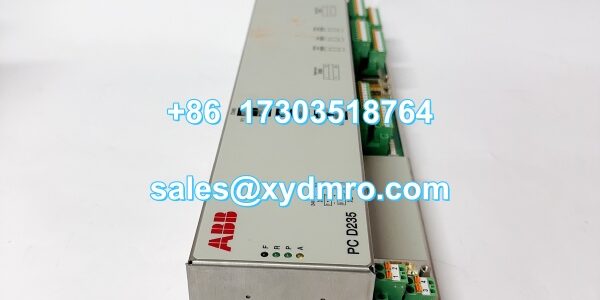

PCD235A101
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Product ID | 3BHE032025R0101 |
| Module Type | Excitation Control / Programmable Logic |
| Measurement | High-Precision Voltage/Current |
| Protection | Overload & Short Circuit |
| Net Weight | 1.53 kg |
| Dimensions | 373 x 142 x 73.5 mm |
| Input Range | Wide Voltage Input |
| Signal Type | Digital Control / Analog Feedback |
| Mounting | Backplane / Rack Mount |
| Application | Power Plants, Hydro, Wind, Steel |
Product Introduction (No Fluff)
This module serves as the digital brain for generator excitation systems, utilizing advanced control algorithms to regulate magnetic field strength. It continuously measures voltage and current, executing programmable logic to ensure stable power output across varying load conditions.
Replacing a failing unit with a verified restores precise voltage regulation and prevents costly grid instability. Its built-in diagnostic capabilities simplify maintenance, reducing downtime and extending the operational life of your generation assets.
QA & Testing SOP (Dynamic & Transparent)
We don’t just “power it on.” Every undergoes a specific validation protocol before it leaves our bench:
- Anti-Counterfeit Verification: We inspect PCB silkscreen, solder mask color, and IC date codes against OEM manufacturing standards. Counterfeit excitation boards are a known risk; we reject anything with re-marked chips.
- ESD & Visual Inspection: Boards are handled only in grounded ESD zones. We check for cold solder joints, lifted pads, or corrosion on high-current drive traces, which are high-stress points.
- Signal Injection Test: Using calibrated test equipment, we inject logic commands and analog signals to verify measurement accuracy and output switching thresholds. We confirm the module tracks linearly without hysteresis.
- Thermal Soak: The module runs under simulated load for 4 hours. We monitor internal regulators with a Fluke thermal probe to ensure no components exceed 85°C, indicating failing capacitors or stressed MOSFETs.
- Final Packaging: Units are sealed in anti-static shielding bags with desiccant, then boxed in rigid foam to prevent backplane connector damage during transit.
PCD235A101
Installation Pitfalls & Guide (Engineer to Engineer)
Ground Loop Trap: This module handles sensitive analog measurement signals. If you ground the shield at both the controller and the exciter, you will introduce noise that mimics a failing sensor. Ground at the controller end only.
Backplane Pin Damage: The 373mm length creates leverage. Never force the card into the slot. If it doesn’t slide in with thumb pressure, pull it out and inspect the backplane pins. Bent pins here are the #1 cause of “new part DOA” tickets.
Power Supply Sizing: When powering up, the excitation winding can draw significant inrush. Ensure your control power supply is sized for at least 1.5x the steady-state load, or the may brown out during the initial field flash.
Replacement SOP:
- Pre-Install: Record all DIP switch/jumper settings from the old board. Verify control power is OFF and locked out.
- Removal: Remove mounting screws before pulling the card. Inspect the backplane connector for carbon tracking.
- Install: Align guides carefully. Seat fully, then torque screws to spec. Do not overtighten; this cracks the PCB.
- Power-On Test: Apply control power first. Verify diagnostic LEDs indicate normal status before closing the field breaker.
Technical FAQ
Q: Can I hot-swap this excitation module during operation?
A: Absolutely not. The backplane architecture lacks the isolation required for live insertion. You must trip the generator offline and discharge the excitation field before touching this card. Hot-swapping will fry the output stage and likely damage the backplane.
Q: Is the 3BHE032025R0101 suffix critical for compatibility?
A: Yes. The suffix denotes the firmware version and hardware revision. While a lower suffix might physically fit, the internal control loops may differ. Always match the full part number unless your OEM explicitly approves a cross-reference.
Q: Why does pricing vary so much for this specific model?
A: Excitation control modules are low-volume, high-criticality parts. Pricing reflects the cost of holding inventory for years and the rigorous testing we perform. If a price looks too good to be true, it’s likely a pulled, untested unit or a counterfeit. We price based on verified, bench-tested stock.
Q: What warranty do you provide on surplus stock?
A: We offer a standard 12-month warranty against manufacturing defects and DOA. This isn’t a “no questions asked” return policy; it covers functional failure under normal operating conditions. If you blow it up by ignoring the grounding pitfall above, that’s on you.
Q: Is this module still supported by the OEM?
A: The excitation platform is mature. While new factory production may be limited, remains a critical spare for existing fleets. We maintain stock specifically for plants that cannot justify a full system retrofit. Think of us as your lifecycle extension.
