Product Core Brief
- Model: ABB PM633 3BSE008062R1
- Brand: ABB
- Series: Advant Controller 160
- Core Function: High-availability central processing with integrated redundancy voting.
- Product Type: Processor Module
- Key Specs: Integrated Redundancy Voter | 24 Vdc Input | 2.04 kg Weight
- Condition: New Surplus / Refurbished
Product Introduction

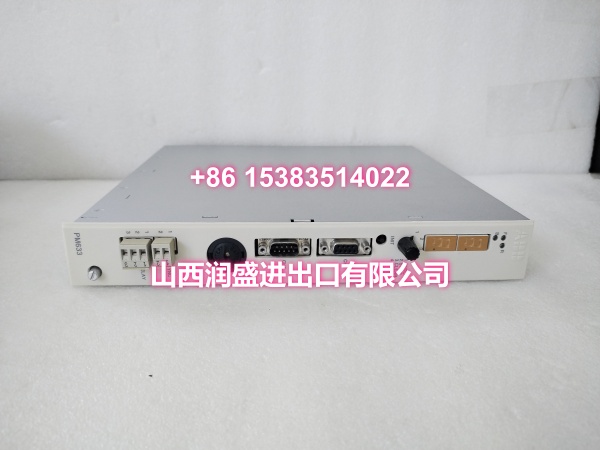

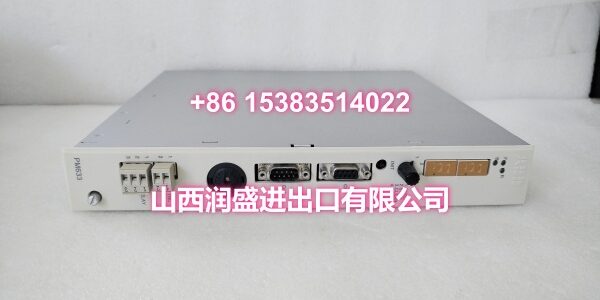

ABB 3BSE008062R1 serves as the high-availability brain for Advant Controller 160 systems. This industrial automation unit executes critical logic while managing hot-standby failover automatically.
The replacement module integrates a hardware redundancy voter for millisecond-level switchover. It operates on 24 Vdc and withstands temperatures up to +60°C, ensuring uptime in harsh environments.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Redundancy Type | Integrated Hardware Voter |
| Input Voltage | 24 Vdc (±10%) |
| Product Weight | 2.04 kg |

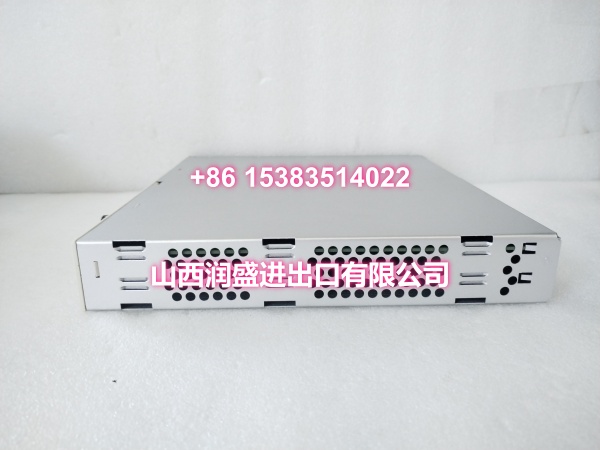

| Dimensions (LxWxH) | 252 mm x 273 mm x 40 mm |
| Product Series | Advant Controller 160 |
| Software Platform | Advant OCS Master SW V2.2 |
| Communication | High-Speed Link (HSL) |
| Application | Critical Process Control |
Quality Control Process
We verify every ABB 3BSE008062R1 through a rigorous five-step protocol. First, technicians inspect the PCB for oxidation or capacitor leakage. Next, we perform a Power-On Self-Test (POST) in a test rack.
Third, a Fluke multimeter checks input ripple below 5%. Fourth, we validate the redundancy voter logic and firmware versions. Finally, we seal the unit in anti-static packaging with bubble cushioning.
Replacement Pitfall Guide
❗ Firmware Mismatch: Never assume identical models share firmware. Advant OCS V2.2 versions are sensitive; mismatches cause “Hardware Mismatch” faults. Always photograph the old label first.
❗ Redundancy Jumper Errors: This OEM controller uses rear jumpers for voter configuration. I once saw a system fail to sync because an engineer ignored these settings. Photograph them before removal.
❗ High-Speed Link Integrity: Old HSL cables often have oxidized connectors. Check termination resistors before energizing this industrial automation unit. Bad terminations cause silent data corruption.
❗ ESD Negligence: These boards are static-sensitive. Touching gold fingers without a wrist strap causes intermittent voter failures. Keep these in mind and you’ll cut 90% of rework time.
Compatibility Matrix & Benchmarks
| Original Model | Replacement / Successor Model | Compatibility Level | Migration Notes |
|---|---|---|---|
| 3BSE008062R1 | PM665 | Needs Adaptation | Different voter architecture; requires reconfiguration. |
| 3BSE008062R1 | (New Surplus) | Direct | Verify firmware and jumper settings match exactly. |
- Failover Benchmark: Hardware voter ensures <10 ms switchover time.
- Power Draw: Operates efficiently on 24 Vdc with redundant load sharing.
