Product Core Brief

• Model: PXI-1031
• Brand: National Instruments (NI)
• Series: PXI Chassis
• Core Function: Provides a compact, low-noise 4-slot 3U PXI platform for integrating measurement, control, and data acquisition modules.
• Product Type: 3U PXI Chassis
• Key Specs: 4 Slots | 3U Form Factor | Auto/High-Temp Fan Control | CompactPCI Compatible
• Condition: New Original (New Surplus)

Product Introduction

NI is a versatile 4-slot, 3U PXI chassis designed by National Instruments for engineers and scientists working in office, laboratory, and teaching environments. This unit serves as a foundational platform for building automated test and measurement systems, supporting a wide variety of 3U PXI and CompactPCI modules.

Unlike high-power industrial racks, the emphasizes a low-noise design to maintain a quiet working environment. It features an intelligent automatic and high-temperature fan speed control system, which dynamically adjusts cooling to ensure optimal operating temperatures and extend module lifespan. It is ideal for integrating DAQ boards, digital I/O, and communication interfaces into complex measurement setups.

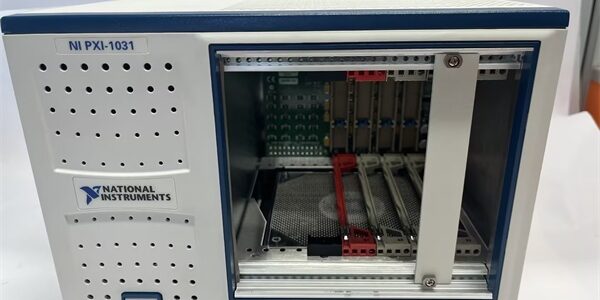

NI PXI-1031

Key Technical Specifications

Quality Control Process (Engineer’s Perspective)

1. Incoming Verification: We trace source serial numbers against factory records. Visual inspection checks for backplane connector pin damage, chassis dents, and fan filter cleanliness.
2. Live Functional Test: Power-on self-check runs first. We verify backplane communication, fan speed control functionality, and run continuous load tests >24 hrs with temp logging.
3. Electrical Parameter Test: Insulation resistance gets tested at 500 V Megger (>10 MΩ required). Ground continuity and power rail stability (+3.3V, +5V, +12V, -12V) are mandatory.
4. Cooling Verification: Verify that the automatic fan control ramps up appropriately under simulated thermal load. Ensure the dust filter is clean and unobstructed.
5. Final QC & Packaging: Seal in anti-static bag. Apply QC Passed label with test date and engineer initials.

Replacement Pitfall Guide

❗ Laptop Connectivity Limitations: The is a legacy PXI chassis. If connecting via a laptop, it strictly requires an ExpressCard interface (e.g., PXI-8360). Modern Thunderbolt remote control modules (like the PXIe-8301) are incompatible with this non-Express chassis.

❗ Software/Driver Confusion: The is merely a chassis (a PCI bus extension). It does not require specific chassis drivers, but you must ensure your NI-DAQmx or LabVIEW version supports the specific I/O modules plugged into it. Check the readme.html under “Supported Devices.”

❗ Power Budget Exceeded: The combined loading on the +5 VDC and +3.3 VDC rails must not exceed 112 W (or 145.6 W total for AC applications). Calculate your module power draw carefully to prevent overcurrent shutdowns.

❗ Thermal Management: The chassis provides 25 W of cooling per slot. Ensure high-power modules are placed in appropriate slots and that the chassis is kept in a well-ventilated area away from direct sunlight.

❗ ESD Damage: Use anti-static mat and wrist strap. Always follow proper hot-plugging procedures (if supported by your specific modules) to avoid damaging the backplane.

Keep these in mind and you’ll cut 90% of rework time.

NI PXI-1031

Compatibility Matrix & Benchmarks

• → PXI-1031DC : Needs Adaptation — DC-powered variant, verify power supply setup
• → PXI-1033 : Needs Adaptation — 5-slot variant with integrated controller
• → PXIe-1062 : Incompatible — PXI Express chassis, different backplane architecture

Benchmarks:

• Scan Cycle: Dependent on inserted DAQ modules (Hardware-timed)
• Comms Throughput: Standard PCI Bus (via system controller)
