Product Core Brief
- Model: PCIe-6321
- Brand: National Instruments (NI)
- Series: NI X Series Multifunction DAQ
- Core Function: Delivers high-precision, simultaneous analog I/O, digital I/O, and counter/timer functions for PCI Express systems.
- Product Type: Multifunction I/O Device (DAQ)
- Key Specs: 16 AI (16-Bit, 250 kS/s) | 2 AO | 24 DIO | 4 Counters | PCIe Bus
- Condition: New Original (New Surplus)
- ✅ Status: Active – Direct Replacement for PCI-6221
Product Introduction
The NI PCIe-6321 is a high-performance, multifunction I/O device from the X Series family, engineered to be the direct successor to the legacy PCI-6221. Built on the advanced NI-STC3 timing and synchronization engine, it provides superior performance, independent analog and digital timing engines, and retriggerable measurement tasks that far exceed previous M Series capabilities.
At its core, the PCIe-6321 features 16 analog input channels (8 differential or 16 single-ended) with 16-bit resolution and a 250 kS/s sampling rate per channel. It also provides 2 analog output channels (16-bit, up to 900 kS/s), 24 bidirectional digital I/O lines, and four 32-bit counter/timers. This enhanced architecture makes it the ideal upgrade path for systems requiring higher channel throughput, better timing precision, and future-proof PCIe connectivity for applications in automated test, control, and data logging.

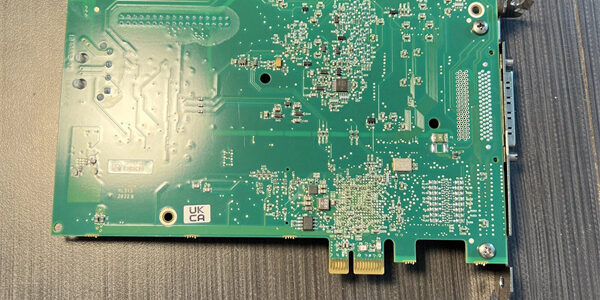

NI PCIE-6321
Key Technical Specifications
| Parameter | Value |
|---|---|
| Module Type | Multifunction I/O Device (DAQ) |
| Bus Interface | PCI Express |
| Analog Input | 16 SE / 8 Diff, 16-Bit, 250 kS/s/ch |
| Analog Output | 2 Channels, 16-Bit, 900 kS/s |
| Digital I/O | 24 Bidirectional Lines |
| Counters/Timers | 4x 32-Bit |
| Input Range | ±0.2 V, ±1 V, ±5 V, ±10 V |
| Output Range | ±10 V |
| Driver Support | NI-DAQmx |
| Connector | 68-Pin VHDCI (via SHC68-68-EPM cable) |
| Certifications | CE, IEC 61010-1 |
Quality Control Process (Engineer’s Perspective)
We don’t just box these and ship them. Here is our actual bench test workflow.
- Incoming Verification: We verify the serial number against NI traceability records. A visual inspection checks for bent pins on the PCIe edge connector and the 68-pin VHDCI connector, ensuring no physical damage or corrosion.
- Live Functional Test: We mount the unit in a live PCIe test system. We verify that NI MAX correctly enumerates the device and passes the self-test, confirming all AI, AO, DIO, and counter channels are accessible.
- Analog Accuracy Test: Using a precision voltage calibrator and DMM, we verify DC accuracy and linearity across all input ranges (±10V, ±5V, etc.) and both output channels.
- Timing & Synchronization Test: We configure a simultaneous AI/AO task and use an oscilloscope to verify the update/sample timing accuracy and channel-to-channel synchronization, leveraging the NI-STC3 engine.
- Final QC & Packaging: The module is sealed in an anti-static bag with silica gel. A QC sticker showing the test date and technician initials is applied to the exterior.
Replacement Pitfall Guide
Field replacements on DAQ systems are unforgiving. Watch out for these traps.
- Pinout Compatibility: ✅ Good News. The PCIe-6321 shares the exact same 68-pin pinout as the PCI-6221. Your existing cables (e.g., SHC68-68-EPM) and terminal blocks (e.g., BNC-2110, SCB-68) are fully compatible. No rewiring is needed.
- Counter Count Mismatch: ❗ Critical. The PCIe-6321 has four 32-bit counters, while the PCI-6221 has only two. While this is an upgrade, any legacy code that hardcodes counter indices or assumes only two counters exist must be reviewed to prevent logic errors.
- Driver Version Consistency: ❗ Critical. Ensure all NI-DAQmx components on your system are the same version. Mixing driver versions can cause device enumeration failures in NI MAX. Use the NI Package Manager to verify consistency.
- Overvoltage Protection: The analog input protection circuit can be damaged by overvoltage events, causing inputs to clamp to a constant voltage (e.g., 6V) even with no signal connected. Always verify signal levels and use external protection if measuring inductive or high-voltage sources.
- ESD Damage: The 16-bit ADC/DAC and PCIe interface are sensitive to electrostatic discharge. Always wear a grounded wrist strap when handling the bare PCB. I’ve seen cards fail self-tests because they were handled on a dry winter day without protection.
Keep these in mind and you’ll cut 90% of rework time.
NI PCIE-6321
Compatibility Matrix & Benchmarks
Compatibility
- NI PCI-6221 → PCIe-6321 : Direct Replacement – Same pinout, same I/O count, PCIe bus, 4 counters (vs 2). Verify counter logic in code.
- NI PCIe-6321 → PCIe-6321 : Direct Replacement – Verify NI-DAQmx driver version consistency.
- NI PCIe-6321 → PXIe-6321 : Form Factor Change – Same core specs, different chassis. Requires PXI Express chassis migration.
Benchmarks
- AI Sample Rate: 250 kS/s per channel (Verified, independent timing)
- AO Update Rate: 900 kS/s (Verified, high-speed waveform generation)
- DC Accuracy: ±2200 μV (Typical, post-calibration)
