Product Core Brief

• Model: 200-530-022-014
• Brand: VIBRO-METER
• Series: VM600 CMC16
• Core Function: High-density condition monitoring card for the VM600 rack-based machinery monitoring system.
• Product Type: VM600 condition monitoring / signal processing card
• Key Specs: 16 dynamic channels | 4 tachometer channels | XIO16T card pair | VibroSight software | Ethernet communication
• Condition: New original / new surplus — verify on nameplate

Product Introduction

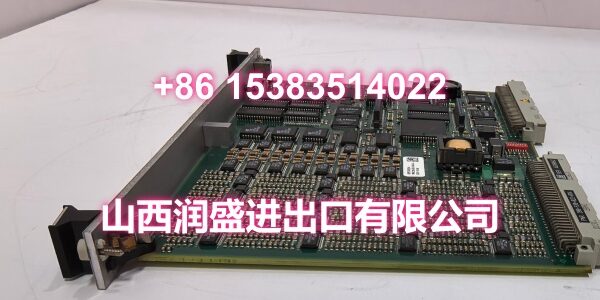

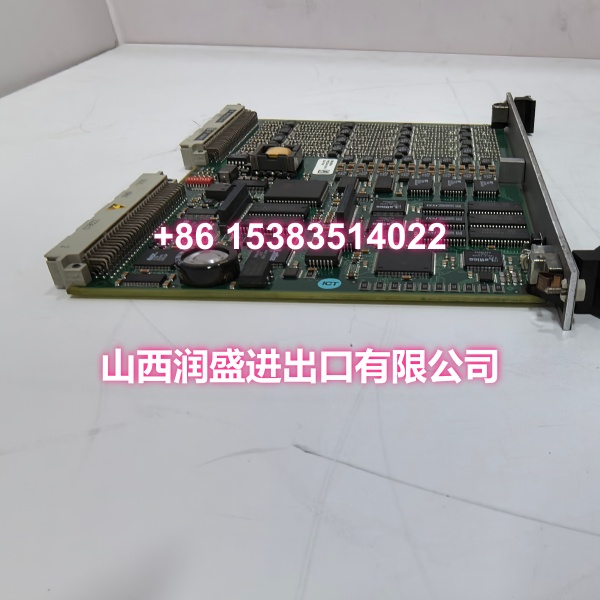

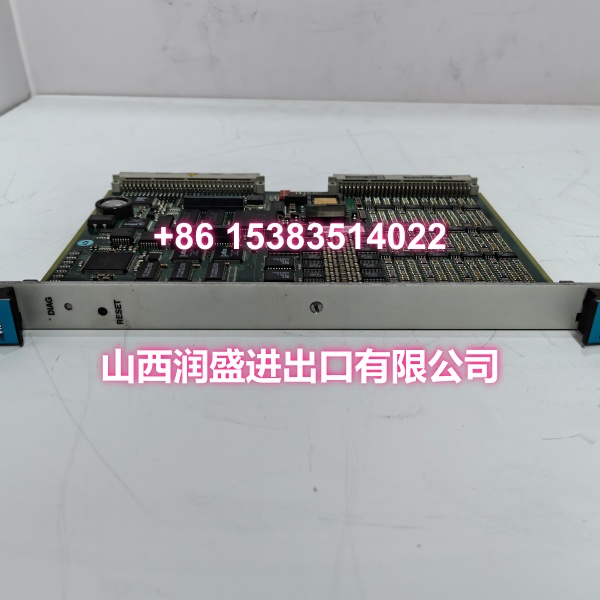

The VIBRO-METER CMC16 200-530-022-014 is a condition monitoring card for the VM600 machinery monitoring platform. It provides high-channel-density vibration and speed monitoring for turbines, compressors, generators, pumps, fans, and other rotating equipment.

The CMC16 is typically paired with an XIO16T input/output module to form a complete card set. It supports asynchronous fixed-frequency sampling and synchronous order-tracked sampling, and is designed for use with VibroSight software for configuration, data acquisition, and diagnostics.

Note: Public listings most commonly reference CMC16 part number 200-530-025-014. The 200-530-022-014 variant should be verified against the nameplate and OEM documentation before deployment.

Key Technical Specifications

• Part number: 200-530-022-014
• Product family: VM600 CMC16
• Module type: Condition monitoring card
• Dynamic channels: 16 channels, independently configurable
• Tachometer channels: 4 channels
• Processed outputs: Up to 20 processed outputs per dynamic channel / per dual channel; XMC16 variant supports 12 per card
• Data acquisition: 24-bit ADC, high signal-to-noise ratio processing
• FFT capability: Up to 6400-line high-resolution FFT every 500 ms
• Sampling mode: Asynchronous (fixed frequency) and synchronous (order tracked)
• Communication: Ethernet for VibroSight connectivity; Modbus/fieldbus options depend on system controller and configuration
• Required pair: XIO16T I/O module mounted behind the CMC16
• Rack compatibility: VM600 ABE040, ABE042, ABE056
• Power: Supplied via VM600 rack backplane, typically 24 VDC
• Operating temperature: Typically -20°C to +70°C for VM600 monitoring cards — confirm per revision
• Hot-swappable: Yes
• Software: VibroSight

Quality Control Process (Dynamic for Monitoring Card)

• Nameplate verification: Confirm 200-530-022-014, hardware revision, firmware, and CMC16/XMC16 designation.
• Connector inspection: Check front-panel indicators, Ethernet/communication ports, and backplane pins.
• XIO16T pair check: Verify the paired XIO16T module revision matches the installed VM600 rack type.
• Power-up test: Seat in a compatible VM600 rack and confirm normal LED/status behavior.
• Software recognition: Verify card detection and channel mapping in VibroSight.
• Packing: Use anti-static bag, connector protection, foam support, and rigid carton for shipment.

Replacement Pitfall Guide

❗ Do not install CMC16 without its paired XIO16T module. The CMC16 relies on XIO16T for sensor interfaces, signal routing, and rear I/O connectivity.

❗ Do not assume 200-530-022-014 is identical to 200-530-025-014 or 200-530-111-013. Suffix differences may affect firmware, channel configuration, or software licensing.

❗ Verify rack compatibility. CMC16/XMC16 cards must match the installed VM600 ABE04x rack generation and rear I/O module.

❗ Confirm VibroSight license and firmware compatibility before commissioning. A mismatch can prevent configuration download or data acquisition.

❗ Record channel mapping, sensor types, and alarm thresholds before removal. Restoring monitoring configuration from scratch risks incorrect diagnostics.

Keep these in mind and you’ll cut 90% of rework time.

Compatibility Matrix & Benchmarks

Benchmarks: 16 dynamic + 4 tachometer channels; 24-bit acquisition; up to 6400-line FFT; asynchronous and order-tracked sampling; Ethernet/VibroSight integration; XIO16T card pair; compatible with VM600 ABE040/ABE042/ABE056 racks.
