Product Core Brief

• Model: 204-040-100-012
• Brand: VIBRO-METER
• Series: VM600-ABE040
• Core Function: 19-inch, 6U system rack that houses VM600 machinery protection and condition monitoring modules.
• Product Type: VM600 ABE040 system rack / chassis
• Key Specs: 19″ rack | 6U height | VME backplane | RPS6U power support | IP20
• Condition: New original / new surplus — verify on nameplate

Product Introduction

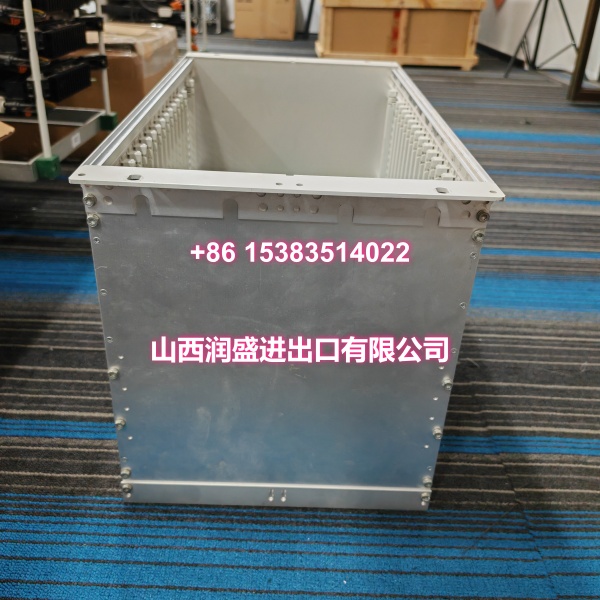

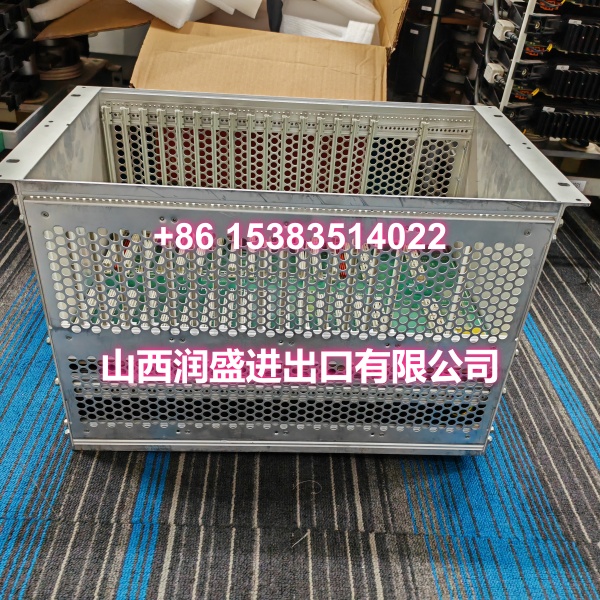

The VIBRO-METER VM600-ABE040 204-040-100-012 is a 19-inch, 6U system rack for the VM600 machinery protection and condition monitoring platform. It provides the mechanical mounting, backplane wiring, and power distribution required for VM600 processing, I/O, communication, relay, and power modules.

The rack supports VME-based backplane communication and can be powered by one or two RPS6U power modules for redundancy. It does not perform measurement or protection on its own; it must be populated with compatible VM600 cards such as MPC4, IOC4T, XMV16, XIO16T, IOCN, CPUM, or RPS6U.

Key Technical Specifications

• Part number: 204-040-100-012
• Product family: –
• Module type: 19-inch system rack / chassis
• Rack height: 6U
• Mounting: 19-inch rack mount
• Backplane: VME bus for power and module communication
• Compatible cards: VM600 MPC4, IOC4T, XMV16, XIO16T, IOCN, CPUM, RLC16, AMC8, and related ABE04x modules
• Power modules: RPS6U series, single or redundant configuration
• Protection class: IP20
• Operating temperature: Typically -25°C to +65°C, subject to installed modules and cabinet environment
• Storage temperature: Typically -40°C to +85°C
• Humidity: Up to 95% non-condensing
• Structure: Aluminum frame with card guides and rear I/O module support
• Serial number / hardware revision: Verify on nameplate

Quality Control Process (Dynamic for Rack/Chassis)

• Nameplate verification: Confirm 204-040-100-012, VM600-ABE040 designation, and hardware revision.
• Mechanical inspection: Check 19-inch mounting ears, card guides, grounding points, and rear I/O alignment.
• Backplane continuity check: Test slot pins for shorts, opens, and bent contacts before installing active cards.
• Power rail verification: With a compatible RPS6U installed, confirm backplane voltages under no-load conditions.
• Slot seating test: Insert a known-good VM600 card to verify proper engagement and retention.
• Packing: Protect backplane connectors, wrap in anti-static material, and ship in a rigid crate with edge guards.

Replacement Pitfall Guide

❗ Do not assume all ABE040 racks are identical. The 204-040-100-012 may differ from 204-040-100-011 in revision, backplane layout, or slot wiring.

❗ Do not install cards without confirming slot compatibility. MPC4 cards typically require an IOC4T partner slot arrangement; XMV16/XIO16T pairs follow different rules.

❗ Verify backplane power before populating all slots. Overloading the rack supply with too many active cards can cause unstable operation.

❗ Check grounding and cabinet bonding. A poor rack ground can introduce noise into vibration measurement channels.

Keep these in mind and you’ll cut 90% of rework time.

Compatibility Matrix & Benchmarks

Benchmarks: 19-inch, 6U VM600 ABE040 rack; VME backplane; RPS6U single or redundant power support; IP20 protection; compatible with VM600 MPC4, IOC4T, XMV16, XIO16T, IOCN, CPUM, and related modules.
