Product Core Brief
- Model: RPS6U — 200-582-500-013
- Brand: VIBRO-METER
- Series: VM600 Machine Protection & Condition Monitoring System
- Core Function: Rack power supply module for VM600 19″ monitoring and protection systems.
- Product Type: VM600 Power Supply Module
- Key Specs: 6U VM600 rack power supply | Supports AC/DC input variants | Status monitoring and fault alarm output | Hot-swappable within VM600 rack
- Condition: New Surplus
Product Introduction

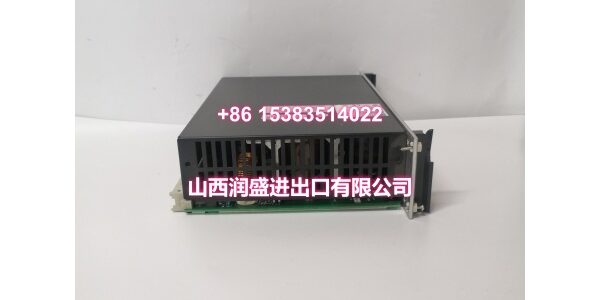

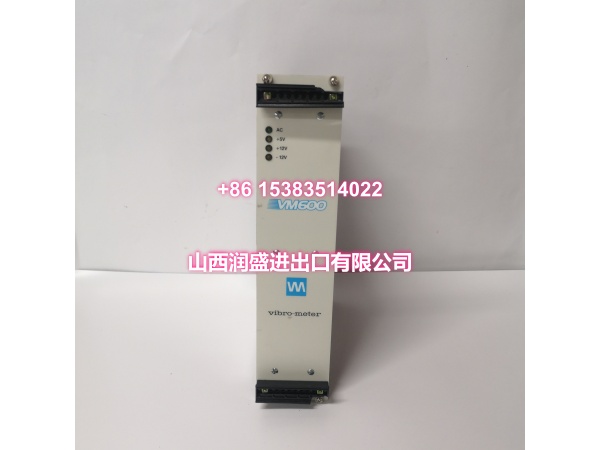

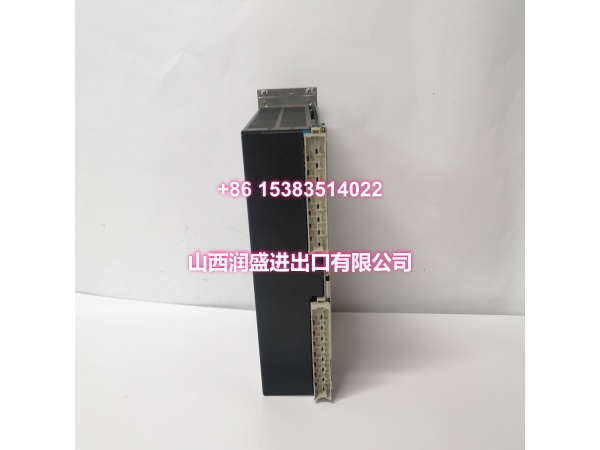

VIBRO-METER RPS6U 200-582-500-013 is a power supply module for the Vibro-Meter VM600 machine protection and condition monitoring system. It provides regulated power to CPU modules, monitoring cards, relay modules, and I/O cards installed in the VM600 19″ rack.
The RPS6U family is designed to integrate with the VM600 backplane and report operating status to the rack controller. Depending on configuration, it can support wide-range AC or DC input and provide fault alarm outputs for overvoltage, overcurrent, or overheating conditions. The 200-582-500-013 variant is commonly listed alongside other RPS6U modules such as 200-582-600-013, so input voltage range and output ratings should be confirmed from the nameplate and official datasheet before installation.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Product Type | VM600 Power Supply Module |
| Brand | VIBRO-METER |
| System Compatibility | / Mk2 |
| Module Format | 6U VM600 rack power supply |
| Function | Rack power distribution and status monitoring |
| Input Type | AC/DC variant dependent |
| Status Features | Operating status monitoring, fault alarm output |
| Mounting | VM600 19″ rack module |
| Typical Use | Powering VM600 CPU, MPC4, CMC16, RLC16, and I/O modules |
| Condition | New Surplus |
Note: Exact input voltage range, output voltages, current ratings, and revision details for 200-582-500-013 should be confirmed against the official Vibro-Meter datasheet and the module nameplate.
Quality Control Process
Each unit begins with a visual inspection of the front panel, connectors, terminal blocks, and PCB for corrosion, heat marks, or mechanical damage. The module is seated into a compatible VM600 rack to verify mechanical fit and backplane engagement.
Power is applied through the rated input source, and initialization indicators are checked for proper startup behavior. Output voltages are verified with a Fluke multimeter to confirm regulation and stability under no-load and light-load conditions. Fault alarm outputs and status indicators are checked where applicable. Final packing uses anti-static bags, foam inserts, and sealed cartons to protect the module during shipment.
Replacement Pitfall Guide
❗ Confirm the exact part number and input rating. The RPS6U family includes multiple variants, and 200-582-500-013 may differ from other RPS6U modules in input voltage, output rating, or revision. Installing a module with the wrong input specification can damage the rack or cause unstable operation.
❗ Verify compatibility with the existing VM600 rack. VM600 racks may be configured with one or two power supply modules. Mixing incompatible revisions or output ratings can create uneven loading or protection conflicts.
❗ Check fault alarm wiring before energizing. RPS6U modules can provide fault alarm signals for overvoltage, overcurrent, or overheating. If these outputs are wired incorrectly, a power fault may not reach the annunciator or PLC.
❗ Reconfirm rack power redundancy configuration. If the rack uses dual power supplies, verify that both modules are compatible and that the failed unit is fully isolated before replacement. A hot swap should only be performed when the system design allows it.
Keep these in mind and you’ll cut 90% of rework time.
Compatibility Matrix & Benchmarks
| Original Model | Replacement / Successor Model | Compatibility Level | Migration Notes |
|---|---|---|---|
| VIBRO-METER RPS6U 200-582-500-013 | VIBRO-METER RPS6U 200-582-500-013 | Direct | Same part number; verify input/output ratings and rack firmware. |
| VIBRO-METER RPS6U 200-582-500-013 | VIBRO-METER RPS6U 200-582-600-013 | Needs Adaptation | Same RPS6U family; input range, output rating, and revision must be verified. |
| VIBRO-METER RPS6U 200-582-500-013 | VIBRO-METER VM600 CPUM | Not Compatible | CPUM is a CPU/controller module, not a power supply. |
| VIBRO-METER RPS6U 200-582-500-013 | VIBRO-METER VM600 MPC4 / CMC16 | Not Compatible | MPC4 and CMC16 are monitoring/protection cards, not power supplies. |
Benchmark notes:
- 6U VM600 rack power supply for machine protection and condition monitoring systems.
- Supports status monitoring and fault alarm reporting within the VM600 rack.
Always confirm the exact input voltage, output rating, and revision against the original unit and official Vibro-Meter documentation before installation.
