Product Core Brief
- Model: CMC16 — 200-530-022-014
- Brand: VIBRO-METER
- Series: VM600 / VM600 Mk2 Machine Monitoring System
- Core Function: High-density condition monitoring module for vibration, speed, and combustion/process monitoring in VM600 racks.
- Product Type: VM600 Condition Monitoring Module
- Key Specs: 16 dynamic channels + 4 tachometer channels | 24-bit acquisition | High-resolution FFT | Paired with XIO16T I/O module
- Condition: New Surplus
Product Introduction

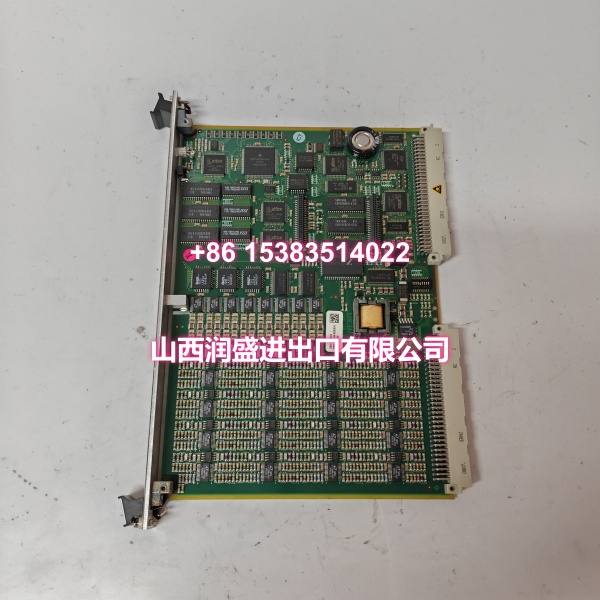

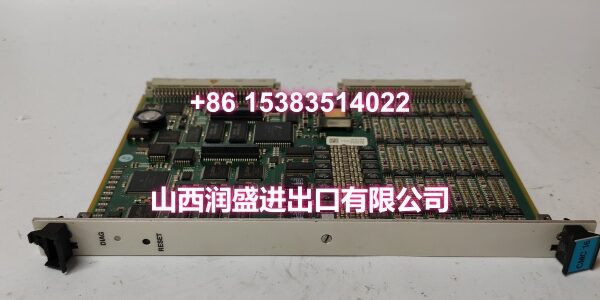

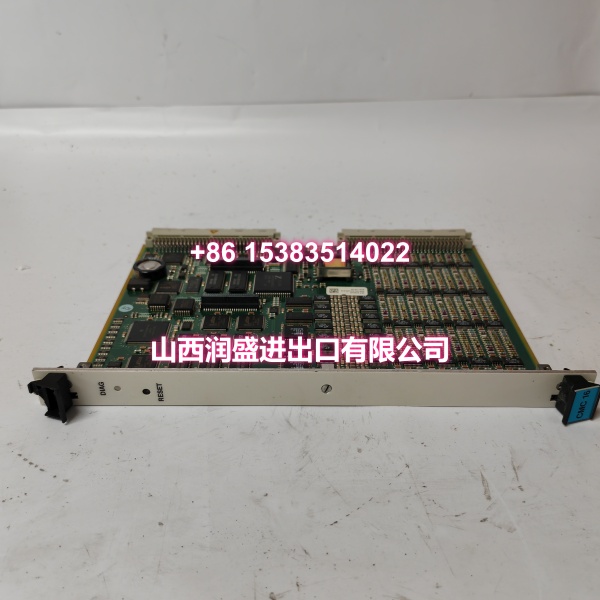

VIBRO-METER CMC16 200-530-022-014 is a condition monitoring module for the VM600 and VM600 Mk2 rack-based machinery monitoring systems. It provides 16 dynamic measurement channels and 4 tachometer channels for vibration monitoring, speed sensing, and diagnostic analysis on turbines, compressors, generators, and other critical rotating equipment.
The CMC16 processing module operates as a paired card set with the XIO16T input/output module mounted directly behind it in the rack. It supports simultaneous asynchronous or synchronous sampling, 24-bit data acquisition, and high-resolution FFT processing. Designed for VibroSight software integration, it is commonly deployed in power generation, oil & gas, petrochemical, and heavy industrial applications where high channel density and advanced diagnostics are required.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Product Type | VM600 Condition Monitoring Module |
| Brand | VIBRO-METER |
| System Compatibility | / Mk2 |
| Dynamic Channels | 16 channels |
| Tachometer Channels | 4 channels |
| Data Acquisition | 24-bit simultaneous sampling |
| FFT Resolution | Up to 6400 lines per 500 ms |
| Sampling Mode | Asynchronous (fixed frequency) or synchronous (order tracked) |
| Required Pairing | XIO16T I/O module (rear-mounted) |
| Software | VibroSight |
| Mounting | VM600 19″ rack module |
| Condition | New Surplus |
Note: Exact electrical ratings, input types, and firmware level for 200-530-022-014 should be confirmed against the official Vibro-Meter datasheet before installation.
Quality Control Process
Each unit begins with a visual inspection of the front panel, connectors, PCB, and rear mating contacts for corrosion, bent pins, or thermal stress. The CMC16 is then seated into a compatible VM600 rack with the paired XIO16T module to verify mechanical fit and backplane recognition.
Power is applied through the rack supply, and initialization LEDs are checked for proper startup behavior. Dynamic channel integrity is verified with a precision signal source and Fluke multimeter to confirm input response, noise floor, and isolation. Tachometer channels are exercised with simulated speed signals to confirm pulse detection and phase tracking. Communication with VibroSight software is tested where possible to confirm channel mapping, FFT output, and alarm configuration. Final packing uses anti-static bags, foam inserts, and sealed cartons to protect the module during shipment.
Replacement Pitfall Guide
❗ Confirm the exact part number and revision. The CMC16 family includes multiple variants (e.g., 200-530-022-014, 200-530-025-014, 200-530-111-013), and firmware, channel configuration, or application tuning may differ between revisions. Installing the wrong variant can cause channel mapping errors or software incompatibility.
❗ Verify the XIO16T pairing. The CMC16 cannot operate alone—it must be paired with the correct XIO16T module mounted directly behind it in the rack. Installing it without the paired I/O module, or behind the wrong variant, will prevent channel acquisition.
❗ Revalidate channel mapping in VibroSight. After replacement, all 16 dynamic channels and 4 tachometer channels must be reconfirmed in the software. Wrong channel assignments can mask developing vibration issues or generate false alarms.
❗ Check sensor wiring and differential inputs. The XIO16T provides differential signal inputs for each dynamic and tachometer channel. Reversed polarity, poor shielding, or ground loops can introduce noise that looks like mechanical vibration but is actually an electrical artifact.
Keep these in mind and you’ll cut 90% of rework time.
Compatibility Matrix & Benchmarks
| Original Model | Replacement / Successor Model | Compatibility Level | Migration Notes |
|---|---|---|---|
| VIBRO-METER CMC16 200-530-022-014 | VIBRO-METER CMC16 200-530-022-014 | Direct | Same part number; verify XIO16T pairing and VibroSight configuration. |
| VIBRO-METER CMC16 200-530-022-014 | VIBRO-METER CMC16 200-530-025-014 | Needs Adaptation | Similar CMC16 family; verify firmware, channel map, and application tuning. |
| VIBRO-METER CMC16 200-530-022-014 | VIBRO-METER CMC16 200-530-111-013 | Needs Adaptation | Similar CMC16 family; confirm revision compatibility before substitution. |
| VIBRO-METER CMC16 | VIBRO-METER VM600 XMV16 | Needs Adaptation | XMV16 is a related 16-channel monitoring card; pairing and software configuration differ. |
Benchmark notes:
- 16 dynamic channels + 4 tachometer channels with 24-bit simultaneous acquisition.
- FFT resolution up to 6400 lines per 500 ms with asynchronous or synchronous sampling.
Always confirm the exact revision, XIO16T pairing, and VibroSight channel configuration against the original unit before installation.
