Product Core Brief
- Model: CMC16 — 200-530-025-014 / 200-530-111-013
- Brand: VIBRO-METER
- Series: VM600 / VM600 Mk2 Machine Monitoring System
- Core Function: High-density condition monitoring module for vibration, speed, and diagnostic analysis in VM600 racks.
- Product Type: VM600 Condition Monitoring Module
- Key Specs: 16 dynamic channels + 4 tachometer channels | 24-bit acquisition | High-resolution FFT | VibroSight software support
- Condition: New Surplus
Product Introduction

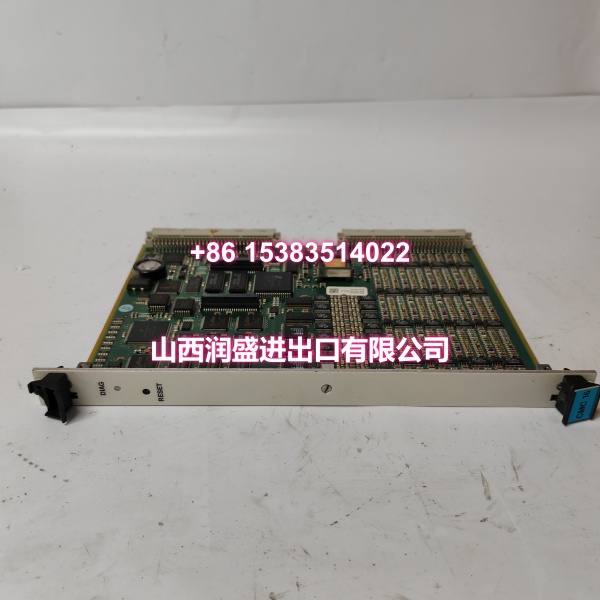

VIBRO-METER CMC16 200-530-025-014 / 200-530-111-013 is a condition monitoring module for the VM600 and VM600 Mk2 rack-based machinery monitoring systems. It provides 16 dynamic measurement channels and 4 tachometer channels for vibration monitoring, speed sensing, and diagnostic analysis on turbines, compressors, generators, and other critical rotating equipment.
The CMC16 supports simultaneous asynchronous or synchronous sampling, 24-bit data acquisition, and high-resolution FFT processing. It is designed for integration with VibroSight software and is commonly deployed in power generation, oil & gas, petrochemical, and heavy industrial applications where high channel density and advanced diagnostics are required.
The two part numbers listed—200-530-025-014 and 200-530-111-013—represent different variants within the CMC16 family. Exact differences in firmware, hardware revision, input configuration, or application tuning should be confirmed against the module nameplate and official Vibro-Meter documentation before substitution.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Product Type | VM600 Condition Monitoring Module |
| Brand | VIBRO-METER |
| System Compatibility | / Mk2 |
| Dynamic Channels | 16 channels |
| Tachometer Channels | 4 channels |
| Data Acquisition | 24-bit simultaneous sampling |
| FFT Resolution | Up to 6400 lines per 500 ms |
| Sampling Mode | Asynchronous or synchronous |
| Software | VibroSight |
| Mounting | VM600 19″ rack module |
| Condition | New Surplus |
Note: Exact revision, firmware level, paired I/O module, and electrical ratings for 200-530-025-014 and 200-530-111-013 should be verified from the module nameplate and official Vibro-Meter documentation.
Quality Control Process
Each unit begins with a visual inspection of the front panel, connectors, PCB, and rear mating contacts for corrosion, bent pins, or thermal stress. The CMC16 is then seated into a compatible VM600 rack to verify mechanical fit and backplane recognition.
Power is applied through the rack supply, and initialization LEDs are checked for proper startup behavior. Dynamic channel integrity is verified with a precision signal source and Fluke multimeter to confirm input response, noise floor, and isolation. Tachometer channels are exercised with simulated speed signals to confirm pulse detection. Communication with VibroSight software is tested where possible to confirm channel mapping, FFT output, and alarm configuration. Final packing uses anti-static bags, foam inserts, and sealed cartons to protect the module during shipment.
Replacement Pitfall Guide
❗ Confirm the exact part number and revision. The CMC16 family includes multiple variants, and 200-530-025-014 and 200-530-111-013 may differ in firmware, hardware revision, or channel configuration. Installing the wrong variant can cause channel mapping errors or software incompatibility.
❗ Verify the paired I/O module. CMC16 modules in the VM600 family typically operate with a matched rear I/O module. Installing it without the correct paired card can prevent channel acquisition or cause signal faults.
❗ Revalidate channel mapping in VibroSight. After replacement, all dynamic and tachometer channels must be reconfirmed in the software. Wrong channel assignments can mask developing vibration issues or generate false alarms.
❗ Check sensor wiring and shielding. Reversed polarity, poor grounding, or damaged sensor cables can introduce electrical noise that appears as mechanical vibration. Always verify sensor loops before final commissioning.
Keep these in mind and you’ll cut 90% of rework time.
Compatibility Matrix & Benchmarks
| Original Model | Replacement / Successor Model | Compatibility Level | Migration Notes |
|---|---|---|---|
| VIBRO-METER CMC16 200-530-025-014 | VIBRO-METER CMC16 200-530-025-014 | Direct | Same part number; verify firmware and paired I/O module. |
| VIBRO-METER CMC16 200-530-111-013 | VIBRO-METER CMC16 200-530-111-013 | Direct | Same part number; verify firmware and paired I/O module. |
| VIBRO-METER CMC16 200-530-025-014 | VIBRO-METER CMC16 200-530-111-013 | Needs Adaptation | Same CMC16 family; confirm revision, firmware, and application tuning before substitution. |
| VIBRO-METER CMC16 | VIBRO-METER VM600 XMV16 | Needs Adaptation | XMV16 is a related 16-channel monitoring card; pairing and software configuration differ. |
Benchmark notes:
- 16 dynamic channels + 4 tachometer channels with 24-bit simultaneous acquisition.
- FFT resolution up to 6400 lines per 500 ms with asynchronous or synchronous sampling.
- Designed for VibroSight software integration in VM600 and VM600 Mk2 racks.
Always confirm the exact revision, paired I/O module, and VibroSight channel configuration against the original unit before installation.
Do you need the CMC16 paired I/O module guide or the VM600 rack slot layout for this card?
