Product Core Brief

• Model: 200-510-111-035
• Brand: VIBRO-METER
• Series: VM600 MPC4
• Core Function: DSP-based machinery protection card for real-time vibration, displacement, and speed monitoring in the VM600 system.
• Product Type: VM600 processing/protection card
• Key Specs: 4 dynamic channels | 2 tachometer channels | IOC4T card pair | 4-20 mA / 0-10 V outputs | SIL option
• Condition: New original / new surplus — verify on nameplate

Product Introduction

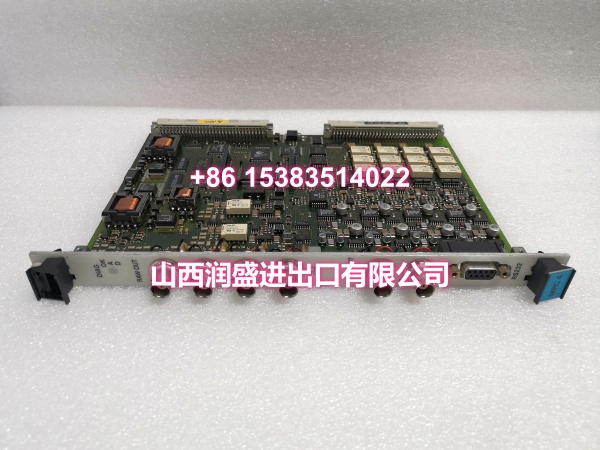

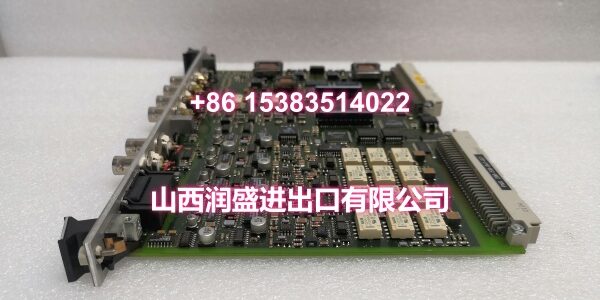

The VIBRO-METER MPC4 200-510-111-035 is a core processing card for the VM600 Machinery Protection System. It provides continuous online monitoring for critical rotating equipment such as steam turbines, gas turbines, compressors, generators, and large pumps.

The MPC4 accepts up to four programmable dynamic signal inputs and two tachometer inputs, performing DSP-based measurement of relative/absolute vibration, shaft position, eccentricity, thrust position, casing expansion, and dynamic pressure. It must be paired with an IOC4T card to form a complete card pair for sensor power, relay outputs, and analog signal routing.

Key Technical Specifications

• Part number: 200-510-111-035
• Product family: VM600 MPC4
• Module type: Machinery protection processing card
• Dynamic inputs: 4 channels, fully programmable (acceleration, velocity, displacement/proximity)
• Tachometer inputs: 2 channels, supports proximity probe, MPU, and TTL sensors
• DC input range: 0 to +20 V or 0 to -20 V
• AC input range: ±10 V maximum
• Input impedance: 200 kΩ
• Analog frequency range: DC to 60 kHz (-3 dB)
• Analog outputs: 4-20 mA and 0-10 V per channel via IOC4T
• Relay outputs: Via IOC4T local relays and/or RLC16/IRC4 expansion cards

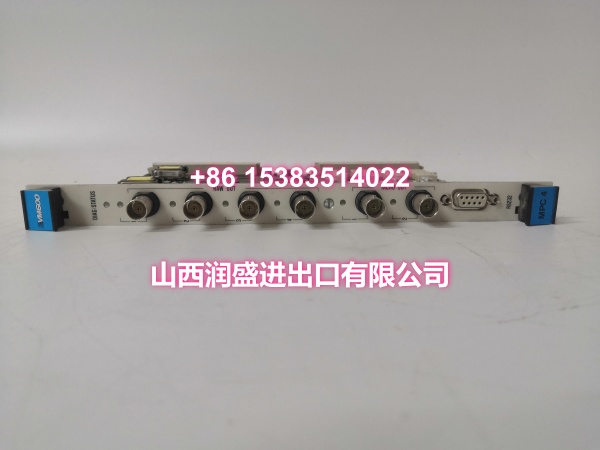

• Buffered output: Front-panel BNC for raw dynamic signal
• Rack compatibility: VM600 ABE040, ABE042, ABE056
• Required pair: IOC4T card in adjacent slot
• Power: Supplied via VM600 rack backplane, typically 24 VDC
• Operating temperature: Typically 0 to +55°C (rack/cabinet dependent)
• Versions: Standard, Separate Circuits, and SIL certified
• Hot-swappable: Yes

Quality Control Process (Dynamic for Protection Card)

• Nameplate verification: Confirm 200-510-111-035, hardware revision, firmware, and SIL/standard version.
• Connector inspection: Check front-panel BNC, LED indicators, and backplane pins for damage or corrosion.
• IOC4T pair check: Verify the paired IOC4T card revision and relay configuration match the original setup.
• Power-up test: Seat in a compatible VM600 rack and confirm normal LED behavior and backplane detection.
• Channel validation: Verify dynamic and tachometer channel recognition via VM600 MPSx software.
• Packing: Use anti-static bag, connector caps, foam support, and rigid carton for shipment.

Replacement Pitfall Guide

❗ Do not install MPC4 without its paired IOC4T card. The MPC4 relies on the IOC4T for sensor power, relay outputs, and analog signal routing.

❗ Do not assume all MPC4 suffixes are identical. The 200-510-111-035 may differ from 200-510-078-115, 200-510-070-113, or 200-510-111-034 in firmware, SIL certification, or channel configuration.

❗ Verify firmware compatibility with the installed VM600 MPSx software version. A mismatch can prevent configuration download or cause alarm logic errors.

❗ Record all alarm setpoints, filter settings, and channel mappings before removal. Restoring configuration from scratch risks incorrect trip thresholds.

❗ Check whether the original card is Standard, Separate Circuits, or SIL version. SIL-certified applications require a matching SIL replacement.

Keep these in mind and you’ll cut 90% of rework time.

Compatibility Matrix & Benchmarks

Benchmarks: 4 dynamic + 2 tachometer channels; DSP-based real-time processing; 4-20 mA / 0-10 V analog outputs via IOC4T; front-panel BNC for raw signal; SIL option; hot-swappable; compatible with VM600 ABE040/ABE042/ABE056 racks.
