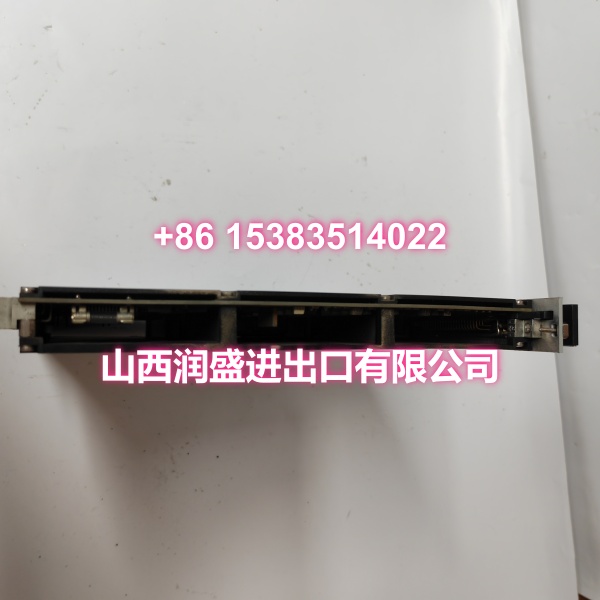

Product Core Brief
- Model: 5466-258
- Brand: WOODWARD
- Series: MicroNet Digital Control / MicroNet Plus
- Core Function: Simplex discrete input/output module for MicroNet and Vertex-Pro control systems, handling combined discrete I/O signals.
- Product Type: Simplex Discrete I/O Module
- Key Specs: 48 discrete inputs / 24 discrete outputs | 18–32 V DC I/O | MicroNet & Vertex-Pro compatible | Single red fault LED
- Condition: New Original / New Surplus
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Part Number | 5466-258 |
| Manufacturer | WOODWARD, Inc. (Fort Collins, CO, USA) |
| Product Type | Simplex Discrete I/O Module |
| System Compatibility | MicroNet, MicroNet Plus, Vertex-Pro |
| Chassis Compatibility | 8-slot and 14-slot MicroNet chassis |
| I/O Configuration | 48 discrete inputs / 24 discrete outputs (48/24 combined) |
| Input Isolation | Optically isolated discrete inputs |
| External I/O Voltage | 18 to 32 V DC |
| Power Supply Input | 18 to 32 V DC |
| Power Consumption | 6.5 W at 24 V DC |
| Fault Indication | 1 × red fault LED on front panel |
| Connectors | 2 × high-density discrete/analog connectors (via FTM cabling) |
| Certifications | UL / ATEX (hazardous area rated) |
| Hazardous Area Rating | Non-hazardous or Class I, Division 2, Groups A–D |
| Approx. Weight | ~0.8 kg |
| Approx. Dimensions | 16 cm × 16 cm × 12 cm |
Product Introduction (No Fluff)

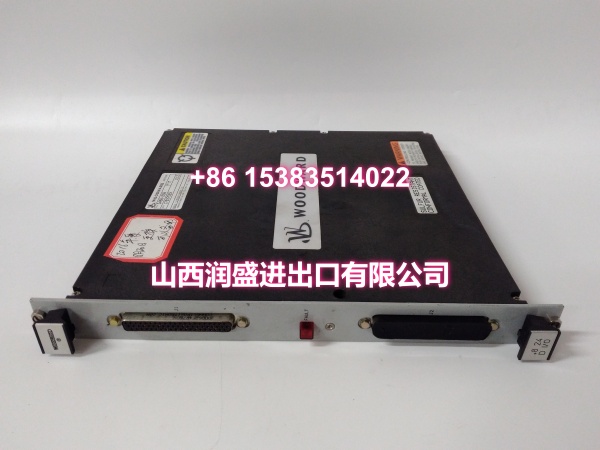

This is a WOODWARD 5466-258 simplex discrete I/O module from the MicroNet digital control family. It provides 48 optically isolated discrete inputs and 24 discrete outputs
, typically used for permissive signals, trip logic, valve position feedback, and alarm/status signaling on turbine, compressor, and engine control systems.
For integrators maintaining MicroNet or Vertex-Pro installations, this module is a direct-fit replacement when channel count and voltage ratings match. The 48/24 I/O density means fewer slots consumed per rack, which matters when you are working inside an 8-slot or 14-slot chassis with limited real estate.
QA & Testing SOP (Dynamic & Transparent)
Discrete I/O modules with high channel counts need more than a visual check. A single failed opto-isolator on input channel 37 won’t reveal itself until a permissive signal disappears during startup.
- Visual & anti-counterfeit inspection — Verify part number 5466-258, revision label, serial number, and PCB finish. Check for reworked solder joints, burnt components, or corroded high-density connectors. Any label mismatch triggers a hold.
- Connector & FTM cable inspection — Examine the two high-density connectors for bent pins, oxidation, or loose retention. These modules route through FTM (Field Terminal Module) cabling; damaged pins here are a common field failure point.
- Power-up & self-test — Insert into a compatible MicroNet or Vertex-Pro test rack. Apply 18–32 V DC. Confirm the module powers up, passes internal diagnostics, and the fault LED is not illuminated.
- Discrete I/O verification — Apply 24 V DC to sampled discrete inputs across the 48-channel range and confirm status reads correctly in the controller. Trigger sampled discrete outputs and verify voltage presence at the FTM terminal block.
- Packaging — ESD-bagged, foam-padded, and shipped in impact-resistant boxing with anti-static protection.
Tools: Fluke multimeter, 24 V DC test supply, compatible MicroNet/Vertex-Pro test rack, and ESD-safe workbench.
Installation Pitfalls & Guide (Engineer to Engineer)
❗ This is a simplex module, not fault-tolerant. Unlike the 5466-257 FT series, the 5466-258 has no redundant channel architecture. If this module fails, the I/O it controls is lost. Do not substitute it into an FT slot expecting redundancy.
❗ Match the FTM cabling configuration. The 5466-258 uses two high-density connectors that route through 24/12 discrete FTM blocks. Swapping cables between the two connectors will scramble your I/O mapping. Label both ends before disconnecting.
❗ Verify voltage compatibility. The module expects 18–32 V DC on both I/O and power supply. Feeding it from a 48 V DC bus or a 12 V DC source will either damage the module or cause it to fail to operate.
❗ Check hazardous area rating. This module is rated for non-hazardous locations or Class I, Division 2, Groups A–D. Installing it in a higher-classified zone without proper protection is a safety violation.
Replacement steps:
- Back up the current controller configuration and document all FTM terminal assignments. Photograph both high-density connector pinouts.
- De-energize the I/O power supply. Disconnect both FTM cables and remove the faulty module.
- Inspect the backplane slot and FTM connectors for bent pins or debris. Seat the replacement module firmly.
- Reconnect FTM cables to their original positions. Restore power, verify the fault LED is off, and test sampled I/O points before returning to full service.
Technical FAQ
Can you offer price flexibility for bulk or repeat orders? Yes. Pricing depends on condition (new original vs. new surplus), revision, and quantity. Surplus stock typically offers more flexibility. We can discuss volume pricing for maintenance spares packages.
What warranty do you provide? Warranty terms vary by condition and stock source. New original units carry manufacturer-backed coverage; new surplus units carry our own tested-unit warranty. We confirm terms before shipment.
Is this directly compatible with my existing MicroNet rack? Yes — the 5466-258 is a standard simplex discrete I/O module for MicroNet, MicroNet Plus, and Vertex-Pro chassis in both 8-slot and 14-slot configurations. However, you must confirm your FTM cabling matches the 48/24 channel configuration and that your I/O voltage is within the 18–32 V DC range.
Can I replace a 5466-257 FT module with this 5466-258? No. The 5466-257 is a fault-tolerant module with redundant channel architecture. The 5466-258 is simplex. Substituting one for the other will change the redundancy behavior of your control system and may introduce a single point of failure.
Is this model still available or obsolete? The MicroNet and Vertex-Pro platforms remain in active use across many industrial installations. Individual module availability depends on revision and regional stock. If you are maintaining a critical control system, we recommend securing tested spares now rather than waiting for an unplanned outage.
