Product Core Brief

• Model: 8440-2047
• Brand: WOODWARD
• Series: easYgen-3500 (easYgen-3500-5 Marine)
• Core Function: Digital control, protection, synchronization, and load sharing for generator sets and industrial/marine turbines.
• Product Type: easYgen-3500 Series Digital Generator/Turbine Controller
• Key Specs: easYgen-3500-5 Marine variant | Speed/load/isochronous control | Auto synchronization | Breaker control | Up to 32-unit proportional load sharing | Event recorder with RTC | Real-time monitoring of speed, temperature, pressure, voltage, current
• Condition: New Original / New Surplus (verify per lot)

Key Technical Specifications

• Controller type: easYgen-3500-series digital controller, identified as easYgen-3500-5 Marine in available references.
• Application: Generator sets, marine power systems, industrial turbine-generator sets, CHP plants, emergency backup, island-mode main power, and grid-parallel peak shaving.
• Control modes: Speed control, load control, isochronous synchronization control, droop mode, and proportional load sharing.
• Paralleling capacity: Supports multi-unit parallel operation with up to 32 units, including units of different capacities.
• Synchronization: Automatic synchronization with phase matching, positive/negative slip-frequency regulation, and unloaded start paralleling.
• Breaker control: GCB/MCB breaker open/close control with automatic ATS switching and dead-bus emergency operation.
• Monitoring & diagnostics: Real-time monitoring of speed, temperature, pressure, voltage, and current; self-diagnostic with battery-backed real-time clock; stores up to 300 events.
• Protection: Comprehensive generator and turbine protection functions (specific trip points to be confirmed per configuration).
• Communication: Specific protocol support not confirmed in available references; verify per unit and firmware.
• Power supply: Not confirmed in available references for this exact suffix; verify against nameplate before energizing.
• Mounting: Panel-mount controller assembly; exact dimensions not confirmed in available references.

Note: Some distributor listings describe 8440-2047 broadly as a “turbine control module” without series-level detail. The most specific available reference identifies it as an easYgen-3500-5 Marine controller. Always verify against the actual nameplate.



Product Introduction (No Fluff)

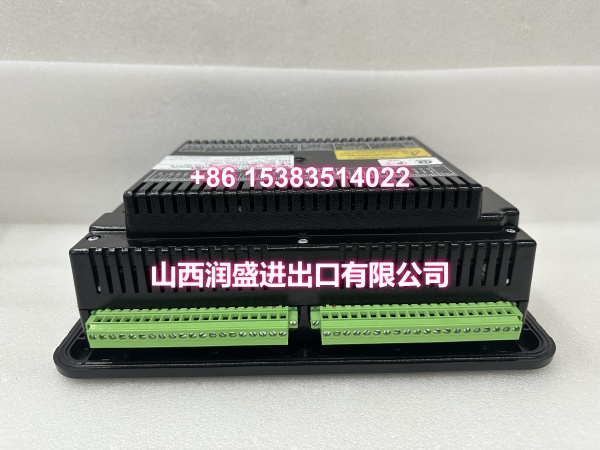

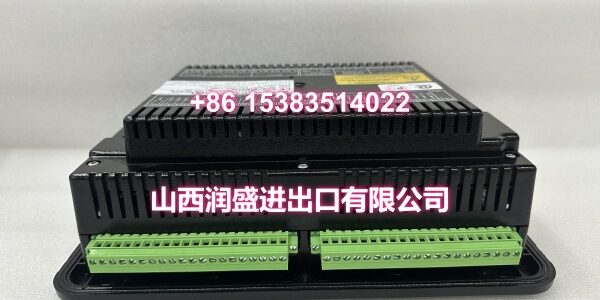

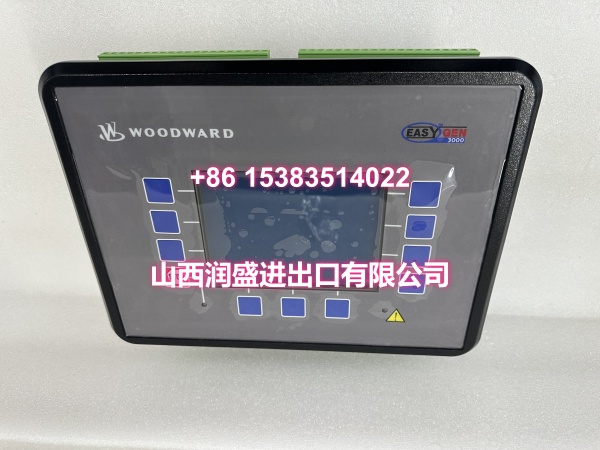

The WOODWARD 8440-2047 is an easYgen-3500-series digital controller, identified as the easYgen-3500-5 Marine variant. It provides integrated speed/load control, automatic synchronization, breaker management, proportional load sharing for up to 32 units, and real-time monitoring with event recording for generator sets and industrial/marine turbine applications.

For system integrators and plant engineers, this controller consolidates prime-mover regulation, synchronization, protection, and paralleling logic into a single configurable platform. Its Marine designation and multi-unit load-sharing capability make it suitable for vessel power systems, island-mode plants, CHP installations, and grid-parallel peaking applications. Unlike the SPM-D11 synchronizer (which only biases an external governor and AVR), the easYgen-3500 family provides full engine/turbine control and protection.



QA & Testing SOP (Dynamic & Transparent)

1. Visual & counterfeit inspection — Verify part number 8440-2047, revision markings, connector condition, and signs of rework, corrosion, or heat damage.
2. ESD-safe handling — Store and ship in anti-static packaging; handle with grounded wrist straps and ESD mats.
3. Nameplate verification — Confirm the easYgen-3500-5 Marine designation, power supply rating, and firmware revision before installation.
4. Power-up check — Apply rated supply per nameplate, confirm display initialization, LED status, and access to configuration menus.
5. I/O & communication sanity check — Where test equipment permits, verify discrete/analog I/O response and communication interface presence. Full synchronization and load-sharing validation requires the generator system, governor/ECU, AVR, and breaker.

Note: Bench testing confirms hardware health. Final synchronization, load sharing, and protection tuning require the complete generator/turbine system.

Installation Pitfalls & Guide (Engineer to Engineer)

❗ Verify the power supply rating before energizing. The exact supply voltage for 8440-2047 is not confirmed in available references. Do not assume 24 V DC or 110/220 V AC without nameplate confirmation.

❗ Do not confuse this with an SPM-D synchronizer. The easYgen-3500 is a full controller, not a standalone synchronizer module. Substitution requires verifying I/O mapping, communication, and protection configuration.

❗ Do not hot-swap during active operation. Removing the controller while the generator or turbine is online can cause loss of speed/load control and unsafe breaker behavior.

❗ Verify CT/VT and breaker wiring. Incorrect phasing or polarity can cause false protection trips, incorrect load sharing, or unsafe synchronization.

❗ Confirm ECU/governor and AVR compatibility. The easYgen-3500-5 Marine interfaces with engine ECUs and AVRs; protocol and signal compatibility must be verified per installation.

Replacement steps:

1. Pre-install: Lock out energy sources, confirm the generator/turbine is stopped/secured, and record existing configuration parameters.
2. Removal: Label all wiring, photograph terminal assignments, disconnect I/O, CT/VT, communication, and breaker control cables.
3. Install: Seat the replacement securely, reconnect wiring with verified polarity, and confirm CT/VT and breaker wiring.
4. Commissioning: Power up the controller, verify display and diagnostics, test I/O and communication, then validate synchronization and load sharing under controlled conditions.



Technical FAQ

What series is 8440-2047? Available references identify it as an easYgen-3500-series controller, specifically easYgen-3500-5 Marine.

Is it a synchronizer like the SPM-D11? No. The easYgen-3500 is a full generator/turbine controller with integrated synchronization, whereas the SPM-D11 is a standalone synchronizer that biases external governor and AVR units.

Can it handle multi-unit paralleling? Yes. It supports proportional load sharing for up to 32 units, including units of different capacities.

What applications is it suitable for? Marine power systems, emergency backup, CHP, island-mode main power, and grid-parallel peak shaving for generator sets and industrial turbines.

Can I replace it without reprogramming? Not automatically. Speed/load setpoints, synchronization parameters, protection settings, load-sharing configuration, and breaker timing must be verified. Treat replacement as a recommissioning event.

What voltage does it require? Not confirmed in available references for this exact suffix. Always verify against the actual nameplate before energizing.
