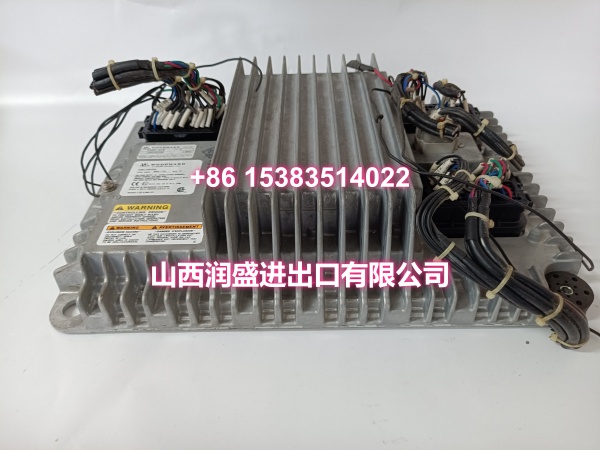

Product Core Brief

• Model: 8402-119
• Brand: WOODWARD
• Series: 505E Series Microprocessor Control
• Core Function: Digital speed, load, and sequencing control for industrial steam turbines and turbo-generators.
• Product Type: 505E Turbine Governor Control Module / Panel-Mount Operator Control Unit
• Key Specs: 220 V AC, 50 Hz | 2-line × 24-character display | Menu-driven configuration | Single or split-range actuator drive | Speed/load/isochronous control
• Condition: New Original / New Surplus (verify per lot)

Key Technical Specifications

• Controller type: 505E-series digital microprocessor turbine governor control module.
• Application: Steam turbines, turbo-generators, and industrial rotating equipment requiring speed and load control.
• Control modes: Speed control, load control, isochronous operation, and synchronization support.
• Display: 2-line × 24-character front-panel operator display with menu-driven configuration.
• Actuator drive: Single or dual staged/split-range actuator output for steam inlet valve positioning.
• Configuration modes: Programming mode and run mode.
• Power supply: 220 V AC, 50 Hz per available listings; confirm against nameplate before energizing.
• Processor speed: 50 MHz per published references.
• Memory: Program and data capacity listed as 53 MB each in public references.
• Operating temperature: 0 °C to 60 °C per available references.
• Humidity: Up to 60% non-condensing.
• Mounting: Modular panel-mount controller assembly.
• Weight: Approximately 6.5 kg (reference value for comparable 505E-series modules).

Note: Available distributor listings identify 8402-119 as a 505E-series turbine governor control module, often grouped with 8402-319. Some third-party sources provide limited or conflicting detail, so nameplate verification is essential before installation.

Product Introduction (No Fluff)

The WOODWARD 8402-119 is a 505E-series microprocessor-based turbine governor control module used to manage start/stop sequencing, acceleration, speed regulation, load control, and synchronization on industrial steam turbines. It drives single or dual staged actuators to position steam inlet valves while continuously monitoring speed, process variables, and I/O status.

For system integrators and plant engineers, this controller consolidates turbine sequencing, protection logic, operator display, and actuator drive into one configurable panel-mount module. That reduces panel wiring, shortens commissioning, and provides a practical replacement path when legacy 505E hardware reaches obsolescence.

QA & Testing SOP (Dynamic & Transparent)

1. Visual & counterfeit inspection — Verify part number 8402-119, serial/lot markings, PCB revision, connector condition, and signs of rework, corrosion, or heat damage.
2. ESD-safe handling — Stored and shipped in anti-static packaging; handled with grounded wrist straps and ESD mats.
3. Power-up & firmware check — Apply rated 220 V AC per nameplate, confirm boot sequence, display initialization, and access to configuration menus.
4. Display & keypad verification — Confirm all display segments/characters and front-panel keys respond correctly.
5. I/O sanity check — Where test equipment permits, verify actuator output stage readiness and digital/analog interface presence. Full turbine-loop validation is completed during site commissioning.

Note: Bench testing confirms hardware health. Final speed/load tuning requires the actuator, speed pickup, and process instrumentation.

Installation Pitfalls & Guide (Engineer to Engineer)

❗ Verify 220 V AC nameplate rating before energizing. Applying the wrong supply voltage or frequency can permanently damage the controller. Do not assume compatibility with 24 V DC or 110 V AC systems.

❗ Do not hot-swap during active turbine operation. This is a governor-class controller; removing it while the turbine is online can cause loss of speed/load control and unsafe valve behavior.

❗ Confirm actuator compatibility and fail-safe behavior. The actuator output must match the existing staged/split-range actuator’s range, polarity, and trip response.

❗ Grounding and noise discipline matter. Speed pickup, actuator, and analog signal cables should be routed away from VFD outputs, contactor coils, and high-current feeds. Poor grounding can cause drift, instability, or false trips.

Replacement steps:

1. Pre-install: Lock out energy sources, confirm turbine is tripped/secured, record existing parameters, and verify replacement nameplate data.
2. Removal: Label all wiring, photograph terminal assignments, disconnect I/O and communications, then remove the module.
3. Install: Seat the replacement securely, reconnect I/O with correct polarity, and verify grounding.
4. Power-on test: Apply power, confirm display and diagnostics, verify I/O readings, then recommission under controlled conditions with the turbine offline or in manual test mode.

Technical FAQ

Is 8402-119 a 505E turbine controller? Yes. Available distributor listings identify it as a 505E-series turbine governor control module, commonly referenced alongside 8402-319.

What voltage does it require? Listed specifications indicate 220 V AC, 50 Hz. Always confirm against the actual nameplate before installation.

Can it replace older 505 units? The 505E family is described as a replacement path for legacy 505 governors, but configuration, I/O mapping, and actuator compatibility must be verified before substitution.

Can I replace it without reprogramming? Not automatically. Speed setpoints, actuator limits, critical-speed bands, trip logic, and I/O assignments must be verified. Treat replacement as a recommissioning event.

What applications is it suitable for? Steam turbines, turbo-generators, and industrial rotating equipment requiring digital speed and load control with single or split-range actuator drive.
