Product Core Brief
- Model: 8237-1600
- Brand: WOODWARD
- Series: Protech GII Overspeed Protection System
- Core Function: Triple-modular-redundant (TMR) overspeed protection module that triggers a safe turbine trip when dangerous overspeed or over-acceleration is detected.
- Product Type: TMR Overspeed Protection / Turbine Safety Trip Module
- Key Specs: 2oo3 voting architecture | Dual redundant trip relay outputs | 4–20 mA speed readout | Modbus communication | Hot-swappable panel-mount design | IEC 3C2 anti-corrosion conformal coating
- Condition: New Original / New Surplus
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Part Number | 8237-1600 |
| Manufacturer | WOODWARD, Inc. (Fort Collins, CO, USA) |
| Product Family | Protech GII Overspeed Protection System |
| Architecture | Triple Modular Redundancy (TMR) / 2-out-of-3 (2oo3) voting |
| Protection Functions | Overspeed detection, over-acceleration detection, sensor wire-break detection |
| Trip Outputs | Dual redundant trip relays |
| Speed Readout | 4–20 mA analog output |
| Communication | Modbus protocol |
| Installation | Panel-mount with backplane; hot-swappable |
| Environmental Rating | IEC 721-3-3 1994 Class 3C2 (H₂S/SO₂ corrosion-resistant conformal coating) |
| Typical Applications | Steam turbines, gas turbines, hydro turbines |
| Approx. Dimensions / Weight | ~140 × 95 × 82 mm / ~0.7 kg (module-level; verify per revision) |
Note: Exact firmware revision, trip setpoints, and I/O configuration must be confirmed against the installed unit label or Woodward technical documentation.
Product Introduction (No Fluff)

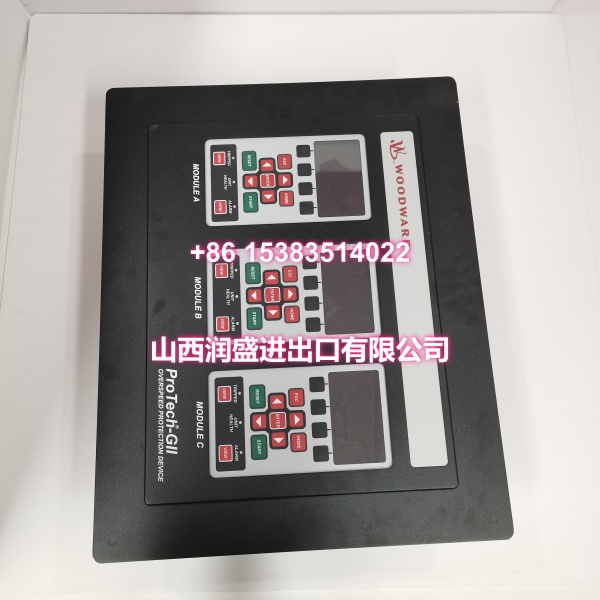

The 8237-1600 is a core module in Woodward’s Protech GII overspeed protection system. It is designed as the last line of defense for steam, gas, and hydro turbines — detecting dangerous overspeed or over-acceleration and issuing an immediate trip signal to shut down the turbine before catastrophic damage occurs.
What sets this module apart is its Triple Modular Redundancy (TMR) architecture with 2oo3 voting logic. Three independent processing channels (A, B, C) continuously cross-check each other. If one channel fails, the remaining two still make the correct decision — preventing both nuisance trips and dangerous failures to trip.
From a system-integration perspective, the 8237-1600 is a safety instrumented system (SIS) component, not a governor. It does not control turbine speed during normal operation; it monitors speed independently and trips the turbine when limits are exceeded. It coexists with the main governor (e.g., a 505E or MicroNet controller) and provides an independent safety layer.
QA & Testing SOP (Dynamic & Transparent)
Overspeed protection modules are safety-critical — a latent fault may not reveal itself until it is too late. Here is how we verify them:
- Visual & anti-counterfeit inspection — Confirm part number 8237-1600, revision label, serial number, and conformal coating condition. Check for corrosion, cracked housings, or damaged connectors.
- Backplane connector inspection — Examine the edge connector for bent pins, oxidation, or wear. Poor backplane contact is a leading cause of intermittent faults in redundant modules.
- Power-up & self-diagnostics — Insert into a compatible Protech GII test rack. Apply rated power. Confirm clean boot, module identification, and no fault codes on self-test.
- Channel health verification — Confirm all three internal channels (A, B, C) are online and reporting healthy status. A module with a degraded channel may still power up but lacks full TMR capability.
- Trip relay verification — Simulate an overspeed condition and verify that both redundant trip relays de-energize as expected. Check relay contact resistance and response time.
- Speed input simulation — Apply a calibrated speed signal and verify the 4–20 mA speed readout tracks correctly.
- Packaging — ESD-bagged, connectors capped, foam-padded, and shipped in impact-resistant boxing.
Tools: Compatible Protech GII test rack, calibrated speed signal simulator, multimeter, relay test fixture.
Installation Pitfalls & Guide (Engineer to Engineer)
❗ This is NOT a governor. The 8237-1600 is a safety trip module. It does not regulate turbine speed during normal operation. Do not confuse it with a 505E or MicroNet governor controller.
❗ Verify TMR channel health before commissioning. A Protech GII module with one degraded channel may still appear operational but has lost its redundancy margin. Always confirm all three channels are healthy.
❗ Match trip logic to your system. The 2oo3 voting architecture means the module requires agreement from at least two of three channels to trip. Ensure your turbine protection philosophy aligns with this behavior.
❗ Do not skip trip testing. After installation, perform a supervised trip test to verify that the relay outputs correctly de-energize the trip circuit. Never assume a new module is functional without testing.
❗ Confirm sensor wiring integrity. The module detects sensor wire-breaks, but incorrect wiring or grounding can cause false readings. Verify all speed sensor inputs before energizing.
Replacement steps:
- Place the turbine in a safe shutdown state. Document all wiring and configuration settings.
- If the system supports hot-swap, follow Woodward’s procedure for live replacement. Otherwise, de-energize the rack.
- Remove the faulty module. Inspect the backplane slot for debris or bent pins.
- Seat the replacement module. Restore power, verify all three channels are healthy, and perform a supervised trip test before returning to service.
Technical FAQ
Can you offer price flexibility for bulk or repeat orders? Yes. Pricing depends on condition (new original vs. new surplus), revision, and quantity. We can discuss volume pricing for critical spares packages.
What warranty do you provide? Warranty terms vary by condition and source. New original units carry manufacturer-backed coverage where applicable; new surplus units carry our tested-unit warranty. Terms are confirmed before shipment.
Is this directly compatible with my existing Protech GII rack? In most cases, yes — the 8237-1600 is a standard Protech GII module designed for hot-swappable installation in compatible Woodward racks. However, you must confirm the firmware revision and configuration match your installed system.
Can this replace older Protech or ProTech modules? Potentially, but not automatically. Woodward has multiple generations of overspeed protection products (ProTech, ProTech GII, etc.). You must confirm rack compatibility, firmware, and I/O configuration before cross-referencing.
Is this model still available or obsolete? The Protech GII platform remains an active product line for Woodward. Individual module availability depends on revision and regional stock. For critical turbine installations, keeping a tested spare on site is strongly recommended.
If you can share the turbine model, existing Protech GII rack configuration, and firmware revision of the module you are replacing, I can help confirm compatibility before you commit to a purchase.
