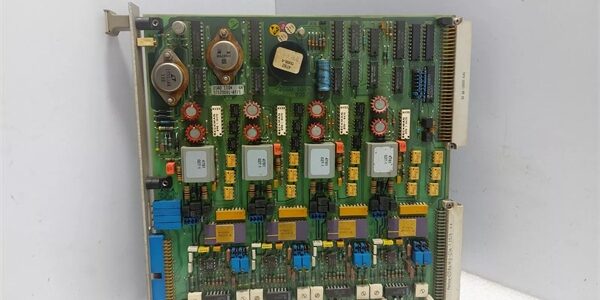

Product Core Brief

• Model: DSAX110, part number 57120001-PC, kit variant DSAX110K02
• Brand: ABB
• Series: S100 rack I/O hardware for Advant Mod300 legacy DCS systems
• Core Function: Combine 8 analog input channels for transmitter readings and 8 analog output channels for modulating control valves in a single rack slot
• Product Type: Slide-in S100 rack combined analog I/O PCB, paired exclusively with DSTA001 / DSTA001B field termination unit
• Key Specs: 8 single-ended AI + 8 single-ended AO | 12-bit ADC/DAC resolution | Hot-swap certified | Group galvanic isolationNote: Discontinued legacy rack module, stocked inventory is New Surplus with intact factory anti-static sealed packaging.

Key Technical Specifications

• Auxiliary operating supply: 24VDC ±20% DC power feed, total power draw ≤2.8W
• Analog input supported signals: 0–10V unipolar voltage, 0–20mA, 4–20mA current loops; built-in 250Ω precision shunt resistor
• Analog output supported signals: 0–10V unipolar voltage, 0–20mA, 4–20mA unipolar current loops
• ADC / DAC resolution: 12-bit, maximum full-scale static error ±0.05% with integrated 250Ω shunt
• Maximum allowable load resistance per AO mA channel: 850 Ohms
• Galvanic isolation: Entire combined I/O bank isolated as one group from S100 rack backplane logic
• Onboard diagnostics: Per-channel open-loop detection, module undervoltage fault indication via front LEDs
• Circuit protection: PTC self-resetting short-circuit foldback limiting on all AO channels, reverse supply voltage blocking
• Hot-swap rating: Fully hot-swappable on energized Mod300 S100 backplane racks
• Operating temperature range: -20°C to +60°C full rated channel load; linear accuracy derates above 60°C
• Storage environmental limits: -40°C to +85°C, 5%–95% RH non-condensing
• Physical dimensions: 210mm D × 18mm W × 226mm H; unit mass 0.40kg
• Compliance standards: CE, UL, IEC 61000-6-2 Class A industrial EMC
• System compatibility: Advant Mod300 racks with AC410 / AC460 controllers; incompatible with S800, AC800M, Symphony HR, UNITROL, S400 DSAX452 remote I/O platforms

Product Introduction

This mixed analog I/O rack card consolidates sensor measurement and valve drive outputs into one slot to reduce total cabinet rack space for Mod300 process control systems. Single-group galvanic isolation suppresses ground-loop offset generated by long MCC-to-field transmitter wiring runs.Self-resetting PTC current limiting prevents permanent DAC damage from field wiring shorts, and hot-swap capability allows module replacement without full rack power shutdown for non-critical loop segments.

QA & Testing SOP (Transparency Building)

1. Incoming Inspection: Cross-reference serial numbers against ABB Mod300 legacy component trace databases; inspect backplane gold edge fingers for oxidation, front channel LED segment integrity, PCB conformal coating for peeling; verify factory static packaging seal remains unbroken for surplus inventory.
2. Live Testing: Mount the unit to a Mod300 rack test bench paired with a controller simulator, precision mA/VDC signal generators, and adjustable resistive load banks up to 850Ω; run uninterrupted 24-hour cyclic full-range AI sampling and AO ramping across all 16 channels; use a Fluke 115 to log steady 24VDC auxiliary supply voltage through the full test cycle.
3. Electrical Testing: Perform 500VAC hipot insulation testing between the full AI/AO signal group and rack backplane logic ground; pass threshold set at >10MΩ insulation resistance; inject short-circuit and reversed 24VDC supply faults to confirm hardware lockout activates without damaging ADC/DAC semiconductors.
4. Firmware/Config Backup: No user-programmable onboard firmware; photograph DSTA001 terminal pin layouts and document factory signal range default values for site commissioning reference.
5. Final QC & Packaging: Torque all DSTA001 terminal screw connections to OEM torque specifications; enclose the board in static-dissipative foam; attach a printed QC tag listing serial number and completed test metrics before carton sealing.

Installation Pitfalls & Guide (Engineer to Engineer)

❗Firmware Mismatch Risk: Outdated Mod300 rack controller firmware lacks calibrated ADC/DAC timing profiles for the module. Fault outcome: Drifting analog input readings, non-linear valve output ramps during process load transients. Mitigation: Flash matching validated firmware revisions to the Mod300 CPU before rack power-up; archive compatible firmware files to plant engineering servers.❗Excessive Field Load Resistance Risk: Connecting actuators with total loop resistance above 850Ω clips full-scale 20mA AO output. Fault outcome: Valves cannot reach full open or closed stroke positions, incomplete process modulation range. Mitigation: Calculate total cable + actuator resistance before loop wiring; add signal repeaters for long trunk runs exceeding resistance limits.❗Platform Incompatibility Risk: Attempting to install the module into S800 or UNITROL racks creates mismatched backplane pinouts and unregulated supply exposure. Fault outcome: Burned combined analog I/O circuit semiconductors, permanent unit failure. Mitigation: Only deploy the unit within dedicated Mod300 racks paired with DSTA001 connection units.❗Shared Common Rail Wiring Error: Jumping negative return lines across multiple isolated signal loops breaks group galvanic separation performance. Fault outcome: Fluctuating tank level and pressure readings when adjacent AO channels ramp simultaneously. Mitigation: Maintain isolated negative return wiring for every individual current loop per the DSTA001 wiring schematic.❗ESD Dangers: Low-humidity power plant control room air generates static charge that damages delicate ADC/DAC integrated circuits on the PCB. Field service logs show ungrounded handling creates slow measurement offset faults that require multiple calibration passes to isolate. Mitigation: Establish direct contact with bare cabinet chassis ground metal for three full seconds before touching backplane edge fingers or field terminal blocks.

4-Step Replacement Guide

1. Pre-install: Set the Mod300 controller to manual hold mode to lock all closed-loop control setpoints; photograph all field transmitter and valve actuator wiring assignments on the connection unit.
2. Removal: Unlatch the module from the rack slot by releasing retention clips and pulling straight outward off gold backplane contacts; leave all field wiring terminated to the connection unit to eliminate full retermination labor.
3. Install: Align the new unit’s rear backplane contacts with the rack slot and push fully seated until retention clips audibly lock; replicate loop resistance calculations and channel signal range parameter settings within Mod300 configuration software to match original process requirements.
4. Power-on Test: Energize 24VDC auxiliary rack supply; inject calibrated mA/VDC test signals to all eight input channels and send full-range 4–20mA setpoint commands to all eight output channels via the controller simulator, confirm stable linear analog readback and unclipped output current values with zero short-circuit fault flags accumulating during 30 minutes of idle loop testing before restoring live process control logic.

FAQ (Frequently Asked Questions)

Q: Can this unit directly replace separate DSAI130 AI and DSAO110 AO single-function rack modules without full DCS point rework?A: No, this combined unit merges 8 AI and 8 AO into one slot with unique terminal pin mapping. Cross swap requires full retermination of all field wiring and re-indexing all analog point addresses in the Mod300 database.Q: Does hot-swap capability remove the requirement to set the controller to manual hold mode during replacement?A: Hot-swap only protects the module’s internal circuits from power surge damage; it does not maintain steady analog sampling and output values during the swap window. Manual hold mode remains mandatory to prevent unplanned valve stroke movement and distorted loop readings.Q: What warranty coverage applies to surplus stocked units?A: A 12-month limited warranty only covers factory manufacturing defects. Damage from over-resistance AO field loops, ungrounded ESD handling, cross-platform rack installation, or sustained channel wiring short-circuits is excluded from warranty claims.Q: If one AI or AO channel fails, can individual internal circuit components be repaired on-site?A: Field repair of damaged ADC/DAC circuits is not recommended for critical boiler and tank farm control systems. Repaired PCB trace paths degrade group isolation performance and raise risk of unplanned process drift events; full module swap is the standard site maintenance procedure.Q: Can multiple units share a single 24VDC auxiliary power circuit in one Mod300 rack?A: Multiple units may share one 24VDC supply only if the supply unit maintains 20% extra current headroom above total combined module power draw. Independent auxiliary feed wiring is recommended for racks with five or more installed combined analog I/O modules to eliminate voltage sag during simultaneous full-scale ramping events.Q: Is this combined analog I/O module rated for Class 1 Div 2 hazardous cabinet deployment inside refinery MCC rooms?A: No, the open rack slide-in PCB design lacks intrinsic safety certification for flammable vapor environments. Flameproof dedicated analog I/O enclosures are required for hazardous area process plant installations.Q: What long-term upgrade path exists as this component reaches ABB end-of-support status?A: Modern ABB control deployments use separate S800 AI810 analog input and AO801 analog output modules for new cabinet builds. Retrofit swaps require full Mod300 rack migration, DSTA wiring rework, and complete analog channel parameter reconfiguration in the DCS control database.
