Product Core Brief

• Model: DSAX452, OEM order code 5712289-A, exchange part EXC5712289-A
• Brand: ABB
• Series: S400 Remote I/O for Advant Master legacy DCS systems
• Core Function: Combine differential analog input sampling and analog output drive for remote process cabinets connected via MasterFieldbus serial trunk

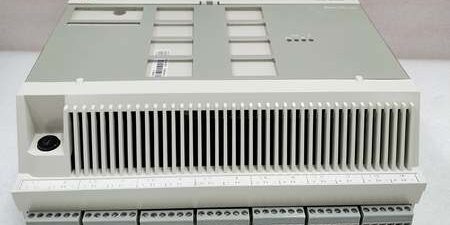

• Product Type: Standalone cast aluminum chassis remote analog I/O basic unit, direct field terminal wiring (no separate connection unit)
• Key Specs: 14 differential 12-bit analog inputs | 6 single-ended 10-bit analog outputs | MasterFieldbus serial communication | 24VDC auxiliary powerNote: Discontinued legacy remote I/O hardware, stocked inventory is New Surplus with factory sealed anti-static packaging.

Key Technical Specifications

• Auxiliary operating supply: 24VDC ±20% DC input, total power consumption ≤4.2W
• Analog input bank: 14 fully differential channels, 12-bit ADC resolution
• Supported input signal ranges: ±10VDC bipolar voltage, ±20mA bipolar current loops
• Analog output bank: 6 single-ended channels, 10-bit DAC resolution
• Supported output signal ranges: 0–10VDC unipolar voltage, 0–20mA / 4–20mA unipolar current loops
• Maximum mA loop load resistance per output: 750 Ohms
• Fieldbus interface: Isolated MasterFieldbus serial bus, max 750m trunk length to Advant Master process station
• Channel isolation: Group-level galvanic separation between analog I/O bank and fieldbus logic
• Circuit protection: Per-channel overvoltage transient clamping, reverse 24VDC supply blocking, short-circuit foldback limiting on output channels
• Continuous operating temperature: -20°C to +60°C full signal load; linear accuracy derate above 60°C
• Storage environmental limits: -40°C to +85°C, 5%–95% RH non-condensing
• Physical construction: Die-cast aluminum chassis serving as integrated heat sink; integrated screw terminal block front panel
• Unit mass: 0.50kg
• Compliance standards: CE, UL, IEC 61000-6-2 Class A industrial EMC
• System compatibility: Advant Master DCS with AC410/AC460 process stations; incompatible with Mod300 S100, S800, AC800M, UNITROL, AC500 PLC platforms

Product Introduction

This all-in-one remote I/O unit combines high-density differential analog sensing and analog valve drive outputs for distributed process cabinets far from the main Advant Master control room. The aluminum chassis dissipates heat without auxiliary cooling fans for low-maintenance field installations.MasterFieldbus serial cabling cuts field wiring volume by consolidating all 20 analog signal paths into one two-wire trunk back to the central process station, reducing cabinet wiring labor for remote boiler and tank farms.

QA & Testing SOP (Transparency Building)

1. Incoming Inspection: Cross-reference serial numbers against ABB Advant Master S400 component trace databases; inspect cast chassis for deformation, front terminal screw spring tension, channel LED segment integrity, internal PCB conformal coating for peeling; validate unbroken factory static packaging seal for surplus stock.
2. Live Testing: Mount the unit to an S400 field test bench paired with an Advant Master process station simulator, precision mA/VDC signal generators, and adjustable resistive load banks up to 750Ω; run uninterrupted 24-hour cyclic full-range input sampling and output ramping across all channels; use a Fluke 115 to log steady 24VDC auxiliary supply voltage through the full test cycle.
3. Electrical Testing: Perform 500VAC hipot insulation testing between the full analog I/O group and MasterFieldbus logic ground; pass threshold set at >10MΩ insulation resistance; inject short-circuit and reversed 24VDC supply faults to confirm hardware lockout activates without damaging ADC/DAC semiconductors.
4. Firmware/Config Backup: Record factory MasterFieldbus interface firmware revision via Advant Master configuration software; photograph front terminal pin assignments and document factory signal range default values for remote cabinet commissioning reference.
5. Final QC & Packaging: Torque all front field terminal screw connections to OEM torque specifications; enclose the unit in static-dissipative foam; attach a printed QC tag listing serial number and completed test metrics before carton sealing.

Installation Pitfalls & Guide (Engineer to Engineer)

❗Firmware Mismatch Risk: Outdated Advant Master process station firmware lacks calibrated MasterFieldbus timing profiles for the unit. Fault outcome: Intermittent loss of all remote analog readings, unmodulated valve output drift during process load transients. Mitigation: Flash matching validated firmware revisions to the AC410/AC460 process station before cabinet power-up; archive compatible firmware files to plant engineering servers.❗Excessive Field Load Resistance Risk: Connecting actuators with total loop resistance above 750Ω clips full-scale 20mA output. Fault outcome: Valves cannot reach full open or closed stroke positions, incomplete process modulation range. Mitigation: Calculate total cable + actuator resistance before loop wiring; install signal repeaters for trunk runs exceeding resistance limits.❗Platform Incompatibility Risk: Attempting to deploy the unit on Mod300 S100 or S800 racks creates unsupported bus protocol mismatch and unregulated supply exposure. Fault outcome: No MasterFieldbus communication, burned analog I/O circuit semiconductors, permanent unit failure. Mitigation: Only deploy the unit within Advant Master S400 remote cabinet architectures paired with matching MasterFieldbus process station interfaces.❗Unseparated Power & Signal Wiring Error: Routing high-current fan/pump power cables parallel to analog field wiring induces induced noise. Fault outcome: Fluctuating pressure/temperature input readings and unstable valve output ramps. Mitigation: Separate analog signal cabling and AC power wiring with minimum 120mm physical spacing inside cabinet cable trays per S400 wiring schematics.❗ESD Dangers: Low-humidity remote field cabinet air generates static charge that damages delicate ADC/DAC integrated circuits on the internal PCB. Field service logs show ungrounded handling creates slow measurement offset faults that require multiple on-site calibration passes to isolate. Mitigation: Establish direct contact with bare aluminum chassis ground metal for three full seconds before touching front field terminal blocks or opening the unit’s service access lid.

4-Step Replacement Guide

1. Pre-install: Set the Advant Master process station to manual hold mode to lock all remote analog loop setpoints; photograph all field transmitter and valve actuator wiring terminal assignments on the unit’s front terminal block and record current MasterFieldbus node address DIP switch settings for the faulty hardware.
2. Removal: Disconnect every field analog wiring harness one channel at a time and label conductors; unplug the two-wire MasterFieldbus trunk cable, release DIN rail mounting latches and slide the faulty unit straight off the rail without scraping internal PCB components against cabinet metal framing.
3. Install: Clip the new unit fully onto the TS35 DIN rail and engage the chassis ground contact; replicate every photographed front terminal wiring connection to match channel numbering exactly, reconfigure the DIP switch MasterFieldbus node address to match the original setting, then reattach the MasterFieldbus trunk cable fully seated into the bus terminal port.
4. Power-on Test: Energize 24VDC auxiliary cabinet supply (main process field equipment stays offline for initial validation); inject calibrated mA/VDC test signals to all 14 input channels and send full-range 4–20mA setpoint commands to all six output channels via the process station simulator, confirm stable linear analog readback and unclipped output current values with zero short-circuit fault flags accumulating during 30 minutes of idle channel polling before restoring live remote process control logic.

FAQ (Frequently Asked Questions)

Q: Can this unit directly swap with Mod300 DSAO120 or DSAI130 rack I/O without full DCS point rework?A: No, this unit uses MasterFieldbus serial remote architecture while Mod300 S100 relies on rack backplane ModuleBus. Cross swap requires full remote cabinet wiring rework, bus interface hardware replacement, and complete analog point database reindexing in Advant configuration software.Q: Does the hardware support hot-swapping while the MasterFieldbus trunk remains energized?A: Hot-swap operation is not OEM-rated or approved. Removing the unit under live bus power creates unfiltered analog transients that trigger uncontrolled valve stroke movement and unplanned process interlock trips. Full 24VDC auxiliary power shutdown is mandatory for all unit swaps.Q: What warranty coverage applies to surplus stocked units?A: A 12-month limited warranty only covers factory manufacturing defects. Damage from over-resistance output loops, ungrounded ESD handling, cross-platform DCS installation, or sustained channel wiring short-circuits is excluded from warranty claims.Q: If a single analog input or output channel fails, can individual internal circuit components be repaired on-site?A: Field repair of damaged internal ADC/DAC circuits is not recommended for critical remote boiler and tank farm control systems. Repaired PCB trace paths degrade channel isolation performance and raise risk of unplanned process drift events; full unit swap is the standard site maintenance procedure.Q: Can multiple units share a single MasterFieldbus two-wire trunk segment for multi-cabinet remote field installations?A: The MasterFieldbus bus supports up to 32 unique node addresses on one unbroken trunk line. Each installed unit must carry a distinct DIP switch node ID to avoid bus conflict events that drop all analog I/O communication.Q: Is this combined analog I/O unit rated for Class 1 Div 2 hazardous cabinet deployment inside refinery remote pump MCC rooms?A: No, the open service-lid aluminum chassis design lacks intrinsic safety certification for flammable vapor environments. Flameproof dedicated I/O enclosures are required for hazardous area remote process installations.Q: What long-term hardware upgrade path exists as this component reaches ABB end-of-support status?A: Modern ABB distributed control deployments use S800 AI/AO rack modules paired with CI810B AF100 fieldbus interfaces for new cabinet builds. Full Advant Master cabinet migration, remote field wiring rework, and complete analog channel parameter reconfiguration in the DCS control database are required for a direct functional retrofit.
