Product Core Brief

• Model: 5X00497G01
• Brand: Emerson (Ovation System)
• Series: Ovation DCS I/O Subsystem
• Core Function: 4-slot I/O base (backplane) that provides mechanical mounting, backplane communication, and power distribution for up to four Ovation I/O modules in a single rack position — the structural foundation of the Ovation I/O subsystem.
• Product Type: Ovation DCS 4-Slot I/O Base (Backplane)
• Key Specs: 4 Module Slots | Hot-Swappable Module Support | Backplane Communication Bus | Power Distribution to I/O Modules | DIN-Rail or Rack Mount | Compatible with Full Range of Ovation 5X-Series I/O Modules
• Condition: New Original / New Surplus

Key Technical Specifications

• Base Model: 5X00497G01 (4-Slot I/O Base)
• Slot Capacity: 4 module slots per base — each slot accepts one Ovation I/O module (AI, AO, DI, DO, RTD, TC, SOE, etc.)
• Backplane Communication: Provides the internal communication bus that connects all I/O modules in the base to the Ovation controller via the rack’s communication path
• Power Distribution: Distributes logic power from the Ovation rack power supply to all installed I/O modules — no separate module power supplies needed
• Module Compatibility: Compatible with the full range of Emerson Ovation 5X-series I/O modules (AI, AO, DI, DO, RTD, TC, SOE, VP, FF, and specialty modules)
• Hot-Swap Support: Supports online module replacement — individual I/O modules can be inserted or removed from the base while the system is running, without disturbing adjacent modules
• Mounting: DIN-rail mountable or direct rack-mount in standard Ovation cabinet configurations
• Operating Environment: Designed for control-room or industrial cabinet environments; compatible with Ovation system operating temperature range (typically 0–55°C depending on cabinet airflow)
• Mechanical: Standard Ovation 5X-series form factor; mates with Ovation terminal assemblies and wiring bases
• Standards Compliance: Part of the Emerson Ovation DCS I/O subsystem, which meets IEC 61131-2 and Achilles certification standards for utility-grade applications



Product Introduction

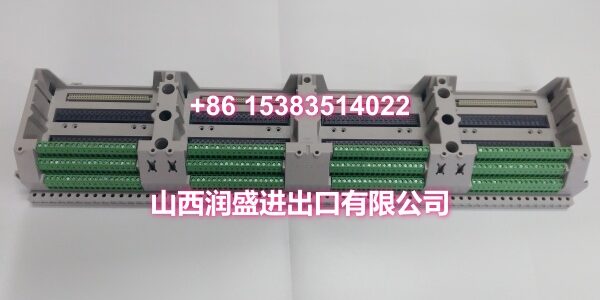

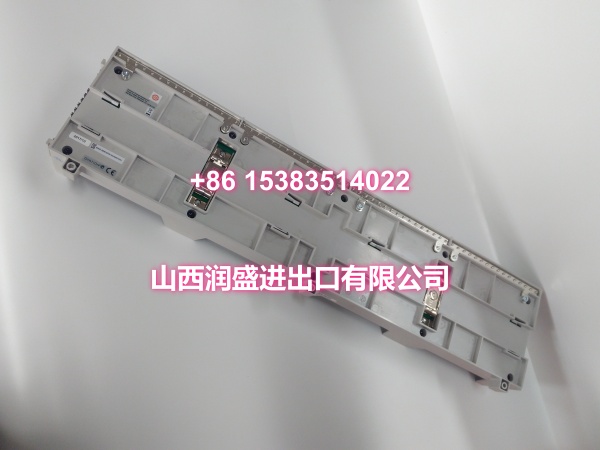

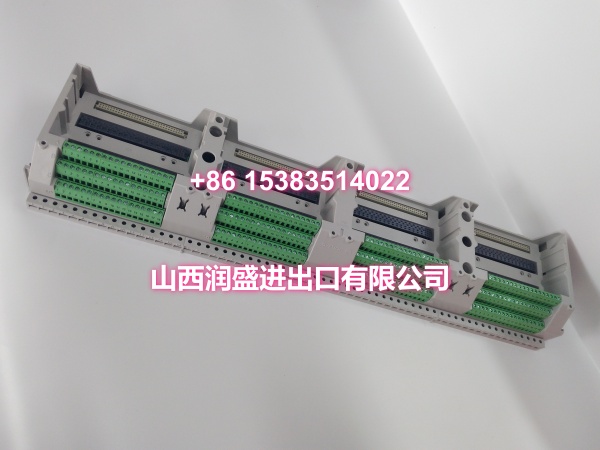

The 5X00497G01 is the 4-slot I/O base (backplane) for the Emerson Ovation distributed control system. If the I/O modules are the functional cards that read sensors and drive actuators, the 5X00497G01 is the foundation they plug into — it provides the mechanical mounting, the backplane communication bus, and the power distribution that makes the entire I/O subsystem work.

In an Ovation DCS installation, I/O modules don’t plug directly into the main rack — they plug into I/O bases like the 5X00497G01, which then mount into the rack or onto a DIN rail. Each 4-slot base can hold up to four I/O modules, and multiple bases can be installed in a single rack to scale the I/O count to match the application. The base handles the heavy lifting: it routes power from the rack’s power supply to each module, provides the communication path back to the controller, and mechanically secures the modules in place.

What makes the 5X00497G01 valuable for plant maintenance and system expansion is its modularity. Because it’s a standard Ovation component, it accepts the full range of 5X-series I/O modules — you can populate a single base with a mix of analog input, digital output, RTD, and specialty modules depending on what your process requires. And because the Ovation system supports hot-swapping, you can replace a failed I/O module in the base without powering down the rack or disturbing the other three modules. For MRO stocking, this means you can keep spare bases on hand alongside spare I/O modules, minimizing downtime when a base itself fails or when you need to add I/O capacity during a retrofit.

The 5X00497G01 is part of the legacy Ovation I/O architecture that has been deployed in thousands of power plants, water treatment facilities, and industrial process operations worldwide. Its compatibility with both older WDPF I/O subsystems and newer Ovation controllers makes it a key component for brownfield upgrades and legacy system maintenance.

Bottom line: if you’re expanding an Ovation I/O rack, replacing a failed base, or building out a new I/O drop, the 5X00497G01 is the standard 4-slot foundation you spec.

QA & Testing SOP

I/O bases are passive infrastructure components, but a failed base can take down all four modules plugged into it — so we validate both mechanical integrity and electrical continuity:

1. Physical & Anti-Counterfeit Inspection: We verify the OEM chassis integrity, check for authentic Emerson labeling and correct part number (5X00497G01), and inspect all four module slot connectors for bent pins, corrosion, or wear from previous module insertions.
2. Backplane Continuity Test: We verify electrical continuity across the backplane communication bus for all four slots — confirming that each slot has a clean, uninterrupted communication path to the rack’s controller interface.
3. Power Distribution Test: We apply rack power and verify that each of the four module slots receives the correct logic voltage on the backplane power rails — confirming that the base properly distributes power from the rack supply to all installed modules.
4. Module Seating Test: We insert a known-good Ovation I/O module into each slot and verify that the module powers up and is recognized by the controller — confirming that the mechanical and electrical interface between the base and the module is sound.
5. Hot-Swap Verification: We insert and remove a test module from each slot while the base is powered and confirm that adjacent modules remain unaffected — verifying that the hot-swap circuitry functions correctly.
6. Mounting Hardware Inspection: We verify that the DIN-rail clips or rack-mount hardware are intact and functional, and that the base seats securely without play or wobble.
7. Anti-Static Packaging: After validation, the base is sealed in industrial-grade ESD shielding bags with slot protectors installed for transit.

Installation Pitfalls & Guide

I/O base installation mistakes can cause module communication failures, power issues, or even damage to expensive I/O modules. These are the traps to avoid:

• ❗ Slot Orientation: Ovation I/O modules are keyed to fit only one orientation in the base slots. Forcing a module into a slot in the wrong orientation will bend the connector pins and potentially damage both the module and the base. Always align the module’s key with the slot’s guide before applying pressure.
• ❗ Power Sequencing: The I/O base receives its power from the Ovation rack’s power supply — it has no independent power input. Before installing modules into a new base, verify that the rack power supply is energized and that the base’s power distribution LEDs (if equipped) indicate normal operation. Installing modules into an unpowered base and then energizing the rack can cause inrush current issues.
• ❗ Module Compatibility: While the 5X00497G01 accepts the full range of Ovation 5X-series I/O modules, verify that the specific I/O modules you’re installing are compatible with your controller’s firmware version. A firmware mismatch between the controller and an I/O module will cause a communication fault, even if the base itself is functioning correctly.
• ❗ Grounding: The I/O base must be properly grounded through the rack’s grounding system. A floating or poorly grounded base can introduce noise into analog signals and cause erratic module behavior. Verify that the rack’s ground bus is connected to the plant’s instrument ground before installing the base.
• ❗ Slot Population Order: While Ovation modules can be installed in any slot, best practice is to populate slots from left to right and document the module layout in the controller’s I/O configuration. A mismatch between the physical module layout and the controller’s I/O configuration will cause I/O communication faults.
• ❗ Hot-Swap Caution: While the Ovation system supports hot-swapping of I/O modules, removing a module from a live base will cause all I/O points on that module to go to their fail-safe state. For critical control loops, perform module replacement during a low-activity period or scheduled maintenance window, and set affected points to “Out of Service” before removal.

Replacement Procedure:

1. Pre-Install: Back up the Ovation controller’s I/O configuration. Document the module layout in the existing base (which module type is in which slot). Set all I/O points on the modules in the base to “Out of Service” (Scan Off) and force them to safe states before removal.
2. Removal: Disconnect all field wiring from the terminal blocks associated with the modules in the base. Remove all I/O modules from the base slots one at a time (hot-swap supported). Open the base’s mounting clips or unscrew the rack-mount hardware and remove the base from the rack.
3. Install: Mount the new 5X00497G01 base into the rack position, securing it with the mounting clips or screws. Verify that the base is firmly seated and grounded. Insert the I/O modules into the correct slots, ensuring proper orientation and firm seating. Reconnect all field wiring per your documented terminal assignments.
4. Power-On Test: Verify that the rack power supply is energized and that the base is receiving power. The controller should automatically recognize all installed I/O modules via their electronic IDs. Restore points to “In Service” (Scan On). Verify that the controller shows all modules as healthy and that I/O communication is established. Force-test each I/O point to confirm correct operation.



Technical FAQ

What’s the difference between the 5X00497G01 and an I/O module? The 5X00497G01 is the I/O base (backplane) — it’s the passive infrastructure that provides mechanical mounting, communication, and power distribution. I/O modules (AI, AO, DI, DO, etc.) are the active cards that plug into the base and perform the actual signal conversion. You need both: the base is the foundation, and the modules are the functional components that plug into it.

How many I/O modules can I install in a 5X00497G01? Four I/O modules per base. If you need more I/O capacity, you can install multiple 4-slot bases in a single Ovation rack.

Can I mix different I/O module types in the same base? Yes. You can populate a single 5X00497G01 base with any combination of Ovation 5X-series I/O modules — analog input, analog output, digital input, digital output, RTD, thermocouple, SOE, etc. The controller’s I/O configuration defines what each module does, not the physical slot location.

Is the 5X00497G01 compatible with older WDPF I/O modules? The 5X00497G01 is designed for Ovation 5X-series I/O modules. For WDPF I/O compatibility, verify the specific module part numbers against Emerson’s compatibility documentation, as some legacy WDPF modules may require different base types or adapter hardware.

Can I replace a failed I/O base while the system is running? No. Unlike individual I/O modules (which are hot-swappable), the I/O base itself is not hot-swappable. Replacing a failed base requires removing all modules from the base, which will cause a loss of all I/O points on those modules. For critical applications, perform base replacement during a scheduled maintenance window with appropriate process safeguards in place.

Do you offer volume pricing for plant MRO stocking? Yes. I/O bases are common spare parts for any Ovation DCS installation, especially for plants doing I/O expansions or retrofits. We offer flexible pricing tiers for bulk MRO orders. Contact our sales team with your required quantity for a competitive quote.

Need the full Ovation I/O base wiring diagram, compatible I/O module part number list, or the rack mounting dimensions for the 5X00497G01? I can pull those up for you.
