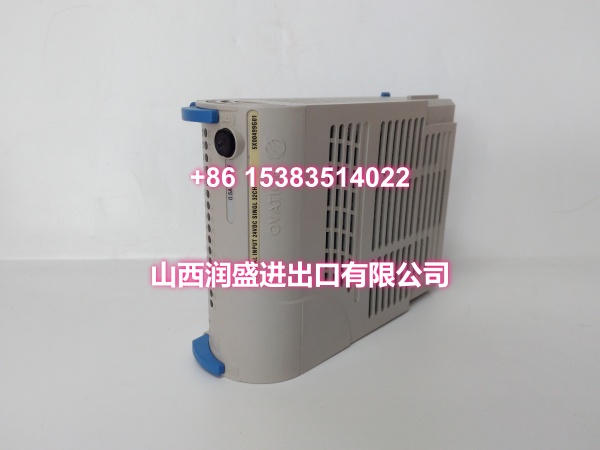

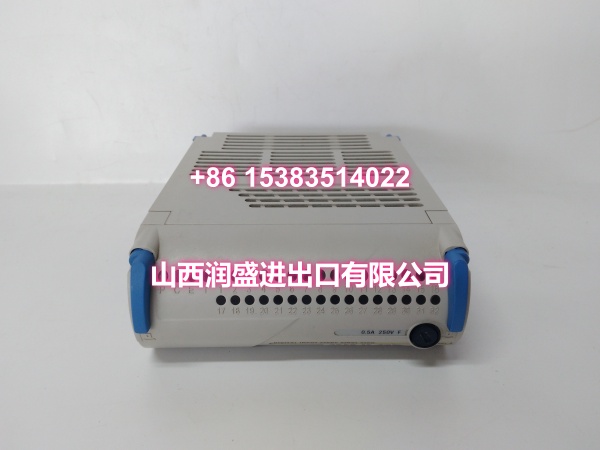

Product Core Brief

• Model: 5X00499G01
• Brand: EMERSON (Ovation / Westinghouse)
• Series: Ovation DCS
• Core Function: High-performance universal analog input (AI) module for the Ovation DCS, collecting and processing analog signals from field sensors (temperature, pressure, flow transmitters, etc.) and transmitting them to the controller for monitoring and control.
• Product Type: Universal Analog Input Module / AI Card
• Key Specs: 16 Isolated Channels | 24-Bit Resolution | Universal Input (mA/V/RTD/TC) | Channel-to-Channel Isolation
• Condition: New Original / New Surplus

Key Technical Specifications

• Module Type: Universal Analog Input (AI)
• Channel Count: 16 independently configurable isolated channels
• Input Types: Configurable per channel for 4–20mA, 0–20mA, 0–10V DC, ±10V DC, RTD (Pt100, Pt1000), or Thermocouple (Type J, K, T, E, etc.)
• Resolution: 24-bit
• Accuracy:
  • Current/Voltage: ±0.05% of full scale
  • RTD: ±0.1°C (for Pt100, -200°C to +850°C)
  • Thermocouple: ±0.2°C (for Type K, 0°C to +1372°C)
• Sampling Rate: 100 samples/second per channel (configurable)
• Isolation: Channel-to-channel (1000Vrms) and channel-to-chassis (2000Vrms)
• Signal Conditioning: Built-in configurable filtering (1–100Hz) to reduce noise from motors, pumps, or high-voltage equipment; cold junction compensation for thermocouple inputs
• Power Supply: 24V DC (redundant inputs supported)
• Power Consumption: ~15W per module
• Protection: Overvoltage (up to 30V DC), reverse polarity, and surge protection
• Operating Temperature: -40°C to +70°C
• Installation: Plug-in module for Ovation I/O base; hot-swappable
• Diagnostics: Real-time self-diagnostics (open circuit, short circuit, overrange) with status reporting to the DCS



Product Introduction

The 5X00499G01 is a high-performance universal analog input (AI) module for the Emerson Ovation DCS, designed to collect and process analog signals from field sensors and transmit them to the controller for monitoring and control. This module is a core component in Ovation I/O subsystems, commonly deployed in power generation, water treatment, and petrochemical applications where accurate and reliable analog measurement is critical.

Unlike specialized AI modules that accept only one signal type (e.g., 4–20mA only or RTD only), the 5X00499G01 is a universal input module—each of its 16 channels can be independently configured for current (4–20mA, 0–20mA), voltage (0–10V DC, ±10V DC), RTD (Pt100, Pt1000), or thermocouple (Type J, K, T, E, etc.) inputs. This eliminates the need to stock multiple specialized module types and simplifies spare parts inventory for plant maintenance teams.

The module features 24-bit resolution and low drift (±0.01%/°C), ensuring accurate measurement of critical process variables even in harsh industrial environments. Built-in configurable filtering (1–100Hz) reduces noise from motors, pumps, and high-voltage equipment, while cold junction compensation for thermocouple inputs ensures accurate temperature readings without requiring external compensation hardware.

Each channel is galvanically isolated from adjacent channels (1000Vrms channel-to-channel, 2000Vrms channel-to-chassis), preventing ground loops and electrical interference from propagating across the module. This is especially important in power plant and refinery environments where field wiring runs long distances through electrically noisy areas.

The 5X00499G01 supports redundant 24V DC power inputs and hot-swap replacement, minimizing downtime in mission-critical systems. Real-time self-diagnostics detect open circuits, short circuits, and overrange conditions, reporting fault status directly to the Ovation DCS for proactive maintenance—allowing engineers to identify and address wiring or sensor issues before they cause process upsets.

In typical applications, the 5X00499G01 is used for:

• Temperature monitoring: Connecting RTD and thermocouple sensors on boilers, turbines, heat exchangers, and pipelines
• Pressure measurement: Reading 4–20mA signals from pressure transmitters on steam lines, feedwater systems, and gas pipelines
• Flow measurement: Accepting signals from flow transmitters for feedwater, fuel, and cooling water systems
• Level monitoring: Reading level transmitters on tanks, drums, and sumps
• Vibration monitoring: Accepting voltage signals from vibration sensors on rotating equipment

The module’s solid-state design with no mechanical wear points ensures long service life and low maintenance. It draws power directly from the Ovation I/O backplane and features comprehensive overvoltage, reverse polarity, and surge protection to safeguard against wiring errors and transient events.

QA & Testing SOP

Analog input modules are the eyes of the DCS—if they report incorrect values, the controller makes incorrect decisions. Here’s our verification procedure:

1. Visual & Anti-Counterfeit Inspection: We inspect the PCB for cold solder joints around the ADC (analog-to-digital converter) ICs, isolation barriers, and backplane connectors. We verify the OEM holographic label and cross-check the silkscreen part number against the Ovation master parts list. Counterfeit AI modules in the surplus market may have degraded ADCs that cause measurement drift, channel-to-channel crosstalk, or inaccurate readings under temperature extremes.
2. Backplane & Connector Verification: The module is seated into a dedicated Ovation test rack. We inspect the backplane connector pins for bends or corrosion—bent pins on the signal side cause open circuits; bent pins on the power side prevent the module from powering up.
3. Controller Recognition Test: We install the module in a complete Ovation controller assembly and verify the controller recognizes the module without fault codes. We confirm the module appears in the Ovation I/O diagnostic screen with the correct module type and channel count.
4. Channel-by-Channel Accuracy Test: We inject precision calibration signals into each channel individually and verify the readings at the Ovation engineer station. For current channels, we inject 4mA and 20mA and verify the displayed values are within ±0.05% of full scale. For voltage channels, we inject 0V and 10V. For RTD channels, we use a precision RTD simulator. For thermocouple channels, we use a TC simulator with cold junction compensation enabled. Every channel must pass accuracy verification.
5. Isolation Verification: We verify channel-to-channel isolation (1000Vrms) and channel-to-chassis isolation (2000Vrms) using a hipot tester. We also check for channel-to-channel crosstalk by injecting a signal into one channel and verifying adjacent channels are not affected.
6. Diagnostic Function Test: We simulate open circuit, short circuit, and overrange conditions on each channel and verify the module reports the correct fault status to the Ovation DCS.
7. Anti-Static Packaging: Passed units are sealed in static-shielded bags with desiccant, then double-boxed for transit.



Installation Pitfalls & Guide

Analog input modules handle low-level sensor signals that are susceptible to noise and interference—proper installation is critical for accurate measurements. Here’s what to watch for:

• ❗ Channel Configuration: Each channel on the 5X00499G01 must be configured in the Ovation I/O Builder for the correct input type (mA, V, RTD, or TC). Installing a 4–20mA transmitter on a channel configured for RTD will produce incorrect readings and may damage the module. Always verify the channel configuration in the I/O Builder before connecting field wiring.
• ❗ Wiring Shielding & Grounding: Analog signals are susceptible to EMI from motors, VFDs, and high-voltage equipment. Field wiring should use shielded twisted-pair cable with the shield grounded at the cabinet side only (field side floating) to prevent ground loops. Running analog signal wiring in the same conduit as power wiring will introduce noise and cause measurement errors.
• ❗ RTD Wiring Configuration: RTD inputs support 2-wire, 3-wire, and 4-wire configurations. 3-wire and 4-wire configurations compensate for lead resistance and provide more accurate readings. If using 2-wire RTDs, be aware that lead resistance will add to the measurement error. Always configure the I/O Builder to match the actual RTD wiring configuration.
• ❗ Thermocouple Extension Wire: When using thermocouple inputs, always use the correct type of thermocouple extension wire (Type K wire for Type K TCs, etc.). Using the wrong extension wire type or standard copper wire will introduce significant measurement errors. Also verify that cold junction compensation is enabled in the I/O Builder.
• ❗ Current Loop Power: For 4–20mA inputs, verify whether the field transmitter is self-powered (4-wire) or loop-powered (2-wire). For loop-powered transmitters, the module must provide loop power. Check the module’s wiring diagram to confirm which terminals provide loop power and ensure the wiring matches.
• ❗ Hot-Swap Procedure: While the module is hot-swappable, always follow the proper Ovation hot-swap procedure: set all points on the module to Out of Service (Scan Off) in the I/O Builder before removal, then restore to In Service (Scan On) after installation. This prevents the controller from acting on invalid readings during the swap.

4-Step Replacement Guide:

1. Pre-Install: In the Ovation I/O Builder, select the slot containing the faulty module. Right-click and select Service → Set all Points Out of Service (Scan Off). Apply the change. Verify that all analog readings from this module are flagged as bad quality in the HMI.
2. Removal: Open the blue locking lever on the front of the module. Pull the electronic module straight out of the base. If the module includes a personality module (terminal block adapter), remove it separately. Inspect the base connector for debris or damaged pins before installing the replacement.
3. Install: Insert the personality module (if applicable) into the base first, then slide the new electronic module into the base until it seats fully. Close the blue locking lever to secure the module. Verify the module is seated in the correct slot per the I/O configuration.
4. Power-on Test: In the I/O Builder, select the slot and choose Restore Points to Original Status (Scan On). Apply the change. Monitor the Ovation diagnostic screen for module recognition. Verify all front-panel LEDs indicate normal operation. Perform a channel-by-channel accuracy test: inject known calibration signals at the terminal block and verify the readings at the Ovation engineer station are within specification. If readings are incorrect, recheck the channel configuration in the I/O Builder and verify field wiring.



Technical FAQ

Q: What’s the difference between 5X00499G01 and other Ovation AI modules? A: The 5X00499G01 is a universal analog input module—each channel can be configured for multiple input types (mA, V, RTD, TC). Ovation also offers specialized AI modules that accept only one signal type (e.g., 5X00070G04 for thermocouple-only, 5X00119G01 for RTD-only, 1C31224G01 for 8-channel mA input). The 5X00499G01’s universal input capability makes it more flexible and reduces spare parts inventory, but specialized modules may offer higher channel density or slightly better accuracy for their specific signal type.

Q: Can I mix input types on the same module? A: Yes. Each of the 16 channels on the 5X00499G01 can be independently configured for a different input type. You can have channels 1–4 configured for 4–20mA, channels 5–8 for RTD, channels 9–12 for thermocouple, and channels 13–16 for voltage—all on the same module. Configure each channel in the Ovation I/O Builder to match the connected field device.

Q: Why are my analog readings noisy or unstable? A: The most common causes of noisy analog readings are: (1) unshielded or improperly grounded field wiring, (2) analog signal wiring running parallel to power wiring or near VFDs/motors, (3) ground loops caused by grounding the shield at both ends, or (4) the built-in filter frequency set too high. First, verify the wiring uses shielded twisted-pair cable with the shield grounded at the cabinet side only. Then check the filter setting in the I/O Builder—lowering the filter frequency (e.g., from 100Hz to 10Hz) will reduce noise at the cost of slightly slower response time.

Q: Is this module compatible with Ovation 4.0? A: The 5X00499G01 is supported on Ovation 4.0 as a legacy-compatible component for existing I/O racks. For brownfield replacements, it is a direct drop-in replacement. If you’re unsure, verify compatibility with your specific Ovation version and controller model in the system documentation.

Q: What is the warranty on surplus units? A: We provide a 12-month warranty from the date of delivery on both new original and new surplus stock. This covers manufacturing defects, DOA failures, and any measurement accuracy or integration issues discovered during commissioning. It does not cover damage from improper installation—such as reversed polarity, overvoltage damage from incorrect wiring, ESD damage from handling without proper grounding, or configuration mismatches.
