Product Core Brief

• Model: MVME5100 (enhanced suffix MVME51005E = IEEE metal ejector, standard = Scanbe plastic ejector)
• Brand: Motorola Computer Group (later Emerson / Artesyn Embedded)
• Series: Mid-range 6U VME64x PowerPC SBC, positioned between legacy MVME2400 and high-end MVME5500, widely deployed as auxiliary subsystem CPU or entry-level chamber master on LAM TCP9400 / Kiyo 300mm plasma etch toolsstatic6.ar…
• Core Function: Real-time VME system controller for distributed fab process tasks; executes wafer recipe light sequencing, remote node Modbus polling, secondary thermal/gas telemetry acquisition, auxiliary robot motion coordination, and VME backplane DMA management; offloads workload from flagship master CPUs (MVME2434 / MVME5500). Dual PMC slots support fiber, analog, serial mezzanine expansion for chamber I/O extensionManualsLib.

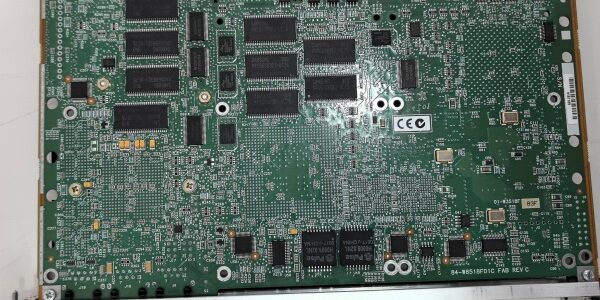

• Form Factor: Standard 6U Eurocard dual P1/P2 rear VME connector PCB, passive heat sink, dual independent 32/64-bit PMC expansion slots, front-panel dual Ethernet + dual serial debug portsManualsLib
• Key Specs: MPC750(450MHz)/MPC7410(400/500MHz) PowerPC | Up to 512MB onboard ECC SDRAM (expand to 1GB) | Dual 10/100BASE-T Ethernet | Dual PMC PCI expansion | VME64x / 2eSST block transfer | Deterministic <4μs interrupt latencyManualsLib
• Condition: New Original (New Surplus); Discontinued legacy industrial spare, limited factory stock reserved for LAM 300mm etch fleets, aerospace & general VME automation.



Key Technical Specifications

Core Compute & Memory

1. Processor Options
   • MPC750 PowerPC @450MHz: 1MB L2 cache, no AltiVec, low power for auxiliary racks
   • MPC7410 PowerPC G4 @400/500MHz: 2MB L2 cache, basic AltiVec DSP acceleration for signal processingmvme.com
2. Cache: 32KB L1 Instruction + 32KB L1 Data; L2 cache 1MB (MPC750) / 2MB (MPC7410)
3. Memory: Onboard PC100 ECC-protected SDRAM (64/128/256/512MB); RAM500 mezzanine expands total capacity to 1GB, single-bit error correction prevents recipe corruptionManualsLib
4. Non-Volatile Storage: 17MB total onboard Flash for PPCBug firmware + OS boot image; 32KB battery-backed NVRAM + RTC to store sensor calibration, motion offsets, fault logsManualsLib

Bus Architecture

• VME Interface: Tundra Universe-II ASIC, full VME64x / 2eSST high-speed block transfer, A16/A24/A32/A64 addressing, master/slave DMA burst up to 120MB/s, full VME system arbitration capabilityManualsLib
• PCI Expansion: Two independent 32/64-bit 66MHz PMC slots, dual mode configurable (PMC front I/O or IPMC rear transition via MVME712/MVME761 rear boards)ManualsLib

Integrated Front Panel I/O

• Ethernet: Dual independent 10/100BASE-TX isolated RJ45 ports for redundant fab host/remote node communication
• Serial: Dual 16550 UART multi-mode RS232/422/485 ports (1 debug console, 1 Modbus MFC/node communication)
• Auxiliary: Four 32-bit programmable timers + hardware watchdog fail-safe timer, parallel port
• Storage: Onboard SCSI interface for local recipe log storage

Electrical & Environmental

• Power Input: VME backplane +5V / ±12VDC; typical full-load power draw 14–19W
• Operating Temp: Commercial fab cabinet grade 0°C ~ +55°C; conformal coated industrial variant -40°C ~ +70°C
• EMI Suppression: Multi-layer segmented ground planes, multi-stage ferrite filtering optimized for 13.56MHz plasma RF noise suppression
• Mechanical: 6U VME Eurocard, fanless passive heat sink (zero cleanroom particulate risk); two ejector variants: Scanbe plastic (base ) / IEEE metal (MVME51005E)
• MTBF: ≥107,000 hours (95% confidence high-stress testing) under 24/7 continuous fab operation
• Compliance: CE, UL, SEMI S2 certified for front-end semiconductor wafer processing equipment



Product Introduction

MOTOROLA sits between entry-level MVME2432 and flagship MVME2434/MVME5500 in Motorola’s VME SBC product line, deployed on Lam TCP9400/Kiyo 300mm etch tools as either secondary auxiliary rack CPU or low-load single-chamber master controllerstatic6.ar….

Core Position & Differentiators

1. Dual PMC expansion (MVME2432 only single PMC), dual 10/100 Ethernet (MVME2434 single Ethernet) for redundant network links
2. VME64x / 2eSST high-speed backplane DMA, higher I/O bandwidth than MVME2400 series
3. Two CPU grades available: low-power MPC750 for background monitoring, MPC7410 with AltiVec for light analog signal DSP workloads
4. Balanced cost-performance: lower cost than MVME5500 G4 1GHz flagship, sufficient for non-full-load chamber control

Key Gap vs Higher-End MVME5500

• No Gigabit Ethernet (only dual 10/100M)
• Slower CPU (max 500MHz MPC7410 vs 1GHz MPC7457)
• Smaller maximum memory (1GB vs 1GB identical, but weaker memory bus throughput)
• Lacks advanced plasma RF noise filtering present on MVME55006E-0163 enhanced variant

Generic aftermarket VME SBCs lack ECC memory and optimized VME64x DMA timing, leading to telemetry dropout and motion synchronization jitter under chamber RF interference. The board supports controlled hot-swap service without full chamber vacuum/RF shutdown during PM cycles.



Firmware & Software Compatibility

• Supported Real-Time OS: VxWorks (primary for Lam etch tools), Integrity, QNX, Embedded Linuxstatic6.ar…
• Onboard Firmware: PPCBug comprehensive diagnostic/boot monitor pre-flashed; full VME memory mapping, PMC auto-detection, complete board self-test suiteManualsLib
• Lam Tool Software Match: Compatible with Lam PCS v6.2 ~ v8.0; cannot run PCS v8.2+ designed for MVME5500 high-speed Gigabit architecture without custom BSP patch and full chamber reconfiguration
• Upgrade Risk Note: Downgrading PCS below v6.2 breaks VME handshake with VIOP III motion/gas I/O subboards; firmware revision must match chamber software release before board replacement
• OEM Firmware Access: Emerson/NXP restricted official PPCBug firmware distribution to certified semiconductor fab service partners post-2023; full backup of NVRAM calibration data mandatory prior to swap



Frequently Asked Questions

1. Can I remove the CPU while the etch chamber remains pressurized and RF generators active?VME64x bus buffering prevents backplane hardware damage during hot-swap, but fully vent chamber vacuum, disable all 13.56MHz RF power supplies, and engage cabinet safety lockouts before extraction. Live plasma RF noise corrupts NVRAM-stored sensor calibration, motion axis tuning and MFC trim data. Always complete a full chamber parameter backup via the tool HMI first.
2. Can fully replace MVME2434 as full-load chamber master CPU for TCP9400/Kiyo etch tools?Hardware slot-compatible, but performance limitations apply:

• MPC750 variant insufficient for synchronized multi-axis robot + ESC indexer parallel motion workloads
• 500MHz variant works for single small-chamber light recipe loads, but multi-chamber full production requires MVME2434/ higher throughputDirect cross-replacement requires Lam PCS version adjustment, VME address remapping, and full re-calibration of all motion/gas/thermal subsystems.

1. Will swapping the erase chamber recipes, motion profiles or MFC calibration offsets?All critical process tuning data, wafer motion trajectories, gas interlock thresholds and sensor scaling tables reside in the board’s battery-backed NVRAM flash. Complete full chamber parameter export backup via the tool HMI before replacement to restore calibration data if VME64x communication handshake errors occur post-install.
2. What warranty coverage applies to New Surplus OEM vs refurbished units?New Surplus original factory stock carries a 12-month full functional warranty matching Emerson industrial spare specifications. Refurbished aftermarket assemblies only carry 3–6 month limited coverage; aged memory ICs and flash storage create mid-run memory corruption risk that scraps full wafer production batches.
3. Why is original New Surplus hardware higher cost than aftermarket refurbished substitutes?Original factory units retain factory-calibrated VME64x DMA timing tolerances, zero operating-hour thermal fatigue on PowerPC core & memory semiconductors, and full component validation traceability. Refurbished boards reuse aged PCBs, generic memory chips, and skip plasma RF interference environmental cycling testing; hidden memory bit-error drift and bus timing defects lead to unplanned chamber downtime with far higher wafer scrap overhead than upfront spare cost difference.
4. Cross-compatibility between , MVME2434,

• : 350–450MHz, single 10/100 Ethernet, dual PMC, legacy VME64 only, full master for all TCP9400 loads
• : /, dual 10/100 Ethernet, dual PMC, VME64x, mid-tier auxiliary/light master
• : MPC7457 1GHz, dual Gigabit Ethernet, dual PMC, enhanced RF filtering, flagship full heavy-load master

1. What routine maintenance interval applies to this VME SBC in high-volume 24/7 fabs?Execute full PPCBug self-test, VME64x DMA integrity, dual Ethernet link validation, and NVRAM data check every 6 months during chamber PM cycles. Replace the complete unit after 40,000 operating hours; onboard ECC memory and flash storage develop bit-error drift under continuous cabinet heat and long-term plasma RF exposure, degrading long-term etch process repeatability and wafer CD uniformity consistency.
