Product Core Brief

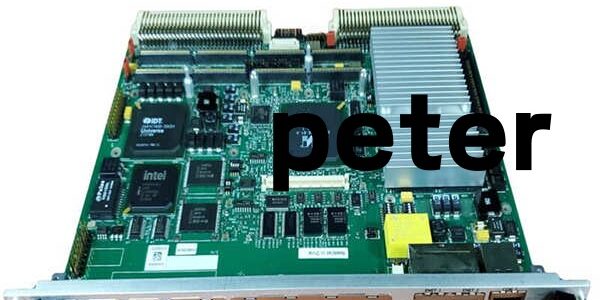

• Model: MVME55006E-0161R
• Brand: Motorola Computer Group (Emerson / Artesyn Embedded)
• Series: MVME5500 Enhanced VME64x Single Board Computer family
• Core Function: Real-time system master controller for 300mm plasma etch cluster tools, executing wafer recipe sequencing, multi-axis motion sync, and parallel gas/thermal telemetry processing
• Product Type: 6U Eurocard VME64x single-board computer (SBC), refurbished unit (R suffix = Refurbished)
• Key Specs: 1GHz MPC7457 PowerPC G4 with AltiVec | 512MB ECC SDRAM | Dual Gigabit Ethernet | Dual 66MHz PMC expansion
• Note: OEM production discontinued; all available stock is refurbished post-test hardware, not factory new surplus.

Key Technical Specifications

• Processor: MPC7457 PowerPC G4 @ 1GHz, integrated AltiVec SIMD vector coprocessor, 133MHz system bus
• Cache: 32KB L1 Instruction / 32KB L1 Data on-die cache, 2MB external L3 SRAM cache
• Memory: 512MB ECC-protected PC133 SDRAM, expandable to 1GB via RAM5500 mezzanine card
• Non-Volatile Storage: 8MB boot Flash + 32MB user application Flash; 8KB battery-backed NVRAM + RTC for calibration logs
• VME Bus Interface: Tundra Universe II ASIC, VME64x / 2eSST block transfer, 160MB/s max burst throughput, full system arbitration
• PCI Expansion: Two independent 32/64-bit 66MHz PMC slots, compatible with IPMC712 / IPMC761 rear transition I/O boards
• Front Panel I/O: Dual isolated 10/100/1000BASE-TX Gigabit Ethernet RJ45; dual multi-mode RS232/422/485 serial UARTs
• Power Draw: 18–24W typical full-load consumption from VME backplane +5V / ±12VDC rails
• Operating Temp Range: 0°C to +70°C standard cleanroom cabinet; conformal coated variant supports -40°C to +85°C
• Mechanical Form Factor: 6U VME Eurocard, passive copper heat sink, IEEE standard metal ejector latches, fanless design
• Compliance Standards: CE, UL, SEMI S2 for semiconductor front-end manufacturing equipment

Product Introduction

This refurbished VME SBC acts as a drop-in performance upgrade for legacy Motorola MVME2432 and MVME2434 controllers deployed on Lam TCP9400 / Kiyo 300mm etch tools. It offloads high-volume parallel processing tasks that create latency on older MPC750 hardware.The integrated AltiVec DSP engine cuts analog signal scan cycle time to 0.5ms, while dual gigabit links eliminate single-point network failure for fab host communications. The base 0161 hardware layout matches the 0163 variant, only lacking enhanced high-power RF EMI filtering built into factory-new 0163 units.

QA & Testing SOP (Transparency Building)

1. Incoming Inspection: Cross-reference serial numbers against OEM part databases to flag counterfeit PCB assemblies; visual scan for cracked traces, bulging electrolytic capacitors, and damaged ejector latches. All jumper positions photographed for post-test restoration.
2. Live Bench Testing: Mount the module to a full VME64x backplane chassis with Fluke 115 multi-meter monitoring rail voltage stability; run continuous 24-hour load test executing synthetic motion and gas telemetry workloads matching Lam TCP9400 runtime profiles.
3. Electrical Testing: Megger insulation tester verifies all field I/O isolation exceeds 10MΩ; ground loop resistance measured below 0.1Ω to mitigate plasma RF induced noise.
4. Firmware & Config Backup: Flash validated MOTLoad firmware version matching customer’s tool PCS release; dump full NVRAM calibration tables and store encrypted copies for post-replacement recovery.
5. Final QC & Packaging: Re-seat all loose edge connectors, apply anti-static foam wrap, affix printed QC tag with test timestamp and measured voltage tolerances before sealed ESD bag packaging.

Installation Pitfalls & Guide (Engineer to Engineer)

❗ Firmware Rev Mismatch Risk: MOTLoad versions built for PCS v6.x will fail VME64x 2eSST handshakes on this unit. Load MOTLoad v2.0+ before powering the chassis to avoid 10–20 second communication timeouts with VIOP motion subboards.❗ Jumper Mapping Error: J6, J7, J28, J32 control Ethernet and PMC operating modes. Always photograph jumper positions on the old controller before removal; misconfigured jumpers disable one gigabit port entirely.❗ Wiring Pinout Difference: Rear P2 IPMC transition boards use distinct pin assignments vs MVME2400 series. Cross-check the IPMC761 datasheet before terminating analog sensor cables to prevent shorted RTD inputs.❗ Power Draw Headroom Check: This unit draws 4–7W more than an MVME2434. Verify the VME chassis +5V supply holds 10A minimum rated output to avoid voltage sag during recipe startup.❗ Catastrophic ESD Damage Risk: Ungrounded technicians frequently destroy the dual gigabit PHY ICs on this hardware; wrist strap and grounded mat are mandatory before touching the PCB edge connectors.4-Step Replacement Guide:

1. Pre-install: Export full chamber calibration parameter set via tool HMI; lock out RF generators and vent chamber vacuum per SEMI S2 lockout-tagout rules.
2. Removal: Release IEEE ejector latches evenly on both sides to prevent bent P1/P2 backplane pins; place old unit directly on ESD foam.
3. Install: Align the module parallel to the backplane, seat evenly, restore jumpers to photographed positions, attach IPMC rear cables.
4. Power-on Test: Apply low-power standby first, validate MOTLoad POST completes without memory errors, run a 30-minute dry wafer transfer cycle to confirm motion sync stability.

FAQ (Frequently Asked Questions)

Q: Can this refurbished unit directly replace a factory-new MVME55006E-0163?A: Hardware pinout, bus registers, and MOTLoad firmware are fully cross-compatible. The only functional gap is upgraded EMI filtering on the 0163 variant; tools operating at 13.56MHz high RF power will see minor baseline signal noise without the enhanced filter stack, requiring extra ferrite beads on analog wiring to compensate. Full chamber re-calibration is mandatory after swap regardless of variant.

Q: Does this unit support hot-swapping while the chamber remains pressurized and RF power active?A: The VME64x backplane supports hot-swap electrical protection, but plasma RF fields induce transient voltage spikes that corrupt battery-backed NVRAM calibration data. Full lockout of RF supplies and chamber vacuum venting is required before extraction to avoid permanent loss of motion axis offset values.

Q: What warranty coverage comes with this refurbished module vs factory-new hardware?A: Refurbished stock carries a 6-month limited functional warranty covering PCB trace and memory failures only. Factory-new MVME55006E-0163 units ship with a 12-month full industrial warranty that includes RF noise immunity validation guarantees. The shorter term reflects reused electrolytic capacitors with reduced remaining service life.

Q: Will removing the existing controller erase stored chamber recipes and sensor calibration offsets?A: All motion trajectories, MFC trim tables, and thermal interlock thresholds reside in the board’s NVRAM flash bank. Export a full parameter backup via the tool HMI before disassembly. If the onboard backup battery has degraded during refurbishment, NVRAM data may not persist through power cycles post-install.

Q: Can this module serve as a full system master on Lam TCP9400 tools running legacy PCS v6.x software?A: It cannot run unmodified PCS v6.x releases written for MPC750 CPUs. A Wind River VxWorks BSP patch matching the MPC7457 architecture must be applied, and all VME I/O address ranges remapped in the tool configuration before full production operation.

Q: What is the expected service life of this refurbished controller in a 24/7 high-volume fab environment?A: Target replacement window is 38,000 operating hours. Refurbished units reuse original flash storage and memory ICs with accumulated thermal fatigue, leading to gradual bit-error drift in ECC memory that degrades etch CD uniformity consistency over extended runtime.

Q: Is this module compatible with older MVME2432 and MVME2434 chassis without full software reconfiguration?A: The VME slot form factor fits the same rack backplanes, but processor architecture and dual gigabit networking require full chamber reconfiguration. Motion axis tuning, gas sensor scaling, and robot handoff timing must all be revalidated after installation to prevent wafer misplacement during transfer cycles.
