Product Core Brief

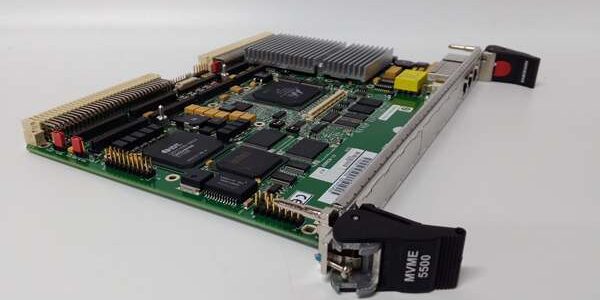

• Model: MVME55006E-0163 (MVME5500E enhanced variant, IEEE ejector latches, base config 512MB ECC SDRAM)
• Brand: Motorola Computer Group (later Emerson Embedded, NXP)
• Series: Flagship 6U VME64x PowerPC G4 SBC, used as next-gen master CPU for upgraded LAM TCP9400 / Kiyo 300mm plasma etch tools, direct performance upgrade path replacing legacy MVME2432/MVME2434 series
• Core Function: Full system master controller for high-load semiconductor cluster tools; executes multi-task wafer etch recipe sequencing, synchronized multi-axis robot/ESC index motion control, parallel MFC gas + thermal RTD telemetry processing, high-speed fab host communication, VME64x DMA backplane management, and real-time closed-loop plasma process tuning with AltiVec DSP acceleration.
• Product Type: Standard 6U Eurocard dual P1/P2 rear connector PCB, passive large copper heat sink, dual independent 66MHz PMC expansion slots, front-panel industrial I/O ports, IEEE standard ejector latches
• Key Specs: 1GHz MPC7457 PowerPC G4 with AltiVec | 512MB ECC SDRAM (expandable to 1GB) | Dual Gigabit Ethernet | Dual PMC PCI expansion | VME64x / 2eSST high-speed block transfer | Deterministic <3μs interrupt latency
• Condition: New Original (New Surplus); Discontinued high-performance legacy OEM spare, limited factory stock reserved for upgraded LAM 300mm etch fleets, aerospace & high-end industrial VME automation.

Key Technical Specifications

Core Compute & Memory

• Processor: MPC7457 PowerPC G4 @ 1GHz, integrated AltiVec vector coprocessor for signal/motion DSP workloads, 133MHz system bus clockManualsLib
• Cache: 32KB L1 I / 32KB L1 D cache, 2MB dedicated L3 DDR SRAM cache
• Memory: Onboard 512MB ECC-protected 133MHz SDRAM; optional RAM5500 mezzanine expands total to 1GB ECC RAM, single-bit error detection/correction prevents recipe corruptionmvme.com
• Non-Volatile Storage: 8MB boot Flash + 32MB user program Flash; 8KB battery-backed NVRAM + RTC to store chamber calibration offsets, motion profiles, and fault logs

Bus Architecture

• VME Interface: Full VME64x / 2eSST high-speed block transfer master/slave, A16/A24/A32/A64 addressing, BLT64 DMA burst up to 160MB/s, auto-detect VME system controller arbitration
• PCI Expansion: Two independent 32/64-bit 66MHz PMC (PCI Mezzanine Card) slots for fiber communication, analog I/O, serial Modbus mezzanine expansion; supports IPMC rear transition modules (MVME712 / MVME761)

Integrated Front Panel I/O

• Ethernet: Dual independent Intel 82545GM Gigabit 10/100/1000BASE-TX isolated RJ45 ports (redundant fab host communication)
• Serial: Dual multi-mode RS232/422/485 UARTs (16550 compliant, 15kV ESD isolation) for MFC node Modbus telemetry + debug console
• Storage: Ultra-Wide SCSI-2, SATA II, CompactFlash Type I/II onboard storage interfaces for local recipe logging
• Auxiliary: IEEE1284 parallel port, eight 32-bit programmable timers, hardware watchdog fail-safe timer for chamber process safety

Electrical & Environmental

• Power Input: Standard VME backplane +5V / ±12VDC; typical full-load power draw 18–24W
• Operating Temperature: Commercial fab cabinet grade 0°C ~ +70°C; extended industrial -40°C ~ +85°C conformal coated variant available
• EMI Suppression: Multi-layer segmented PCB ground planes, multi-stage ferrite filtering to suppress 13.56MHz chamber plasma RF interference
• Mechanical: 6U VME Eurocard form factor, IEEE standard dual ejector latches, fanless passive heat sink (zero particulate contamination risk for cleanroom fabs)
• MTBF: ≥92,000 hours under continuous 24/7 high-volume 24/7 fab production duty cycle
• Compliance: CE, UL, SEMI S2 certified for front-end 300mm semiconductor wafer processing equipment

Product Introduction

MOTOROLA is the high-performance upgrade successor to the MVME2400 series (MVME2432/MVME2434) VME master CPUs, deployed on upgraded Lam TCP9400/Kiyo 300mm plasma etch cluster tools. It delivers drastically improved compute throughput, dual gigabit redundant networking, and doubled PMC expansion capacity to handle heavy parallel workloads: synchronized multi-axis wafer robot motion, rotary ESC index stage closed-loop control, dozens of MFC gas channels, multi-group RTD thermal monitoring, and real-time plasma RF bias tuning with AltiVec vector acceleration.

Core Advantages vs MVME2434

1. MPC7457 1GHz G4 CPU + AltiVec DSP vs MPC750 PowerPC, 3–4x higher real-time compute performance
2. Dual Gigabit Ethernet (MVME2434 only single 10/100M) for redundant fab host link
3. Larger L3 cache + expandable 1GB ECC RAM, eliminates memory bottlenecks for full chamber recipe execution
4. VME64x / 2eSST high-speed block transfer doubles backplane I/O bandwidth for VIOP motion/analog boards
5. Enhanced multi-stage RF noise filtering optimized for high-power plasma etch chamber environments

Generic aftermarket VME SBCs lack ECC memory, AltiVec real-time acceleration, and VME64x high-speed DMA; they suffer telemetry dropout, motion synchronization jitter, and mass wafer scrap under plasma RF interference. The board supports controlled hot-swap service without full chamber vacuum/RF shutdown during scheduled preventive maintenance cycles.

Firmware & Software Compatibility

• Supported Real-Time OS: VxWorks (primary for upgraded Lam etch tools), LynxOS, QNX, embedded Linux
• Onboard Firmware: PPCBug advanced diagnostic/boot monitor pre-flashed on dual Flash banks; full VME memory mapping, PMC auto-configuration, comprehensive board self-test diagnostics
• Lam Tool Software Match: Compatible with Lam PCS v7.0 ~ v9.0 (TCP9400/Kiyo upgraded platforms); cannot natively run older PCS v6.x designed for MVME2400 series without OS BSP patch and full chamber reconfiguration
• Upgrade Risk Note: Downgrading tool PCS below v7.0 breaks VME64x high-speed DMA handshake with VIOP III motion/gas I/O subboards; SBC firmware revision must match upgraded chamber software release before PM replacement work
• OEM Firmware Access: Emerson/NXP restricted official PPCBug firmware distribution exclusively to certified semiconductor fab service partners post-2023; full backup of chamber recipe, motion, and gas calibration NVRAM data is mandatory prior to board swap

Frequently Asked Questions

1. Can I remove the master CPU while the etch chamber remains pressurized and RF generators active?VME64x bus buffering prevents permanent backplane I/O damage during hot-swap, but fully vent chamber vacuum, disable all 13.56MHz RF power supplies, and engage cabinet safety lockouts before extraction. Live plasma RF noise corrupts NVRAM-stored recipe calibration offsets, robot motion tuning, and MFC trim data. Always complete a full chamber parameter backup via the tool HMI first.
2. Can directly replace legacy MVME2434 as chamber master CPU?Hardware pin-compatible VME slot form factor, but software migration required: Lam PCS version upgrade to v7.0+, matching VxWorks BSP for MPC7457, re-map all VME I/O address spaces, re-calibrate all robot/indexer motion axes and gas MFC loops. It cannot run unmodified original PCS v6.x firmware designed for MPC750 CPU architecture.
3. Will swapping the erase chamber recipes, motion profiles or MFC calibration offsets?All critical process tuning data, wafer motion trajectories, gas interlock thresholds, and sensor scaling tables reside in the board’s battery-backed NVRAM flash. Complete full chamber parameter export backup via the tool HMI before replacement to restore calibration data if VME64x communication handshake errors occur post-install.
4. What warranty coverage applies to New Surplus OEM vs refurbished units?New Surplus original factory stock carries a 12-month full functional warranty matching Emerson’s industrial spare specification. Refurbished aftermarket assemblies only carry 3–6 month limited coverage; aged memory ICs and flash storage create mid-run memory corruption risk that scraps full wafer production batches.
5. Why is original New Surplus hardware higher cost than aftermarket refurbished substitutes?Original factory units retain factory-calibrated VME64x DMA timing tolerances, zero operating-hour thermal fatigue on PowerPC G4 core & memory semiconductors, and full traceability to Emerson’s industrial component validation batches. Refurbished boards reuse aged PCBs, generic replacement memory chips, and skip plasma RF interference environmental cycling testing; hidden memory bit-error drift and bus timing defects lead to unplanned chamber downtime with far higher wafer scrap overhead than the upfront spare cost difference.
6. What cross-compatibility exists between and base MVME5500-0161?MVME5500-0161 uses Scanbe plastic ejector latches; upgrades to IEEE metal ejector latches, improved EMI filtering, minor power rail stability tweaks. The two variants share identical CPU/memory/I/O architecture and full software cross-compatibility, direct swap without chamber re-calibration required.
7. What routine maintenance interval applies to this high-end VME master SBC in high-volume 24/7 fabs?Execute full PPCBug self-test, VME64x DMA integrity, dual Gigabit Ethernet link validation, and NVRAM data check every 6 months during chamber PM cycles. Replace the complete unit after 38,000 operating hours; onboard ECC memory and flash storage develop bit-error drift under continuous cabinet heat and long-term plasma RF exposure, degrading long-term etch process repeatability and wafer CD uniformity consistency.
