Product Core Brief

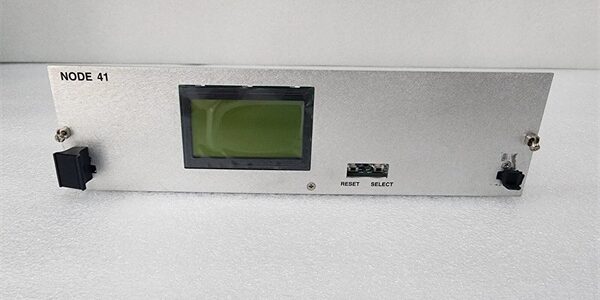

• Model: 810-069751-114 (Type 41 Node Board, Revision A)
• Brand: LAM Research
• Series: Inter-Chassis Communication Node PCBA for TCP9400 300mm plasma etch cluster platforms
• Core Function: Act as fiber-optic signal bridge between the tool main control chassis and remote extension RXM subracks; consolidate analog/digital sensor telemetry, route safety interlock traffic, and translate proprietary serial bus protocols for chamber subsystems.
• Product Type: Rack-mount node printed circuit board assembly with ST fiber optic port and multi-pin field terminal headers
• Key Specs: Duplex ST fiber communication | 1500VAC galvanic signal isolation | <2ms interlock signal forwarding latency
• Condition: New Original (New Surplus); Discontinued legacy OEM spare, limited factory stock reserved for active TCP9400 installed fleets.

Key Technical Specifications

• Communication media: Duplex ST-type fiber optic transceiver for noise-isolated inter-chassis data transfer
• Supported bus protocols: Lam proprietary internal serial telemetry bus, secondary Modbus RTU auxiliary sensor channel
• Operating supply: Regulated 24VDC cabinet logic power, max 18W continuous power draw under full signal load
• Signal isolation rating: 1500VAC reinforced isolation separating field sensor wiring and fiber logic circuits
• Data polling rate: Fixed 15Hz synchronous telemetry refresh for all connected remote subrack hardware
• Fault detection latency: <2ms forwarding delay for safety interlock trip signals from remote gas, thermal, and RF submodules
• Mechanical mounting: Standard vertical slot for TCP9400 main chassis signal rack assemblies
• Operating ambient range: 10°C to +50°C control cabinet; storage -40°C to +85°C, non-condensing humidity limits
• EMI mitigation: Multi-layer segmented PCB ground planes and onboard ferrite filtering to suppress 13.56MHz plasma RF cross-talk
• Protection circuits: Per-channel ESD surge suppression, reverse polarity lockout, short-circuit auto cutoff for copper field signal lines
• MTBF rating: ≥90,000 hours under continuous 24/7 high-volume fab production duty cycle
• Compliance: CE, UL, SEMI S2 safety standard certified for front-end 300mm semiconductor wafer processing equipment

Product Introduction

LAM 810-069751-114 serves as the primary inter-chassis communication backbone for Lam TCP9400 12-inch etch tools. It eliminates ground loop interference between the main VME CPU rack and remote gas, thermal, and RF subracks via fiber optic galvanic separation, routing all process telemetry and safety interlock signals without RF-induced signal distortion.

Its core differentiator is integrated fiber media conversion and fast interlock signal forwarding. Unisolated copper-based substitute boards pick up high-amplitude chamber plasma RF noise that triggers false safety trips, aborting active wafer batches and reducing fab throughput. The unit supports controlled hot-swap service without full remote subrack power shutdown during scheduled preventive maintenance cycles.

Firmware/Software Versions & Upgrade Notes

• Supported Lam Process Control Software (PCS): v6.0 through v8.2; PCS v8.4 and newer releases drop native fiber bus handshake compatibility with this node board hardware.
• Recommended onboard firmware revision: Factory pre-flashed Rev A build; older unreleased internal revisions contain telemetry sampling jitter that creates unstable chamber parameter trending data.
• Upgrade risk warning: Downgrading tool master VME SBC firmware below v7.3.2 breaks bidirectional remote subrack telemetry polling with the node board. Match host controller and node board firmware release families before chamber PM work.
• Firmware storage location: Onboard non-volatile flash memory integrated to the main PCBA. Export all remote subrack sensor scaling tables and interlock threshold values via the tool HMI before executing any firmware flash operation.
• OEM constraint: Lam Research restricts official firmware file distribution exclusively to certified fab service partners post-2023; validate local firmware archive files prior to field installation to avoid communication handshake failures.

Frequently Asked Questions

1. Can I remove this node board while the process chamber remains pressurized and RF generators active?Fiber bus buffering prevents full loss of remote subrack telemetry data, but fully disable all chamber 13.56MHz RF power supplies, vent chamber vacuum, and engage cabinet safety lockouts before extraction. Live high-frequency RF noise generates transient copper-line interference that corrupts remote sensor calibration offsets stored on the unit’s onboard flash memory. Always complete a full subrack parameter backup via the tool HMI first.
2. Can I source a direct drop-in OEM replacement given this hardware is a legacy chassis spare?Lam Research maintains limited New Surplus factory stock of the part, but third-party aftermarket refurbished assemblies use uncertified generic fiber transceivers and omit full 13.56MHz RF noise immunity thermal cycling testing. New Surplus unopened factory stock is the only plug-and-play option; refurbished units require a full 48-hour signal load bench calibration before installation into production etch chambers.
3. Will swapping this node board erase saved remote subrack sensor scaling or safety interlock trigger limits?All remote channel scaling tables, thermal/gas trim offsets, and safety trip thresholds reside on the board’s internal flash memory. Complete a full subrack parameter backup via the tool HMI before any swap to restore calibration data if fiber bus handshake communication errors occur post-installation.
4. What warranty coverage comes with New Surplus OEM inventory versus refurbished units?Our New Surplus OEM stock carries a 12-month full functional warranty matching original Lam factory spare coverage. Refurbished aftermarket assemblies ship with only a 3–6 month limited warranty, as aged fiber transceivers and copper signal conditioning ICs create unquantified risk of mid-run lost telemetry that scraps production wafer batches.
5. Why is New Surplus OEM hardware priced higher than aftermarket refurbished equivalents?New Surplus inventory retains factory-calibrated fiber bus signal tolerances, zero operating hour thermal fatigue on transceivers, and full traceability to Lam’s component validation batches. Refurbished units reuse aged PCBs, generic replacement fiber modules, and skip full plasma RF interference cycling testing; hidden communication drift defects lead to unplanned chamber downtime with far greater total wafer scrap cost than the upfront component price difference.
6. Does this Type 41 node board support all Lam legacy plasma etch chamber platforms?This Revision A rack-mount variant only integrates exclusively with 300mm 12-inch etch main and remote extension subrack assemblies. No cross-compatibility exists with smaller 200mm chamber fleets, as fiber bus register mapping and terminal header pinouts differ entirely.
7. What routine maintenance schedule applies to this inter-chassis communication node in high-volume production fabs?Execute full fiber link integrity and interlock signal validation every 6 months during scheduled chamber PM cycles. Replace the complete unit after 40,000 operating hours, as onboard fiber transceivers and signal conversion ICs develop gain drift under continuous cabinet heat and 13.56MHz RF plasma exposure that degrades long-term etch process repeatability.
