Product Core Brief

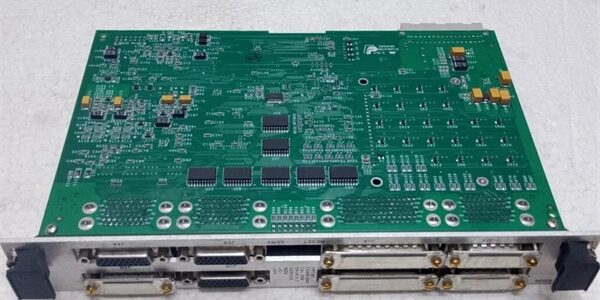

• Model: 810-082745-003 (Revision 003; dedicated lift pin motion drive PCB for Kiyo / TCP9400 300mm etch chambers)
• Brand: LAM Research
• Series: Chamber Wafer Lift Motion Control PCBA for legacy 300mm plasma etch processing platforms
• Core Function: Generate stepper drive waveforms for electrostatic chuck lift pin axes, sample differential encoder position feedback, enforce soft-stop overtravel interlocks, and transmit lift axis position telemetry to the tool master VME SBC via proprietary serial bus during wafer transfer sequences.
• Product Type: Compact rack-mount motion drive printed circuit board assembly with multi-pin motor and encoder terminal headers
• Key Specs: Dual-axis stepper drive outputs | Differential 5V encoder sampling | <1ms lift overtravel interlock fault response latency
• Condition: New Original (New Surplus); Discontinued legacy OEM spare, limited factory stock reserved for active Kiyo/TCP9400 installed fleets.

Key Technical Specifications

• Supported motion axes: Dual independent lift pin stepper motor drive channels for chamber ESC lift assemblies
• Drive output rating: Per-channel 1.2A peak 24VDC stepper winding current with micro-stepping waveform generation
• Encoder interface: Differential line receiver inputs for 5V A/B/Z position encoders, 2000 CPR max resolution
• Motion profiling: Onboard trapezoidal acceleration/deceleration trajectory generation for soft wafer touchdown control
• Communication bus: Proprietary Lam internal serial bus, fixed 20Hz motion telemetry polling rate
• Operating supply: Regulated 24VDC cabinet logic power, maximum 20W continuous power draw under full dual-axis load
• Fault detection latency: <1ms trip response for encoder loss, lift overtravel, and stepper winding short faults
• Signal isolation rating: 1500VAC reinforced isolation separating field motor/encoder wiring and internal logic circuits
• Mechanical mounting: Standard compact vertical slot dedicated to chamber motion subrack assemblies
• Operating ambient range: 10°C to +50°C process cabinet; storage -40°C to +85°C, non-condensing humidity limits
• EMI mitigation: Multi-stage onboard ferrite filtering and segmented PCB ground planes to suppress 13.56MHz RF plasma cross-talk
• Protection circuits: Per-channel ESD surge suppression, reverse polarity lockout, over-temperature auto motion cutoff
• MTBF rating: ≥89,000 hours under continuous 24/7 high-volume fab production duty cycle
• Compliance: CE, UL, SEMI S2 safety standard certified for front-end 300mm semiconductor wafer processing equipment

Product Introduction

LAM 810-082745-003 operates as the dedicated lift axis motion controller inside legacy Lam Kiyo and TCP9400 12-inch plasma etch chambers. It precisely actuates electrostatic chuck lift pins to raise/lower wafers during robot handoff, sampling high-resolution encoder data to maintain consistent wafer placement flatness and prevent substrate edge chipping.

Its core differentiator is dual-axis synchronized micro-stepping control and fast overtravel fault detection. Unisolated generic substitute boards pick up high-amplitude plasma RF interference that triggers false lift interlock trips, aborting active wafer batches and reducing overall fab throughput. The unit supports controlled hot-swap service without full robot motion power shutdown during scheduled preventive maintenance cycles.

Firmware/Software Versions & Upgrade Notes

• Supported Lam Process Control Software (PCS): v6.1 through v8.1; PCS v8.3 and newer releases drop native serial bus handshake compatibility with this hardware.
• Recommended onboard firmware revision: Factory pre-flashed Rev 003 build; unreleased internal prototype firmware contains encoder sampling jitter that creates inconsistent wafer lift height offset across sequential lots.
• Upgrade risk warning: Downgrading tool master VME SBC firmware below v7.2.0 breaks bidirectional motion setpoint/position telemetry polling with the board. Match host controller and lift motion board firmware release families before chamber PM work.
• Firmware storage location: Onboard non-volatile flash memory integrated to the main PCBA. Export all lift axis velocity/acceleration profiles and overtravel interlock threshold values via the tool HMI before executing any firmware flash operation.
• OEM constraint: Lam Research restricts official firmware file distribution exclusively to certified fab service partners post-2023; validate local firmware archive files prior to field installation to avoid communication handshake failures.

Frequently Asked Questions

1. Can I remove this lift motion drive board while the process chamber remains pressurized and robot axes energized?Internal serial bus buffering prevents full loss of lift axis telemetry data, but fully de-energize all chamber stepper motor power supplies, vent chamber vacuum, and engage cabinet safety lockouts before extraction. Live high-frequency plasma RF noise generates transient bus interference that corrupts lift axis tuning offsets stored on the unit’s onboard flash memory. Always complete a full motion parameter backup via the tool HMI first.
2. Can I source a direct drop-in OEM replacement given this hardware is a legacy chamber motion spare?Lam Research maintains limited New Surplus factory stock of the part, but third-party aftermarket refurbished assemblies use uncertified generic differential encoder receivers and omit full 13.56MHz RF noise immunity thermal cycling testing. New Surplus unopened factory stock is the only plug-and-play option; refurbished units require a full 48-hour dual-axis motion load bench calibration before installation into production etch chambers.
3. Will swapping this lift motion board erase saved axis velocity profiles or mechanical overtravel trigger limits?All lift trajectory tuning tables, encoder position offset calibrations, and mechanical safety trip thresholds reside on the board’s internal flash memory. Complete a full motion parameter backup via the tool HMI before any swap to restore calibration data if serial bus handshake communication errors occur post-installation.
4. What warranty coverage comes with New Surplus OEM inventory versus refurbished units?Our New Surplus OEM stock carries a 12-month full functional warranty matching original Lam factory spare coverage. Refurbished aftermarket assemblies ship with only a 3–6 month limited warranty, as aged differential signal ICs create unquantified risk of mid-run wafer mislift that cracks production wafer substrates.
5. Why is New Surplus OEM hardware priced higher than aftermarket refurbished equivalents?New Surplus inventory retains factory-calibrated encoder channel tolerances, zero operating hour thermal fatigue on motion drive semiconductors, and full traceability to Lam’s component validation batches. Refurbished units reuse aged PCBs, generic replacement signal transceivers, and skip full plasma RF interference cycling testing; hidden motion drift defects lead to unplanned chamber downtime with far greater total wafer scrap cost than the upfront component price difference.
6. Does this lift axis drive PCBA support all Lam legacy plasma etch chamber platforms?This Revision 003 compact rack-mount variant only integrates with Kiyo and TCP9400 300mm etch chamber motion subrack assemblies. No cross-compatibility exists with older 200mm etch fleets, as motor drive pinouts and serial bus register mapping differ entirely.
7. What routine maintenance schedule applies to this lift motion control unit in high-volume production fabs?Execute full encoder signal and overtravel interlock validation every 6 months during scheduled chamber PM cycles. Replace the complete unit after 39,000 operating hours, as onboard differential signal conditioning ICs develop gain drift under continuous cabinet heat and 13.56MHz RF plasma exposure that degrades long-term wafer transfer repeatability.
