Product Core Brief

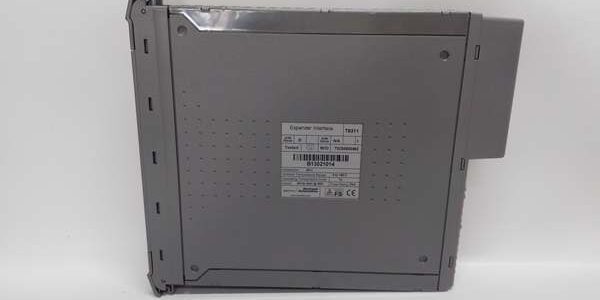

- Model: T8311
- Brand: ICS Triplex (Rockwell Automation)
- Series: Trusted TMR Safety Control Series ⚠️ EOL — limited new surplus stock remaining
- Core Function: Create triple redundant high-speed bus links between primary Trusted chassis and remote T8300 I/O expansion racks to scale total system I/O capacity
- Product Type: Backplane-mount TMR expander interface communication module
- Key Specs: 250 Mbps triplicated expander bus | Hot-swap compatible | Native pairing with T8300 expansion chassis | Condition: New Original Surplus
Product Introduction
The ICS Triplex acts as the critical communication bridge for Trusted SIS systems, carrying triplicated logic and field I/O data between a main rack housing the T8110B CPU and distributed T8300 expansion chassis. It maintains full 2oo3 voting integrity across all remote I/O points without signal latency spikes.This expander module delivers a 250 Mbps bus throughput, 2.5x faster than older T8310 base expanders. OEM reliability testing records an MTBF of 116,000 operating hours at a steady 40 °C cabinet ambient.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Bus Architecture | Triple Modular Redundant (TMR) expander bus, three isolated data lanes |
| Expander Bus Throughput | 250 Mbps full duplex triplicated data transfer rate |
| Supported Expansion Hardware | T8300 remote I/O expansion chassis only |
| System Backplane Supply | 20 VDC to 32 VDC nominal 24 VDC dual redundant rack power |
| Typical Power Draw | 5 W steady-state; maximum 54 W full bus load |
| Hot-Swap Behavior | Live rack replacement without main chassis shutdown or logic halt |
| Onboard Diagnostics LEDs | Module health, bus activity, lane fault, power status indicators |
| Operating Ambient Temp | 0 °C to +60 °C; storage -25 °C to +70 °C |
| Humidity Tolerance | 5%–95% RH non-condensing cabinet atmosphere |
| Safety Certification | IEC 61508 SIL 3, TÜV AK6, UL/cUL, CE, IP20 cabinet-only |
| Physical Dimensions | 303 mm L × 31 mm W × 266 mm D; net weight 1.14 kg |
| Fault Detection Coverage | Continuous monitoring of all three redundant bus lanes for open/short signal faults |
Quality Control Process (Engineer’s Perspective)
- Incoming Verification: Cross serial numbers against Rockwell OEM batch manifests to reject counterfeit aftermarket copies. Visually scan rear backplane gold edge pins for bending, front panel LED lenses for scratches, and expander bus port contacts for corrosion.
- Live Functional Test: Insert module into a Trusted main test chassis paired with a Fluke 115 regulated 24 VDC supply and one populated T8300 expansion rack. Run a 24-hour soak cycle with full mixed analog/digital I/O load, log bus throughput and lane fault detection hourly.
- Electrical Parameter Test: Use a 500 V Megger to measure insulation resistance between each triplicated bus lane and chassis ground; pass threshold is >10 MΩ. Verify single-lane fault isolation without full bus outage.
- Firmware Verification: Read and record expander interface firmware build number via TRISTATION 1131 software; photograph front-panel bus termination DIP switch positions for site wiring reference records.
- Final QC & Packaging: Place module inside static-dissipative poly bag. Affix dated QC Pass sticker listing measured insulation resistance and total soak test runtime before palletized storage.
Replacement Pitfall Guide
❗ Firmware Mismatch Risk: The firmware v5.2+ cannot hot-swap with main chassis running v4.8 or older without re-downloading the full SIS application database. Unmatched firmware triggers persistent triplicated bus lane vote mismatch critical faults.❗ Expansion Chassis Hardware Mismatch Risk: This module only interfaces with remote racks. Mating it to AADvance T9xxx expansion hardware creates unrecognizable bus protocol errors and total remote I/O loss.❗ Bus Termination Jumper Misconfiguration Risk: Factory default DIP switches disable far-end bus termination. Leaving jumpers unmodified on long cable runs generates signal reflection noise that corrupts 250 Mbps data packets.❗ Power Supply Headroom Miscalculation Risk: A fully loaded ICS Triplex draws 5 W steady-state at 24 VDC. Size cabinet power supplies with 20% overhead; underrated racks drop voltage below 20 VDC and lock all remote expansion I/O into safe-state offline logic.❗ ESD Damage Risk: Exposed backplane gold contacts remain unprotected during hot-swap removal. Use a grounded anti-static mat in low-humidity cabinet spaces; static discharge scratches plating and generates intermittent single-lane bus dropout faults.Keep these in mind and you’ll cut 90% of rework time.
Compatibility Matrix & Benchmarks
Compatibility Matrix
- T8110B (Trusted TMR Main CPU) → : Native Compatible — Direct backplane bus communication, no signal adapter hardware required
- (Remote I/O Expansion Chassis) → : Direct Replacement — Native triplicated bus pinout matching, zero inter-chassis wiring rework
- T9110 (AADvance Series CPU) → : Incompatible — AADvance proprietary backplane bus cannot interpret Trusted expander bus protocol
Benchmarks
- Full mixed I/O chassis bus scan latency: 110 µs (fully populated rack, 24 VDC nominal supply)
- Single lane fault isolation delay: <1 ms before redundant lanes take full data load
- Continuous power consumption: 4.7 W average under fully loaded expansion rack traffic
