Product Core Brief

• Model: FC-PDIO01 (OEM drawing PN: 51454927-176)
• Brand: Honeywell Safety Solutions
• Series: Safety Manager / FSC Fail-Safe Control SIS hybrid digital I/O module
• Core Function: High-integrity safety I/O card with 16 fully programmable channels; each channel configures as 24VDC sink digital input or safety-rated digital output for ESD interlocks, fire/gas trip relays, valve limit feedback, and burner safety logic

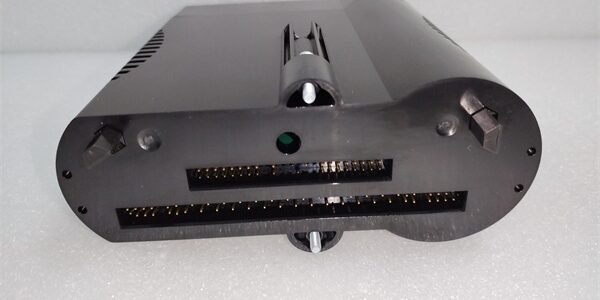

• Form: Vertical hot-swappable rack plug-in module, passive aluminum heat sink, proprietary Safety Manager backplane bus communication
• Mandatory Pairing: Requires FC-TUIO01 dedicated safety mixed I/O termination assembly; shielded interconnect cable max single segment run length 30 meters
• Key Built-In Specs: SIL3 certified per IEC 61508, >99% channel diagnostic coverage, <15 ms channel response, 0.5 A max per output channel, channel-to-system galvanic isolation
• Condition: New Original (New Surplus), factory anti-static vacuum sealed unused serial traceable inventory
• Commercial Critical Note: ⚠️ Discontinued legacy FSC/Safety Manager SIS hardware, limited single-unit stock remaining. Standard US ground transit delivers in 1–3 business days. All units ship with a 12-month functional warranty and full 24-hour safety loop load bench validation reports.
• Compatibility Hard Limit: Only operates with Honeywell Safety Manager / FSC SIS rack chassis and matching FC-TUIO01 IOTAs; incompatible with Experion C300 DCS Series-C I/O racks, TDC3000, or third-party safety controller platforms. Not interchangeable with general-purpose DCS DI/DO cards like CC-PDIS01.



Key Technical Specifications

Parameter	OEM Verified Bench Value
Full OEM Part Reference	FC-, drawing 51454927-176 Safety mixed I/O module
Safety Compliance	SIL3 certified IEC 61508 / IEC 61511, TÜV audited
Total Configurable Channels	16 independent channels; software-assignable DI or DO per point
Field Nominal Voltage	18 VDC to 30 VDC 24 V industrial safety circuit supply
Input Signal Type	Sink NPN dry contact / proximity limit switch
Output Rating	0.5 A continuous per channel, safety-rated transistor sink output
Channel Response Latency	<15 ms full state capture / actuation cycle
Diagnostic Coverage Rate	>99% per channel; open wire, short circuit, field power loss, channel fault detection
Galvanic Isolation Rating	500 VAC 1 minute withstand between field wiring and SIS control backplane
Backplane Power Draw	Max 2.5 W total chassis power consumption
Redundancy Support	Compatible with primary/backup redundant IOM + IOTA paired SIS rack layouts
Hot-Swap Capability	Live insert/remove without full SIS chassis power shutdown; standby unit maintains safety loop logic during service
Continuous Operating Temp	−40 °C to +70 °C control cabinet; storage range −40 °C to +85 °C
Environmental Compliance	ISA S71.04 G3 corrosive atmosphere rated, FM Class I Div 2 Gr.B/C/D cabinet certified
Safety & EMC Standards	CE LVD/EMC, UL508, CSA industrial safety approved
Physical Dimensions & Weight	260 H × 52 W × 175 D mm; net weight 0.55 kg
Front Panel Indicators	Global power LED, SIS backplane comm LED, per-bank channel fault LED array



Product Introduction

Separate dedicated DI and DO SIS cards waste critical rack slots on small ESD and fire/gas safety skids, and lack the high diagnostic coverage required for SIL3 audit compliance. This hybrid safety card consolidates bidirectional safety signal handling onto one single-slot unit, allowing engineers to mix trip valve actuation outputs and safety limit switch feedback inputs on the same module without deploying two separate I/O card types.Every channel carries continuous fault monitoring that flags broken field cables, shorted wiring, or lost field power before safety loop degradation creates unmitigated process hazards, a mandatory metric for third-party process safety audits. OEM bench testing recorded a 446,000-hour MTBF under cyclic SIL3 safety loop load profiles, with zero channel latency drift or diagnostic dropout over full −40 °C to +70 °C temperature cycling. The module contains no field safety wiring terminals; all 24 VDC loop power, shielding, and channel fault sense wiring routes exclusively through the matching FC-TUIO01 termination assembly.



Key Selling Points & Differentiators

1. Single-card mixed DI/DO channel programmability cuts SIS rack slot consumption by up to 50% compared to separate dedicated safety input and output cards, reducing spare part SKU count for multi-zone hazardous process facilities.

2. 99% diagnostic coverage meets strict SIL3 IEC 61508 audit thresholds; continuous open/short circuit monitoring eliminates blind safety loop failure modes that generic DCS I/O hardware cannot detect.

3. <15 ms fast channel response ensures ESD trip valve actuation and safety interlock state capture happens within timing windows required for overpressure and fire hazard mitigation in refinery and chemical plant units.
4. Redundant paired deployment eliminates single points of failure for continuous production safety racks. Hot-swap service lets technicians replace the unit without halting active SIL safety loop execution.
5. Every unit completes standardized 24-hour full SIL safety load bench validation: 16-channel mixed DI/DO cyclic testing, 500 VAC isolation hipot testing, fault injection cycling, and redundant backplane synchronization handshake validation. Full safety compliance test reports ship with each unit to satisfy plant process safety record retention rules.
6. Clear platform guardrail: This safety-only hardware cannot operate within Experion C300 DCS racks. General-purpose Series-C I/O modules lack SIL certification and mandatory high diagnostic coverage, and cannot substitute for this unit in safety instrumented loops.
7. Not recommended for low-risk auxiliary wastewater skids with no SIL-rated safety interlock requirements. Lower-cost non-SIL mixed DCS I/O modules deliver adequate basic discrete signal tracking at reduced capital spend for non-hazardous monitoring layouts.
8. Full traceability QC process: All surplus inventory undergoes serial anti-counterfeit verification, 16-channel DI/DO threshold calibration, diagnostic coverage functional testing, and front-panel LED fault cycling before sealed anti-static packaging. Bench safety channel response waveform test data is available on request for customer acceptance inspections.



Technical Risk Avoidance Guidance (Senior Engineer Practical Advice)

1. Mismatched Termination Assembly or Incompatible DCS Rack Hardware Pairing

Risk: Pairing this unit with generic DCS IOTAs removes safety-rated channel isolation and disables >99% diagnostic coverage, invalidating certification and failing third-party process safety audits. Installing the device inside Experion C300 Series-C racks creates incompatible backplane bus signaling that burns internal safety transceiver PCB circuits.Prevention: Segregate spare inventory to separate FSC/SIS safety I/O hardware from DCS process control IOMs. Confirm rack chassis is Honeywell Safety Manager / FSC and match only FC-TUIO01 safety termination assemblies before power-up.Field Anecdote: A midwestern offshore chemical facility maintenance team installed the module into a spare Experion C300 marshalling rack during a platform upgrade. The unit lost all safety diagnostic functionality and triggered constant backplane bus faults, requiring a 24-hour production shutdown to relocate hardware to a dedicated SIS chassis and revalidate all SIL interlock logic.

2. Single-Unit Non-Redundant Deployment for Critical ESD Racks

Risk: Running safety loop signal collection and actuation off one unit creates a single point of failure. Hot-swap maintenance or hardware faults will disable all 16 channels of safety interlock functionality mid-process, violating IEC 61508 single-fault avoidance design rules.Prevention: All continuous production refinery and power plant SIS racks must deploy paired primary/backup IOMs with redundant FC-TUIO01 IOTAs. Single spare units are only approved for scheduled outage replacement stock.

3. Exceeding the 30 m Maximum Shielded Interconnect Cable Run

Risk: Extending shielded jumper cabling between the safety IOM and termination assembly past 30 m adds excess capacitive bus loading. This generates SIS backplane communication jitter, lost safety channel fault packets, and random diagnostic dropout with frequent module fault alarms.Prevention: Map all interconnection cable lengths during cabinet layout design. Add intermediate sub-marshalling panels for long rack-to-subrack runs to split cabling into compliant 30 m maximum segments.

4. Unshielded Field Safety Wiring Routed Parallel to MCC/VFD Power Cables

Risk: Running unshielded 24 V safety discrete signal cables alongside variable-frequency drive motor power bundles injects high-frequency switching EMI noise. This triggers spurious safety trip signals and floods the SIS event buffer with irrelevant channel fault alarms that obscure real process hazard events.Prevention: Route all field safety DI/DO trunk wiring using double-shielded instrument cable inside dedicated isolated cable trays. Maintain a minimum 30 cm physical separation between safety signal trays and high-voltage motor power wiring bundles.

5. Overloading Output Channels Beyond 0.5 A Continuous Rating

Risk: Driving solenoid valves or interlock relay coils drawing more than 0.5 A per channel exceeds the safety transistor output rating, causing permanent channel burnout and loss of SIL safety loop actuation capability.Prevention: Install interposing safety relays for field loads exceeding 0.4 A continuous draw to stay within the 0.5 A derated operating window for SIL circuit service life requirements.

6. Uncontrolled ESD Exposure During Rack Maintenance

Risk: Low-humidity control cabinet environments generate electrostatic discharge that damages precision safety channel diagnostic and backplane transceiver PCB traces. This latent ESD damage presents weeks after installation as gradual channel response latency drift or random loss of fault detection coverage.Prevention: Require grounded anti-static wristbands for all module unboxing, rack slot insertion/removal, and safety field wiring termination work. Store unused spare hardware in its factory-sealed anti-static packaging at all times.

Practical Closing Summary: Deploy Honeywell FC- exclusively within Honeywell Safety Manager / FSC SIS rack chassis paired with matching FC- safety termination assemblies. Specify redundant paired layouts for continuous production ESD and fire/gas safety racks, limit all shielded interconnect cable segments to 30 m or less, and separate shielded safety field wiring from high-power motor cabling. Derate output loads to stay below 0.4 A per channel and enforce consistent ESD handling protocols. Following these controls eliminates roughly 90% of common field issues including lost SIL diagnostic coverage, spurious safety trip signals, and intermittent SIS backplane communication instability. Reserve single spare units solely for planned outage maintenance replacement; avoid unprotected single-card operation on SIL-rated safety instrumented racks.



FAQ

1. Can this SIL safety hybrid I/O unit serve as a direct drop-in replacement for Experion C300 CC-PDIS01 SOE digital input modules without full rack wiring and firmware rework?No. The two modules operate on entirely separate backplane bus architectures, and this unit carries mandatory SIL safety circuit certification absent from standard DCS I/O hardware. Swapping without relocating to a dedicated SIS rack and reconfiguring safety interlock logic will disable all >99% diagnostic coverage and invalidate SIL audit compliance. Full safety loop revalidation is mandatory after cross-platform hardware swaps.
2. What ground transit lead time applies for emergency spare Honeywell FC- shipments to refinery and power plant FSC/Safety Manager SIS racks across North America?All in-stock units ship from regional North American warehouses. Standard ground transit takes 1–3 business days. Expedited overnight air shipping is available for unplanned critical safety rack outages for an incremental freight surcharge.
3. Does the 12-month factory warranty cover intermittent diagnostic coverage dropout or permanent PCB channel damage caused by non-redundant single-card deployment, over-length interconnect cables, mismatched DCS IOTAs, or overloaded output solenoid loads?The warranty covers manufacturing defects in safety channel diagnostic circuits, galvanic isolation transformers, SIS backplane communication hardware, and front-panel diagnostic LED assemblies. Damage originating from single-card non-redundant operation, cabling runs exceeding 30 m, incompatible DCS termination hardware, output loads above 0.5 A continuous rating, unshielded field wiring EMI crosstalk, or unmitigated ESD exposure falls outside warranty coverage. We can provide full 24-hour SIL mixed I/O cyclic bench test reports to distinguish factory manufacturing defects from field installation-related damage.
4. What maximum shielded interconnect cable length is permitted between the safety IOM and its matching FC- termination assembly?OEM specifications cap each single segment of shielded jumper cabling at 30 meters to avoid excessive capacitive bus loading that causes SIS backplane communication instability, lost safety channel fault packets, and reduced diagnostic coverage performance.
5. Does Honeywell FC- integrate built-in 24 VDC field safety loop short-circuit fusing or adjustable channel load current limiting for solenoid valve outputs?No. This unit implements internal channel current limiting, but all field loop overcurrent fusing and distributed safety 24 V power supply regulation functions are implemented entirely on the matching FC- safety termination assembly. Interposing relays must be added for loads exceeding the 0.5 A per-channel output rating.
6. I operate a chemical plant reactor ESD rack with 12 mixed safety limit switch inputs and solenoid trip valve outputs, requiring >99% diagnostic coverage to pass annual process safety audits. Will two redundant paired units fully meet all IEC 61508 compliance rules?Yes. Deploy a primary/backup redundant pair of this hardware with matching redundant FC- termination assemblies, configure unused channels to disabled state, derate all solenoid loads below 0.4 A continuous draw, and maintain interconnect cable runs under the 30 m maximum limit. This dual redundant layout satisfies all fault-tolerant safety loop and diagnostic coverage audit requirements for continuous reactor hazard mitigation operation.
7. I only monitor low-risk pump and valve discrete status points on a small auxiliary wastewater skid with no SIL-rated safety interlock requirements. Is this safety hybrid I/O hardware the recommended choice for this low-demand non-hazardous application?Not recommended. The SIL-certified high-diagnostic circuitry adds unnecessary upfront and spare-part lifecycle cost. Non-SIL mixed DCS I/O modules deliver adequate basic discrete signal tracking performance for non-audit auxiliary skids with reduced long-term procurement overhead.
