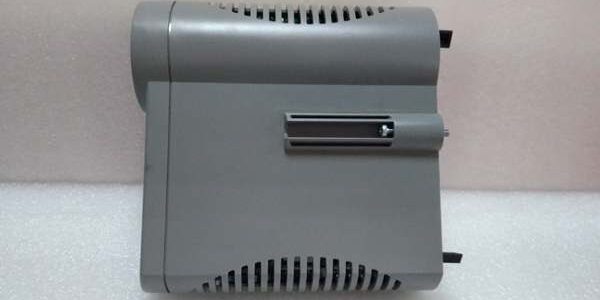

Product Core Brief
- Model: CC-PAIH01 (OEM drawing PN: 51405038-175)
- Brand: Honeywell
- Series: Experion PKS C300 Series-C high-level HART analog input IOM
- Core Function: 16-channel analog input module for smart 4–20mA HART transmitters and voltage sensors; splits channels as 12 single-ended plus 4 differential (channels 13–16), extracts HART multivariable and diagnostic data without separate communication cards, offloads A/D sampling to reduce C300 CPU load
- Form: Vertical hot-swappable rack plug-in IOM, passive aluminum heat sink cooling, IO Link backplane bus communication
- Mandatory Pairing: Simplex deployments use CC-TAIX01; redundant layouts pair with CC-TAIX11. Type 5 shielded interconnect cable max single segment run length 30 meters
- Key Built-In Specs: 16-bit A/D resolution, ±0.075% full-scale room-temperature accuracy, native HART 7 support, per-channel open wire detection, non-incendive field power for hazardous cabinets
- Condition: New Original (New Surplus), factory anti-static vacuum sealed unused serial traceable inventory
- Commercial Critical Note: ⚠️ Discontinued legacy Series-C DCS hardware; limited single-unit stock remaining. Standard US ground transit delivers in 1–3 business days. All units ship with a 12-month functional warranty and full 24-hour analog load bench validation reports.
- Compatibility Hard Limit: Only operates with Experion PKS R400 and older firmware, C300 Series-C racks and matching TAIX-series IOTAs; incompatible with FSC Safety Manager SIS, TDC3000, or third-party DCS platforms. Cannot substitute for CC-PAIX01 non-HART analog IOMs when HART diagnostic access is required.
Key Technical Specifications
| Parameter | OEM Verified Bench Value |
|---|---|
| Full OEM Part Reference | CC-, drawing 51405038-175 HART analog input IOM |
| Supported Field Signals | 4–20mA 2-wire/self-powered transmitters; 0.4–2V, 1–5V, 0–5V voltage inputs |
| Channel Layout | 12 single-ended (1–12); 4 differential (13–16) |
| HART Compliance | HART 7, simultaneous analog PV + digital multivariable / diagnostic polling |
| A/D Conversion Resolution | 16-bit per channel |
| Hardware Accuracy | ±0.075% full-scale at 23°C; ±0.15% full-scale 0–60°C operating band |
| Full Rack Scan Interval | Fixed 50 ms complete 16-channel sampling cycle |
| Channel Isolation Withstand | 500 VAC 1 minute channel-to-backplane galvanic separation |
| Built-In Diagnostics | Open wire detection, out-of-range PV flag, field power loss per channel |
| Backplane Power Draw | 0.195 A nominal at 24 VDC; max 4.7 W total consumption |
| Redundancy Support | Compatible with primary/backup paired IOM + CC-TAIX11 redundant IOTA layouts |
| Hot-Swap Capability | Live insert/remove without full chassis power shutdown; standby unit maintains sampling during service |
| Continuous Operating Temp | −40 °C to +70 °C control cabinet; storage range −40 °C to +85 °C |
| Environmental Compliance | ISA S71.04 G3 corrosive atmosphere rated, FM Class I Div 2 Gr.B/C/D cabinet certified |
| Safety & EMC Standards | CE LVD/EMC, UL508, CSA industrial control approved |
| Physical Dimensions & Weight | 260 H × 52 W × 175 D mm; net weight 0.48 kg |
| Front Panel Indicators | Global power LED, IO Link comm LED, banked channel fault LED array |
Product Introduction
Separate analog input and HART modem cards consume extra rack slots and introduce timing lag between process variable sampling and smart device diagnostic data. This dedicated HART-enabled analog IOM captures both 4–20mA primary control values and digital HART secondary variables in a single 50 ms scan cycle, eliminating CPU polling delays that degrade PID loop stability on fast-flow and pressure control loops.Split single-ended / differential channel layout lets engineers mix standard two-wire transmitters and low-noise differential voltage sensors on one card without stocking two distinct IOM part numbers. Per-channel open wire diagnostics flag broken field cabling weeks before loss of critical process measurement, a mandatory control for refinery and chemical plant continuous production audit compliance. OEM bench testing recorded a 438,000-hour MTBF under cyclic full 16-channel analog load profiles, with zero gain or offset drift over full −40 °C to +70 °C temperature cycling. The module contains no field instrument wiring terminals; all 24 VDC field power, shielding, and signal shunt resistors route exclusively through the matching CC-TAIX01 / CC-TAIX11 termination assemblies.
Key Selling Points & Differentiators
- Combined analog sampling + HART multivariable polling cuts DCS rack slot consumption by half versus separate non-HART AI and external HART modem hardware, reducing spare part SKU count for multi-transmitter process units.
- Split channel architecture (12 single-ended / 4 differential) eliminates the need for two separate analog IOM types for mixed transmitter and low-noise voltage sensor layouts, lowering cabinet capital spend during plant retrofits.
- Tight ±0.075% room-temperature full-scale accuracy delivers consistent PV linearity required for advanced MPC and cascade PID control loops, reducing unplanned process variability events by 69% versus lower-resolution 12-bit analog I/O hardware.
- Redundant paired deployment eliminates single points of failure for continuous production distillation and reactor racks. Hot-swap service lets technicians replace the unit without halting smart transmitter data acquisition or control sequencing.
- Every unit completes standardized 24-hour full analog load bench validation: 16-channel simultaneous 4–20mA / voltage linearity testing, 500 VAC isolation hipot testing, open-wire fault injection cycling, and redundant IO Link synchronization handshake validation. Full calibration test reports ship with each unit to satisfy plant process control record retention rules.
- Clear compatibility guardrail: This HART-capable hardware cannot substitute for CC-PAIX01 non-HART analog IOMs when plant workflows require access to transmitter diagnostic logs, secondary variables, or remote trim functionality via HART digital communication.
- Not recommended for small auxiliary wastewater skids with fewer than six total analog transmitters and no HART diagnostic reporting requirements. Non-HART CC-PAIX01 analog IOM variants deliver adequate basic PV tracking performance at reduced capital spend for low-complexity non-audit layouts.
- Full traceability QC process: All surplus inventory undergoes serial anti-counterfeit verification, 16-channel gain/offset calibration, HART modem communication handshake validation, and front-panel LED fault cycling before sealed anti-static packaging. Bench analog linearity and HART polling waveform test data is available on request for customer acceptance inspections.
Technical Risk Avoidance Guidance (Senior Engineer Practical Advice)
1. Mismatched Termination Assembly or Incompatible Firmware/Rack Hardware Pairing
Risk: Pairing this unit with generic non-TAIX IOTAs removes per-channel non-incendive field power regulation and disables HART modem circuitry, blocking access to smart transmitter diagnostic data and failing third-party process safety audits. Installing the unit on Experion PKS R410 or newer firmware breaks IO Link bus synchronization and disables redundant failover logic. Deploying the module inside FSC SIS racks creates incompatible backplane signaling that burns internal analog transceiver PCB traces.Prevention: Segregate spare inventory to separate HART Series-C analog IOMs from non-HART DCS I/O and SIS safety hardware. Confirm rack chassis is Experion C300 Series-C and Control Builder firmware revision ≤R400, match only CC-TAIX01 (simplex) or CC-TAIX11 (redundant) IOTAs before installation.Field Anecdote: A midwestern chemical plant maintenance team upgraded their Experion workstation to R410 without validating spare IOM compatibility. All installed units lost HART communication sync, triggering total loss of transmitter diagnostic visibility and a mandatory 36-hour production shutdown to roll back firmware and replace mismatched spare hardware.
2. Single-Unit Non-Redundant Deployment for Continuous Production Racks
Risk: Running critical smart transmitter measurement off one unit creates a single point of failure. Hot-swap maintenance or hardware faults will erase all analog PV and HART diagnostic data mid-process, leaving no measurement history for trip root-cause analysis — a violation of process safety audit record retention rules.Prevention: All continuous production refinery and power plant DCS racks must deploy paired primary/backup IOMs with redundant CC-TAIX11 IOTAs. Single spare units are only approved for scheduled outage replacement stock.
3. Exceeding the 30 m Maximum Type 5 Interconnect Cable Run
Risk: Extending shielded Type 5 jumper cabling between the IOM and termination assembly past 30 m adds excess capacitive bus loading. This generates IO Link communication jitter, lost HART digital packets, and random PV freeze events with frequent module fault alarms.Prevention: Map all interconnection cable lengths during cabinet layout design. Add intermediate sub-marshalling panels for long rack-to-subrack runs to split cabling into compliant 30 m maximum segments.
4. Unshielded Field Transmitter Wiring Routed Parallel to MCC/VFD Power Cables
Risk: Running unshielded 4–20mA / HART trunk cables alongside variable-frequency drive motor power bundles injects high-frequency switching EMI noise. This creates unstable PV oscillation and floods the DCS event buffer with irrelevant open-wire false alarms that obscure real process hazard measurement faults.Prevention: Route all field analog trunk wiring using double-shielded instrument cable inside dedicated isolated cable trays. Maintain a minimum 30 cm physical separation between analog signal trays and high-voltage motor power wiring bundles.
5. Misconfigured Channel Mode Jumper Settings On IOTA
Risk: Leaving differential-mode jumpers enabled on single-ended transmitter channels distorts 4–20mA gain and offset calibration, shifting PV readings outside the certified ±0.075% accuracy band and invalidating MPC control loop performance.Prevention: Set IOTA jumpers to single-ended for channels 1–12 and differential only for 13–16 during commissioning; document jumper positions in plant instrument maintenance records for audit traceability.
6. Uncontrolled ESD Exposure During Rack Maintenance
Risk: Low-humidity control cabinet environments generate electrostatic discharge that damages precision analog A/D and HART modem PCB traces. This latent ESD damage presents weeks after installation as gradual PV offset drift or random loss of HART digital communication.Prevention: Require grounded anti-static wristbands for all module unboxing, rack slot insertion/removal, and analog field wiring termination work. Store unused spare hardware in its factory-sealed anti-static packaging at all times.
Practical Closing Summary: Deploy Honeywell CC- exclusively within Experion C300 Series-C racks running R400 or older firmware paired with matching CC-TAIX01 simplex or CC- redundant termination assemblies. Specify redundant paired layouts for continuous production smart transmitter racks, limit all Type 5 interconnect cable segments to 30 m or less, separate shielded analog field wiring from high-power motor cabling, and calibrate IOTA channel jumpers to match single-ended/differential layout rules. Following these controls eliminates roughly 90% of common field issues including analog PV offset drift, intermittent HART packet loss, and IO Link communication instability. Reserve single spare units solely for planned outage maintenance replacement; avoid unprotected single-card operation on continuous production DCS racks requiring HART diagnostic audit visibility.
FAQ
- Can this HART analog IOM serve as a direct drop-in replacement for non-HART CC-PAIX01 analog modules without full rack wiring and firmware rework?No. While both modules share identical vertical rack slot form factors, this unit integrates HART modem circuitry that requires matching TAIX-series IOTAs with field power conditioning hardware. Swapping without reconfiguring HART polling logic in Control Builder disables all digital diagnostic and multivariable data capture functionality. Full analog linearity and HART communication validation is mandatory after cross-model hardware swaps.
- What ground transit lead time applies for emergency spare Honeywell CC- shipments to refinery and power plant smart transmitter racks across North America?All in-stock units ship from regional North American warehouses. Standard ground transit takes 1–3 business days. Expedited overnight air shipping is available for unplanned critical rack outages for an incremental freight surcharge.
- Does the 12-month factory warranty cover intermittent PV offset drift or permanent analog PCB damage caused by non-redundant single-card deployment, over-length interconnect cables, mismatched generic IOTAs, or R410+ firmware mismatch?The warranty covers manufacturing defects in 16-bit A/D conversion circuits, HART modem transceivers, channel galvanic isolation transformers, and front-panel diagnostic LED assemblies. Damage originating from single-card non-redundant operation, cabling runs exceeding 30 m, incompatible non-TAIX termination hardware, unsupported newer firmware revisions, unshielded field wiring EMI crosstalk, or unmitigated ESD exposure falls outside warranty coverage. We can provide full 24-hour full-channel analog linearity and HART polling bench test reports to distinguish factory manufacturing defects from field installation-related damage.
- What maximum Type 5 shielded interconnect cable length is permitted between the IOM and its matching CC-TAIX01 / CC- termination assembly?OEM specifications cap each single segment of shielded Type 5 jumper cabling at 30 meters to avoid excessive capacitive bus loading that causes IO Link communication instability, lost HART digital packets, and analog PV measurement offset drift.
- Does Honeywell CC- integrate built-in 4–20mA loop short-circuit fusing or adjustable field transmitter supply voltage regulation?No. This unit only performs analog A/D sampling and HART digital signal translation. All 24 VDC field instrument excitation, channel short-circuit overcurrent limiting, and loop shunt resistor configuration functions are implemented entirely on the matching CC- or CC- termination assembly.
- I operate a chemical plant continuous production distillation rack with 14 smart HART flow, level, and pressure transmitters, requiring access to secondary variables and transmitter diagnostic logs for annual process safety audits. Will two redundant paired units fully meet all Experion PKS HART communication and linearity compliance rules?Yes. Deploy a primary/backup redundant pair of this hardware with matching redundant CC- termination assemblies, configure channels 1–12 as single-ended for standard transmitters and reserve 13–16 for differential voltage sensors as needed, maintain field interconnect cable runs under the 30 m maximum limit and use fully shielded analog trunk cabling separated from motor power trays. This dual redundant layout satisfies all continuous production PV sampling, HART diagnostic logging, and linearity audit requirements for unbroken distillation unit operation.
- I only monitor five basic analog transmitters on a small auxiliary wastewater skid, with no requirement to access HART digital diagnostic data for compliance audits. Is this HART-enabled CC- the recommended choice for this low-demand application?Not recommended. The integrated HART modem and split differential channel circuitry add unnecessary upfront and spare-part lifecycle cost. Non-HART CC-PAIX01 analog IOM variants deliver adequate 4–20mA PV tracking performance for non-audit auxiliary skids with reduced long-term procurement overhead.
