Field Engineer’s Notes (From the Trenches) The “Gotcha” is Battery Replacement, Store to Flash & Ethernet IP Planning. Battery (IC698ACC701): The CPX772 willlose its program if the battery dies AND power is lost. The “BAT LOW” LED illuminates ~30 days before failure. Rule: Replace the battery with power ON during a scheduled downtime. If you…
Field Engineer’s Notes (From the Trenches) The “Gotcha” is Shielding, Input Voltage Selection & Gate Logic. Shielding / Wiring: A/B/Z are differentialsignals inside the module but single-endedto the encoder supply. Use shielded twisted pair: A with A,B with B,Z with Z\ (if used). Drain the shield at the (or at the encoder metal housing…
Quick Sizing & Sourcing Snapshot Manufacturer: GE Fanuc (Emerson Machine Automation) Part Number: IC660BBD120 System Platform: GE Genius I/O System (Block I/O) Hardware Type: 16-Point Digital Output Block (Source / PNP Type) Architectural Role: Standalone Genius Block interfacing to the Genius Bus, sourcing +24V DC to field loads (solenoids, pilot relays, indicators) under Bus Controller…
Field Engineer’s Notes (From the Trenches) The “Gotcha” is Common (C) = AC Neutral & Filter Delay. Common (C) Terminal: There is ONE Common for all 16 points. It is notinternally tied to anything. You must land a wire from your 120V AC Neutral (or Return leg of a 120V control transformer secondary) to the…

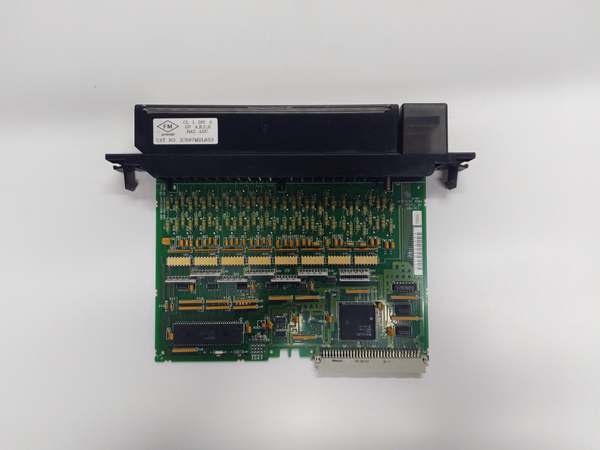

Customer Value & Operational Benefits Sinking Input for PNP (Source) Sensors & Dry Contacts The MDL653 is the standard for PNP (Source) Sensors common in North American industrial automation — the sensor outputs +24V when made; you land that directly to the MDL653 input terminal. It also works with Dry Contacts where you land +24V…
Field Engineer’s Notes (From the Trenches) The “Gotcha” is Common Wiring & Sourcing vs Sinking. Commons (C1-C3): There are 3 Commons, one per group of 8. They are notinternally tied. You must land a 0V wire from your 24V DC supply to eachCommon terminal (C1, C2, C3) on the IC693TBB003, or jumper them externally if…
Field Engineer’s Notes (From the Trenches) The “Gotcha” is Sourcing vs Sinking Wiring (PNP vs NPN) and V+ Terminal Landing. Sourcing (This Module): The load connects between the Output terminal and 0V (return). The module sources+24V fromthe V+ terminal throughthe FET tothe Output terminal. Wrong Way: Landing 0V to the V+ terminal and the load…
Field Engineer’s Notes (From the Trenches) The “Gotcha” is Backplane Load Calculation & Battery Presence. Load Budget: The 18A @ 5V is the headline, but the reallimit is the total wattage (roughly 90W for +5V + ~19W for ±12V = ~110W total). A fully loaded rack with IC697CPU772 (1.5A), 6 x IC697ALG230 (0.3A ea), 2…
Field Engineer’s Notes (From the Trenches) The “Gotcha” is Sinking vs Sourcing Wiring (NPN vs PNP) and Common Wiring. Sinking (This Module): The load connects between +24V and the Output terminal. The Output terminal connects internallyto the FET which switches to 0V (Common). Wrong Way: Landing +24V to the Common terminal and the load between…
Field Engineer’s Notes (From the Trenches) The “Gotcha” is 1-5V Scaling vs 4-20mA and Shunt Resistors. 1-5V “Current” Mode: The ALG320 has an internal 250Ω shunt for 4-20mA. If you have a voltagetransmitter (0-10V) but want to use the “4-20mA” range for convenience (scaling 4mA=0%, 20mA=100%), you can’t just land 0-10V on the terminals set…
