Component Snapshot At-a-Glance
- Model: 3721
- Alt. P/N: No direct OEM replacement; 3700-series other AI cards differ in channel count/isolation, cannot direct rack swap
- Product Series: Triconex Tricon V9/V10 SIL3 TMR SIS Analog Input family
- Hardware Type: Rack mount triple-modular redundant differential analog input PCB card
- Key Feature: Full 2oo3 hardware voting per channel with independent triplicated ADC circuits
- Primary Field Use: Converts field 0~5V/±5V analog signals from transmitter termination panels to digital values for SIS ESD interlock logic

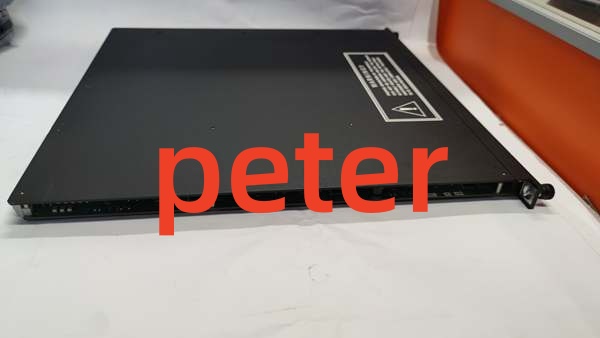

Triconex 3721
Hard-Numbers: Technical Specifications
- Channel Count: 32 differential DC-coupled input channels total
- Config Input Range: 0~5VDC or -5~+5VDC, software selectable via TriStation 1131
- ADC Resolution: 16-bit fixed conversion resolution
- Full Scale Accuracy: ±0.15% FSR across 0℃~60℃ operating band
- Common Mode Rejection: -85dB DC~100Hz for industrial power noise suppression
- Overvoltage Withstand: 150VDC /115VAC continuous channel surge protection
- Dielectric Isolation Rating: 2500V isolation field side vs backplane logic side
- Operating Temp: -40℃ ~ +70℃ continuous operation; -40~+100℃ storage
- Module Power Draw: ≤9W from Tricon backplane regulated rail
- Certification: IEC61508 SIL3, ATEX Zone2, UL hazardous location listed
The Real-World Problem It Solves
Single-path non-redundant analog cards suffer random false trips from single component burnout; a bad ADC chip locks wrong PV values and triggers unplanned ESD shutdown. Generic single-ended input boards can’t filter ground-loop ripple common across long field instrument cabling.
Where you’ll typically find it:
- Refinery FCC SIS racks monitoring reactor pressure, catalyst bed temperature transmitters routed via 9761-210 ETP panels
- Coal power boiler BMS cabinets tracking drum level, feedwater flow analog safety transmitters
- Onshore gas plant HIPPS racks for pipeline high/low pressure safety monitoring loops
Triplicated per-channel voting cuts unplanned SIS trips caused by isolated channel component faults across process facilities.
Hardware Architecture & Under-the-Hood Logic
Entire signal path built on three fully independent isolated ADC sub-circuits per input channel; no shared analog components between TMR legs to avoid common-cause failure.
- Incoming differential field voltage feeds three identical isolated front-end filter circuits simultaneously.
- Each independent leg samples analog value via dedicated 16-bit ADC and converts to raw digital data.
- Onboard hardware comparator executes 2oo3 voting to discard outlier reading from any single faulty sub-circuit.
- Valid voted digital data gets buffered onto Tricon backplane bus for main controller processing.
- Per-channel fault flag registers abnormal deviation between three leg readings and reports channel degrade to TriStation diagnostic logs.
- Internal thermistor triggers gradual sample-rate derate above 65℃ core temp to slow component aging in poorly ventilated sealed cabinets.

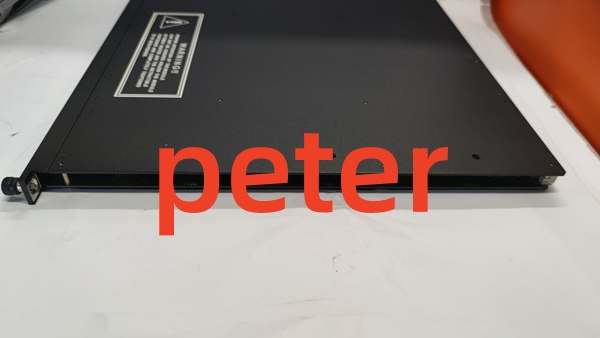

Triconex 3721
Field Service Pitfalls: What Rookies Get Wrong
Using Single-Ended Field Wiring On Differential Input TerminalsTech ties negative channel terminal to cabinet ground; breaks differential topology and amplifies motor/VFD induced common-mode noise leading to erratic PV bouncing and intermittent SIS pre-alarms.
- Field Rule: Leave negative differential leg floating per channel; only ground shield drain wire single-point at termination panel.
Mixing External Shunt Resistors With 9761-210 Paired LoopsField tech adds extra 250Ω resistor when wiring 4-20mA transmitters to matched 9761-210 ETP; parallel resistance drops loop conversion gain, full scale 20mA reads low at 3721 input.
- Quick Fix: Strip all field-mounted shunts for 3721 +9761-210 combinations; rely exclusively on panel factory pre-soldered resistors.
Hot-Swap Module With Backplane Still Dirty From Dust & CondensationMaintenance pulls/replaces live 3721 without blowing rack slot dust; condensation bridging pin traces triggers temporary backplane short and full card fault lockout.
- Field Rule: Compressed air blow slot contacts before hot-swap in high-humidity coastal/refinery cabinets; avoid replacement during early morning dew conditions.
