Component Snapshot At-a-Glance

• Model: 9761-210
• Alt. P/N: No direct OEM cross; 9762-210 is digital input counterpart, resistor network omitted, cannot interchange field install
• Product Series: Triconex Tricon V9/V10 SIL3 SIS External Termination Panel (ETP) family
• Hardware Type: Field-side analog input termination PCB with integrated precision shunt resistors
• Key Feature: Per-channel factory-soldered 250Ω precision resistors to convert 4-20mA field loop into standardized 0-5VDC controller input
• Primary Field Use: Interfaces field-mounted 4-20mA transmitters to Tricon rack AI modules; splits field wiring away from costly core I/O cards to limit surge damage risk

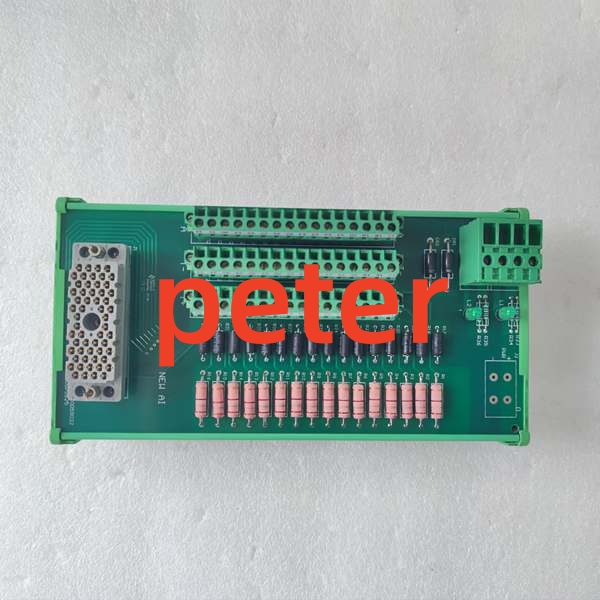

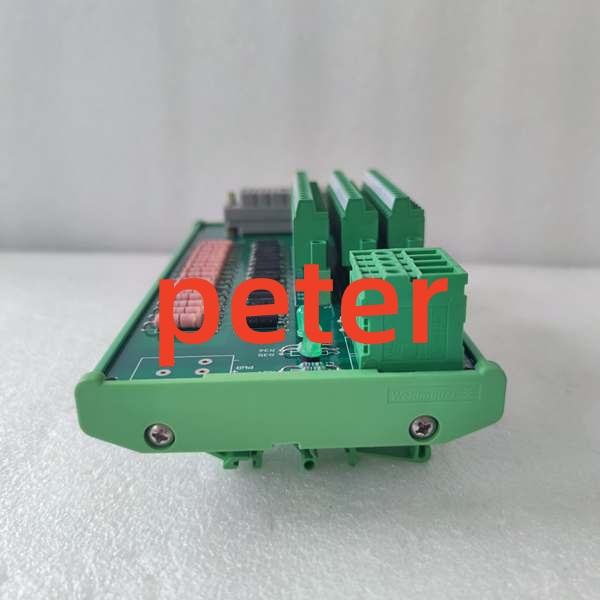

Triconex 9761-210

Hard-Numbers: Technical Specifications

• Channel Count: 16 independent analog input channels per panel
• Signal Conversion: 250Ω ±0.1% fixed per-channel shunt resistor (4–20mA → 0–5VDC conversion)
• Terminal Wire Spec: 12–24 AWG solid/stranded copper; terminal torque 0.5~0.6N·m
• Isolation Rating: 1500VDC dielectric isolation field side ↔ module cable side
• Operating Temperature: -40℃ ~ +70℃ continuous run; -40~+85℃ storage range
• Aux Power Input: Dual redundant 24VDC terminal header for instrument loop power feed (18~30VDC nominal)
• Max Per-Terminal Load: 10A continuous screw terminal rating
• Certification: SIL3 IEC61508, UL1059, ATEX Zone2 hazardous location rated
• Interconnect: Custom flat ribbon cable to mate with corresponding Tricon analog input backplane module

The Real-World Problem It Solves

Direct field wire termination onto expensive Tricon core AI modules exposes sensitive onboard circuitry to lightning surge, field short and transient voltage spikes; single field wiring fault routinely burns entire rack I/O card. Hand-installed loose 250Ω field resistors drift with cabinet heat, creating uncorrectable analog scaling drift across flow/pressure transmitter loops.

Where you’ll typically find it:

• Refinery FCC reactor SIS cabinets tied to furnace pressure and catalyst flow transmitters
• Coal-fired power plant boiler BMS field cabinets near feedwater pump and drum level instruments
• Offshore onshore gas plant HIPPS rack terminal wiring for pipeline pressure safety transmitters

Concentrating all field termination and current-to-voltage conversion on low-cost replaceable ETP cuts expensive core I/O module replacement costs by 70% during field wiring failures.

Hardware Architecture & Under-the-Hood Logic

No onboard microprocessor; all signal conditioning is passive discrete resistor network built on FR4 industrial PCB, no active conversion chips, fully passive signal transformation design.

1. Incoming field 4-20mA transmitter wiring lands on green screw terminal block, split per isolated channel trace.
2. Current flows across fixed 250Ω precision shunt resistor mounted directly on PCB copper trace, generating proportional 0–5VDC voltage drop per channel.
3. Filtered DC voltage routes through short internal PCB traces to dedicated flat ribbon cable header on board upper edge.
4. Pre-made shielded ribbon cable transports conditioned 0–5V signal across cabinet gap to Tricon chassis AI backplane, isolating noisy field wiring from core controller circuitry.
5. Dual independent 24V input terminals split redundant instrument power feeds; two separate DC sources feed field transmitters without cross-contamination on single source failure.
6. PCB tin-plated terminal contacts slow oxidation in high-humidity process cabinets to reduce long-term contact resistance creep.

Triconex 9761-210

Field Service Pitfalls: What Rookies Get Wrong

Parallel External Resistor Added In Parallel With Onboard 250Ω ShuntNew tech adds extra field-mounted 250Ω resistor in parallel with panel’s factory resistor; total equivalent resistance drops to 125Ω, full-scale 20mA input only reads 2.5VDC at controller, causing permanent analog low-scale drift.

• Field Rule: Remove all external loop resistors when wiring to 9761-210; onboard shunt is factory calibrated and non-negotiable for correct scaling.

Dual Redundant 24V Loop Power Jumped Together On Single DC SourceTechnician bridges two separate 24V auxiliary power terminals with jumper wire and feeds one UPS branch; single source fuse blow kills all 16 field transmitters on that termination panel simultaneously.

• Quick Fix: Route each of the two 24V power terminals to electrically separate, independently fused UPS distribution circuits per site SIS design specs.

Unshielded Field Wiring Run Alongside VFD & 480V Motor Power TraysInstallers route unshielded transmitter cables within 15cm of high-current three-phase power; induced AC ripple modulates DC loop current, triggering random noisy PV swings and sporadic high/low alarm trips on DCS.

• Field Rule: Separate analog field wiring minimum 30cm away from high voltage cabling; add ferrite core clamp at terminal entry for high EMI compressor house cabinets.
