Component Snapshot At-a-Glance

• Model: FBM207C
• Alt. P/N: RH917GY (factory alternate part marking)
• Product Series: Foxboro I/A Series Classic + Foxboro Evo DCS
• Hardware Type: Single-slot rack mounted 16-channel galvanically isolated dry contact digital input card
• Key Feature: Fixed 48VDC field sensing threshold with software configurable channel input debounce filtering
• Primary Field Use: Collect dry contact feedback from valve limit switches, MCC breaker auxiliary contacts and process equipment run status across continuous process plants

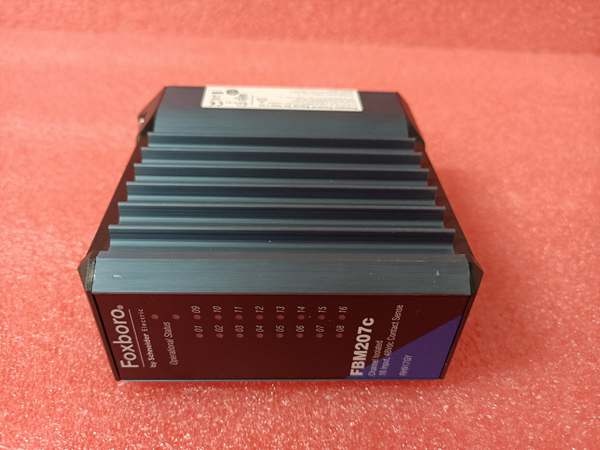

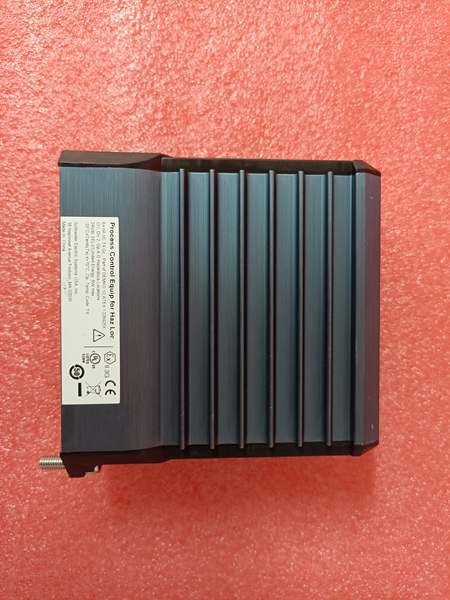

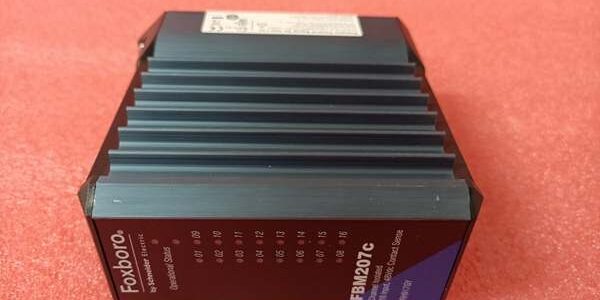

Foxboro FBM207C

Hard-Numbers: Technical Specifications

• Protocol Support: Redundant Nodebus HDLC backplane for rack controller communication
• Port Count: 16 independent isolated DI input channels per module slot
• Baud/Data Rate: Nodebus fixed 2Mbps cyclic backplane scan speed
• Operating Temperature: -20°C to +60°C operational; -40°C to +85°C storage transit range
• Isolation Rating: 600VAC galvanic isolation between field wiring and internal backplane logic per channel
• Power Draw: 3.2W nominal, powered entirely via rack baseplate 24VDC SELV feed
• Field Sensing Voltage: Rated 48VDC nominal, acceptable operating range 15VDC~60VDC dry contact input
• Input Draw: 1.4mA typical sink current per active closed contact channel
• Debounce Range: 0.1ms up to 255ms user programmable per individual channel
• Compatible Term Base: P0917MF original screw terminal assembly

The Real-World Problem It Solves

Older generic non-isolated DI cards let single field wire short or ground fault crash an entire 16-point input bank, triggering false unit interlock trips and unplanned process downtime. Unfiltered raw contact signals also pick up motor start electrical noise, bouncing digital status randomly in DCS HMI displays.

Where you’ll typically find it:

• Refinery CDU and FCC unit valve limit switch status racks with 48VDC solenoid cabinet wiring
• Coal-fired utility plant MCC room breaker auxiliary contact DCS status collection panels
• Natural gas compressor station ESD cabinet permissive dry contact input assemblies

This card’s per-channel isolation and adjustable debounce eliminates noise-triggered false status without cutting valid equipment fault signals from the field.

Hardware Architecture & Under-the-Hood Logic

carries an onboard dedicated ASIC processor to handle channel filtering and Nodebus data packaging, no shared processing with adjacent rack modules. Rear gold finger pins plug directly onto standard I/A redundant Nodebus baseplate to pull 24V rack power and exchange cyclic data with FCP280/CP60 host controllers.

1. Dry contact closure at field device pulls 48VDC across channel optocoupler input circuit to trigger internal logic high state.
2. Onboard per-channel programmable filter blocks transient electrical bounce per configured millisecond setpoint before latching digital status.
3. Local ASIC compiles all 16 channel bit data into standardized Nodebus payload packets every rack scan cycle.
4. Packaged status data transmits across redundant HDLC backplane to rack CPU for DCS database mapping and HMI visualization.

Foxboro FBM207CFoxboro FBM207C

Field Service Pitfalls: What Rookies Get Wrong

Mixing FBM207-series termination bases across variantsNew techs regularly mount P0916NG (FBM207B 24V base) onto , mismatched internal terminal pinout delivers incorrect voltage levels and creates random channel dropout.

• Field Rule: Only pair with P0917MF; never cross-install 24V-rated TA designed for FBM207B.

Improper cable routing next to high-amperage 480V power runsField crews bundle 48V DI signal cabling with three-phase motor feed wires; induced AC hum crosses into low-current input loops and causes intermittent false closed-contact indications.

• Quick Fix: Separate instrument wiring tray minimum 12cm away from all 380/480V power cabling runs inside control cabinets.

Hot-swapping powered module without software channel disableTechnicians pull live from energized baseplate to troubleshoot faults; exposed front header pins short during removal and blow internal optocoupler driver circuits.

• Field Rule: Disable all 16 associated input channels inside Foxboro Control Builder prior to removing powered module from rack slot.
