Component Snapshot At-a-Glance

• Model: FBM07 (commonly shortened FBM7; variants FBM07A / FBM07B)
• Alt. P/N: No direct factory alternate part; matching TA = P0700SA, field cable P/N C0162JD/C0162JE
• Product Series: Legacy Foxboro I/A Series Classic DCS (pre-Evo generation rack backplane)
• Hardware Type: Single slot rack-mount high-density 32-channel galvanically isolated dry contact digital input module
• Key Feature: Double the channel count of standard 16pt FBM207-series, shared per-group software debounce filtering
• Primary Field Use: Bulk collection of breaker auxiliary, valve limit switch, and equipment run dry-contact feedback to shrink control cabinet footprint.

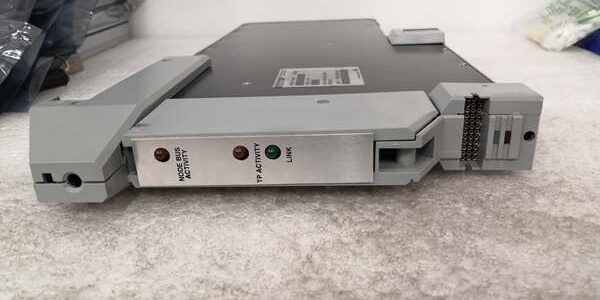

Foxboro DNBT

Hard-Numbers: Technical Specifications

• Protocol Support: Redundant Nodebus HDLC 2Mbps rack backplane communication to FCP/CP controllers
• Port Count: 32 independent DI input channels split into four isolated 8-channel banks
• Baud/Data Rate: Fixed Nodebus 2Mbps cyclic scan rate synced to host rack controller timing
• Operating Temperature: -20°C ~ +60°C operational; -40°C ~ +85°C non-operational storage
• Isolation Rating: 500VAC bank-to-backplane isolation; no per-channel opto isolation (bank grouped isolation only)
• Power Draw: 4.1W nominal draw, fully fed via rack baseplate 24VDC SELV supply
• Field Sensing Voltage: Fixed 48VDC wetting voltage for dry contact closure detection, 15~60VDC field tolerance range
• Input Draw: 1.35mA typical sink current per closed contact point
• Debounce Range: 1ms~250ms global bank-level programmable filter (no individual single-channel adjustment)
• Compatible Term Base: P0700SA dedicated screw termination assembly only

The Real-World Problem It Solves

Large process plants stacking dozens of 16-point FBM207 cards burn excess cabinet rack slots and inflate spare parts inventory costs. Standard low-density DI hardware forces overcrowded wiring troughs and extra spare module stocking for big MCC/ESD status racks.

Where you’ll typically find it:

• Fossil power station main switchgear room bulk breaker status DCS input racks
• Refinery FCC and CDU unit multi-valve bank limit switch consolidated I/O panels
• Pipeline compressor station ESD cabinet permissive dry contact centralized collection racks

This 32-point dense design cuts required rack slots nearly in half vs 16-channel modules while maintaining compliant 48V dry-contact field sensing.

Hardware Architecture & Under-the-Hood Logic

uses a single onboard gate array ASIC to manage all four 8-channel input banks; no dedicated per-channel microcontroller, all filtering and data packaging handled centrally before backplane transmission. Gold edge fingers plug directly onto standard I/A redundant Nodebus baseplate for rack power and cyclic data exchange.

1. Closed field dry contact pulls 48VDC across bank input optocoupler to register logic high at grouped input bank circuit.
2. Global bank filter timer suppresses contact bounce per configured millisecond setting for all 8 channels inside one bank simultaneously.
3. Central ASIC aggregates four separate 8-bit input banks into single 32-bit status data register per module scan cycle.
4. Compressed 32-bit payload transmits over redundant Nodebus backplane to rack FCP/CP controller for DCS tag mapping and HMI display refresh.

Foxboro DNBT

Field Service Pitfalls: What Rookies Get Wrong

New technicians mount P0917MF (FBM207C base) to ; mismatched pin assignment routes incorrect 24V instead of required 48V wetting voltage leading to total channel dead-out.

• Field Rule: Strictly pair exclusively with P0700SA termination base; zero cross-compatibility with any FBM207 TA lineup.

Ignoring bank-only filtering limitation for erratic single-channel noiseField engineers set global bank debounce to fix one noisy channel, inadvertently adding unnecessary delay across all eight associated points and slowing valid equipment fault reporting.

• Quick Fix: Isolate noisy field wire via separate terminal reroute instead of raising bank filter timing; relocate problematic cable away from 480V power bundles.

Live hot-plug without backplane rack partial power downCrews remove energized from baseplate mid-operation; uneven pin contact during extraction shorts internal ASIC supply and triggers persistent module FAULT light with permanent internal chip damage.

• Field Rule: Lock out associated rack segment power or disable entire module’s 32 input tags inside Control Builder before rack extraction.
