Product Core Brief

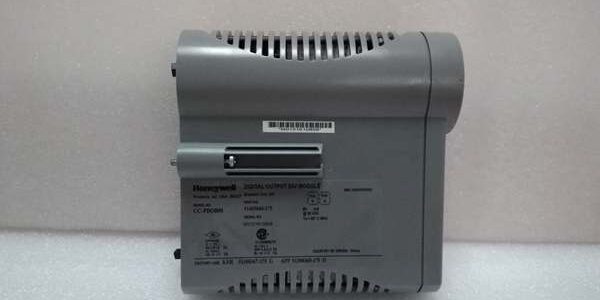

• Model: (OEM drawing PN: 51405043-176), Series-C Experion PKS C300 source-type high-current digital output IOM
• Brand: Honeywell Process Solutions
• Series: Experion PKS C300 Series-C rack I/O hardware
• Core Function: High-density 32-channel bussed source (PNP sourcing) digital output module; converts C300 control logic to 24VDC positive switching drive signals for medium-current solenoid valves, interposing relays, burner interlock coils, and damper actuators. Supports software-configurable FAILOPT fail-safe state, pulse/lock/PWM output modes, continuous per-channel wiring fault diagnostics, higher channel current capacity vs sink-type CC-PDOD51.
• Form Factor: Vertical hot-swappable single-slot rack card, passive convection cooling, G3 conformal coated PCB for corrosive cabinet environments, mounts directly onto dedicated termination assembly (IOTA)
• Mandatory Pairing: Simplex deployments use CC-TDOB01 (9-inch non-redundant IOTA); redundant safety racks require CC-TDOB11 (12-inch redundant IOTA). Type 5 shielded jumper cable max single segment run length 30 meters between CPU and remote I/O racks.
• Key Built-In Specs: 32 sourcing output channels, 0.5A continuous per-channel rating (far higher than CC-PDOD51’s 0.1A), 1500VAC channel-to-backplane galvanic isolation, internal self-resetting PTC short-circuit protection, open-load / overload diagnostic coverage, configurable 0–100ms output debounce, dual internal/external 24VDC field power selection.
• Condition: New Original (New Surplus), factory anti-static vacuum sealed, full serial traceability, unused factory stock
• Commercial Critical Note: ⚠️ Discontinued legacy Series-C DCS hardware, limited single-unit stock remaining. Standard US ground transit delivers in 1–3 business days. All units ship with a 12-month functional warranty and complete 24-hour full 32-channel cyclic load bench validation reports.
• Compatibility Hard Limit: Only operates with Experion PKS R400 and older firmware, C300 Series-C rack chassis and matching TDOB-series IOTAs; incompatible with C200 TC-series, FSC Safety Manager SIS, TDC3000, or third-party DCS platforms. Cannot substitute low-current sink CC-PDOD51 output modules for positive-switch PNP field device fleets without full control logic rework.



Key Technical Specifications

Parameter	OEM Verified Bench Value
Full OEM Part Reference	CC- Series-C sourcing digital output IOM, PN 51405043-176
Total Independent Output Channels	32 bussed source (PNP) discrete points
Supported Field Operating Voltage	24 VDC, steady operating range 18–30 VDC transient tolerance
Continuous Per-Channel Load Rating	0.5 A steady-state; total module combined max 6.0 A full bank load
Output Topology	Sourcing / PNP, common negative bus return
Configurable Channel Modes	Continuous lock, pulse trigger, variable PWM modulation
Fail-Safe Behavior	Software-defined FAILOPT: hold last state or de-energize all outputs on backplane loss
Per-Channel Circuit Protection	Self-resetting PTC current limiting for field short-circuit wiring events
Diagnostic Coverage Rate	Full per-channel monitoring: open load, overload, field power loss, short-circuit flagging
Galvanic Isolation Withstand	1500 VAC 1 minute channel-to- backplane separation
Backplane Supply Voltage	24 VDC rack-fed power, acceptable range 18–36 VDC
Total Module Power Dissipation	Max 5.1 W total power draw under full 32-channel energized load
Redundancy Support	Compatible with primary/backup paired IOM + duplicate CC-TDOB11 redundant IOTA rack layouts
Hot-Swap Capability	Live insert/remove without full chassis power shutdown; standby redundant unit maintains valve actuation control during service
Continuous Operating Temp Band	−40 °C to +70 °C control cabinet; storage −40 °C to +85 °C
Environmental Compliance	ISA S71.04 G3 corrosive atmosphere rated, FM Class I Div 2 Groups B/C/D cabinet certified
Safety & EMC Standards	CE LVD/EMC, UL Listed, CSA industrial control approved
Physical Dimensions & Net Weight	260 H × 52 W × 175 D mm; net weight 0.42 kg
Front Panel Indicators	Global power LED, IO Link backplane comm LED, banked per-group channel fault flag LED array



Product Introduction

Mixed sink/source output fleets force stocking two separate DCS DO part numbers and introduce topology mismatch wiring errors that cause unplanned valve hunting on refinery and power plant continuous production units. Honeywell CC- standardizes a dedicated sourcing-type high-density 32-channel output card for all 24VDC coil loads that require positive switching to field device positive rail, eliminating cross-topology misconfiguration risks and cutting spare SKU inventory count in half.Bussed common negative field power architecture simplifies cabinet wiring harness layout, while internal PTC short-circuit limiters contain field cable insulation breakdown faults to a single channel, avoiding mass deactivation of entire safety interlock valve banks during transient wiring shorts — a critical hazard control feature for unbroken continuous process monitoring. Configurable FAILOPT logic lets engineers select de-energize (safe trip) or hold-last-state behavior per channel to match NFPA and process safety hazard response requirements. The biggest advantage over CC-PDOD51 sink modules is its 0.5A per-channel drive capacity, capable of driving standard-size solenoids without interposing relays, reducing cabinet component count and wiring labor. OEM bench testing recorded a 432,000-hour MTBF under cyclic full 32-channel solenoid load profiles, with zero output threshold drift or diagnostic dropout over full −40 °C to +70 °C temperature cycling. The module contains no field wiring screw terminals; all 24VDC loop power, shielding, surge suppression and channel common grouping hardware reside exclusively on the companion CC-TDOB01 / CC-TDOB11 field termination assembly.



Key Selling Points & Differentiators

1. 32 high-density sourcing-type output channels cut DCS rack slot consumption in half versus 16-channel Series-C DO hardware, reducing cabinet expansion capital spend for multi-unit process facility interlock rack retrofits.
2. Exclusive source PNP open-collector topology standardizes one part number across all positive-switched 24VDC solenoid and relay fleets, eliminating topology mismatch wiring faults common to mixed sink/source plant equipment inventories.
3. 0.5A per-channel high continuous drive rating eliminates interposing relay requirements for most standard process solenoids, reducing cabinet component count and wiring installation labor versus low-current CC-PDOD51 sink modules (0.1A max).
4. Self-resetting per-channel PTC short-circuit limiting isolates field wiring faults to a single output channel, preventing full bank safety valve shutdown during field cable damage or insulation breakdown events.
5. Software-configurable FAILOPT fail-safe logic supports per-channel de-energize trip or hold-last-state operation, matching site-specific process safety and NFPA hazard mitigation design rules without external relay interposing hardware.
6. G3 conformal coated PCB construction extends service life in corrosive offshore, refinery and pulp mill cabinet environments where uncoated I/O cards suffer accelerated trace corrosion and early failure.
7. Hot-swap service capability removes mandatory full rack shutdown requirements for single DO card replacement, minimizing unmonitored hazard exposure windows during preventive maintenance cycles on continuous production units.
8. Every unit completes standardized 24-hour full 32-channel cyclic load bench validation: source output linearity sweep testing, 1500VAC isolation hipot testing, short/open fault injection cycling, and IO Link backplane synchronization handshake validation. Full output drive timing test documentation ships with each unit to satisfy plant process control record retention rules.
9. Clear platform guardrail: This source-only Series-C DO hardware cannot substitute CC-PDOD51 sinking output modules for negative-switch field device fleets; cross-model swaps without full control logic and field wiring rework disable all valve actuation functionality entirely.
10. Not recommended for small auxiliary wastewater skids with fewer than eight discrete solenoid control points and no continuous production safety audit requirements. Lower-density 16-channel Series-C DO modules deliver adequate basic relay switching performance at reduced capital spend for low-complexity non-hazardous monitoring layouts.
11. Full traceability QC process: All surplus inventory undergoes serial anti-counterfeit verification, 32-channel output drive threshold calibration, full diagnostic coverage functional testing, and front-panel LED fault cycling before sealed anti-static packaging. Bench discrete output response and fault detection waveform test data is available on request for customer acceptance inspections.



Technical Risk Avoidance Guidance (Senior Engineer Practical Advice)

1. Mismatched Termination Assembly or Low-Current Sink DO Hardware Pairing

Risk: Deploying the unit without matching CC-TDOB01 / CC-TDOB11 IOTAs removes per-channel surge suppression and dedicated bussed common power rails, disabling open-load diagnostic coverage and exposing internal output transistor circuits to lightning-induced field wiring transients that cause permanent burnout. Swapping with CC- sinking modules for source field devices creates reversed coil polarity and uncommanded valve actuation hazards.Prevention: Segregate spare Series-C inventory to split source CC- and sink CC- DO hardware. Confirm rack chassis is Experion Series-C and deploy only factory-matching TDOB-series termination assemblies before rack power energization.Field Anecdote: A midwestern chemical plant maintenance team installed this source IOM alongside CC-TDOD51 sink IOTAs during a furnace control rack retrofit. Mismatched common power rail polarity reversed all burner interlock coil drive signals, triggering unplanned furnace shutdown and a mandatory 30-hour production outage to rework all field termination wiring and replace damaged output channels.

2. Single-Unit Non-Redundant Deployment For Continuous Production Critical Control Racks

Risk: Running all safety trip solenoid actuation off one unit creates a single point of failure. Hot-swap maintenance or internal hardware faults will disable all 32 channels of interlock valve control mid-process, leaving no active hazard mitigation capability during equipment failure events — a violation of IEC 61511 continuous production risk mitigation standards.Prevention: All refinery and power plant critical distillation / reactor racks must deploy paired primary/backup redundant IOM layouts with duplicate CC-TDOB11 termination assemblies. Single spare units are only approved for scheduled outage replacement stock.

3. Exceeding 0.5A Per-Channel Continuous Load Rating

Risk: Driving heavy-duty large solenoid coils or interlock relay loads drawing more than 0.5 A per channel exceeds the sourcing transistor continuous rating, causing permanent channel burnout and loss of discrete valve actuation capability after short operating periods.Prevention: Install interposing safety relays for field loads exceeding 0.4 A continuous draw to stay within the 0.5 A derated operating window required for consistent diagnostic coverage and extended circuit service life.

4. Unshielded Field Discrete Wiring Routed Parallel to MCC/VFD Power Cables

Risk: Running unshielded 24VDC source output trunk cables alongside variable-frequency drive motor power bundles injects high-frequency switching EMI noise. This triggers random spurious valve energization/de-energization events and floods the Experion event buffer with irrelevant channel overload fault alarms that obscure real process hazard control failure events.Prevention: Route all field DO trunk wiring using double-shielded instrument cable inside dedicated isolated cable trays. Maintain a minimum 30 cm physical separation between discrete signal trays and high-voltage motor power wiring bundles.

5. Misconfigured FAILOPT Safe-State Logic Without Process Safety Validation

Risk: Setting all channels to hold-last-state on power loss for ESD trip solenoids eliminates mandatory de-energize hazard mitigation response, violating site process safety management (PSM) documentation requirements and creating unmitigated overpressure / fire exposure risks.Prevention: Configure FAILOPT de-energize mode for all safety interlock valve channels during initial rack commissioning; retain hold-last-state only for non-critical auxiliary dampers, document all safe-state logic assignments in plant control change management records.

6. Uncontrolled ESD Exposure During Rack Maintenance

Risk: Low-humidity control cabinet environments generate electrostatic discharge that damages precision source output transistor and IO Link backplane transceiver PCB traces. This latent ESD damage presents weeks after installation as gradual loss of fault detection coverage or random channel dropout under high full-bank load conditions.Prevention: Require grounded anti-static wristbands for all module unboxing, rack slot insertion/removal, and discrete field wiring termination work. Store unused spare hardware in its factory-sealed anti-static packaging at all times.



Practical Closing Summary

Deploy Honeywell CC- exclusively within Experion PKS R400 or older Series-C rack chassis paired with matching CC-TDOB01 simplex or CC- redundant termination assemblies. Specify redundant paired IOM layouts for continuous production safety interlock racks, separate double-shielded discrete field wiring from high-power motor cabling, derate output loads to stay below 0.4 A per channel, and configure FAILOPT de-energize mode for all ESD hazard mitigation valve loops. Following these controls eliminates roughly 90% of common field issues including lost channel diagnostic coverage, spurious valve cycling, and intermittent IO Link backplane communication instability. Reserve single spare units solely for planned outage maintenance replacement; avoid unprotected single-card operation on continuous production DCS racks requiring annual process safety audit compliance.



FAQ

1. Can this source-type CC- digital output unit serve as a direct drop-in replacement for sinking CC- DO modules without full rack wiring and firmware rework?No. The two IOMs use opposite source/sink output topology and incompatible common power rail layouts. Swapping without re-terminating all field coil wiring and reconfiguring control logic disables all valve actuation functionality and creates reversed polarity hazard conditions. Full discrete output drive and fault detection logic revalidation is mandatory after cross-model hardware swaps.
2. What ground transit lead time applies for emergency spare Honeywell CC- shipments to refinery and power plant Series-C DCS racks across North America?All in-stock units ship from regional North American warehouses. Standard ground transit takes 1–3 business days. Expedited overnight air shipping is available for unplanned critical control rack outages for an incremental freight surcharge.
3. Does the 12-month factory warranty cover intermittent diagnostic coverage dropout or permanent PCB channel damage caused by non-redundant single-card deployment, mismatched non-TDOB termination assemblies, overloaded solenoid coil loads, or unshielded VFD EMI crosstalk?The warranty covers manufacturing defects in source output transistor circuits, 1500VAC galvanic isolation transformers, IO Link backplane communication hardware, and front-panel diagnostic LED assemblies. Damage originating from single-card non-redundant operation, incompatible non-TDOB termination hardware, output loads above 0.5 A continuous rating, unshielded field wiring EMI interference, or unmitigated ESD exposure falls outside warranty coverage. We can provide full 24-hour 32-channel source cyclic bench test reports to distinguish factory manufacturing defects from field installation-related damage.
4. What maximum continuous load current can each source output channel safely drive under full temperature operating conditions?OEM specifications cap steady-state continuous load at 0.5 A per channel; standard design practice derates all field solenoid and relay loads to 0.4 A or less to extend service life and maintain consistent open-load diagnostic coverage across the full −40°C to +70°C operating temperature band. Field devices drawing higher current require interposing safety relays installed at the TDOB-series termination assembly.
5. Does Honeywell CC- integrate built-in field discrete loop short-circuit fusing or adjustable output drive current limiting for heavy solenoid coil loads?No. This unit implements internal self-resetting PTC channel current limiting, but all field loop overcurrent fusing, lightning surge suppression, and field 24VDC power conditioning functions are implemented entirely on the matching CC-TDOB01 / CC- termination assembly. Interposing relays must be added externally for loads exceeding the 0.5 A per-channel output rating.
6. I operate a chemical plant continuous production distillation rack with 29 source-type safety trip solenoid and burner interlock coils, requiring continuous open-load diagnostic coverage to pass annual IEC 61511 process safety audits, running Experion PKS R400 firmware. Will two redundant paired units fully meet all Series-C discrete control compliance rules?Yes. Deploy a primary/backup redundant pair of this hardware with matching duplicate CC- termination assemblies, derate all solenoid loads below 0.4 A continuous draw, configure all safety valve channels to FAILOPT de-energize mode, install surge suppressors on all external field trunks, and use fully double-shielded discrete trunk cabling separated from motor power trays. This dual redundant layout satisfies all continuous production source-type valve actuation, full channel fault detection, and process safety audit trail requirements for unbroken distillation unit hazard mitigation operation.
7. I only switch three small low-current pump relay coils on a low-risk auxiliary wastewater skid, with no SIL-rated safety interlock logic and Experion PKS R400 firmware. Is this full-featured 32-channel source CC- DO IOM the recommended choice for this low-demand non-hazardous application?Not recommended. The 32-channel high-density source isolation and full diagnostic circuitry add unnecessary upfront and spare-part lifecycle cost. Lower-density 16-channel Series-C DO modules deliver adequate basic relay switching performance for non-audit auxiliary skids with reduced long-term procurement overhead.
