Product Core Brief

• Model: 8273-140
• Brand: WOODWARD
• Series: 2301D Digital Speed Control
• Core Function: Microprocessor-based digital speed control and load sharing for diesel or gas engine-driven generator sets.
• Product Type: 2301D Speed Controller / Digital Engine Governor Module
• Key Specs: 24 V DC supply | Configurable I/O (actuator output, analog I/O) | RS-232/RS-422 communication | Metal chassis mounting | 900–3600 rpm speed range
• Condition: New Original / New Surplus (verify per lot)

Key Technical Specifications

• Controller type: 2301D-series digital microprocessor speed controller.
• Application: Diesel and gas engine-driven generator sets; pump and compressor drives requiring speed/load control.
• Speed range: 900–3600 rpm.
• Power supply: 24 V DC.
• Control modes: Isochronous speed control, droop mode, and load sharing.
• I/O: Configurable actuator output channel, analog inputs, and analog outputs.
• Communication: RS-232 and RS-422 ports for configuration and system integration.
• Mounting: Metal baseplate/chassis-mounted module assembly.
• Operating temperature: -40 °C to +85 °C per some distributor references; confirm against nameplate.
• Construction: Printed circuit board (PCB) housed in a protective metal chassis.

Note: Some third-party listings describe 8273-140 as a turbine governor or hydraulic actuator, but authoritative references consistently identify it as a 2301D speed control module for engine applications.



Product Introduction (No Fluff)

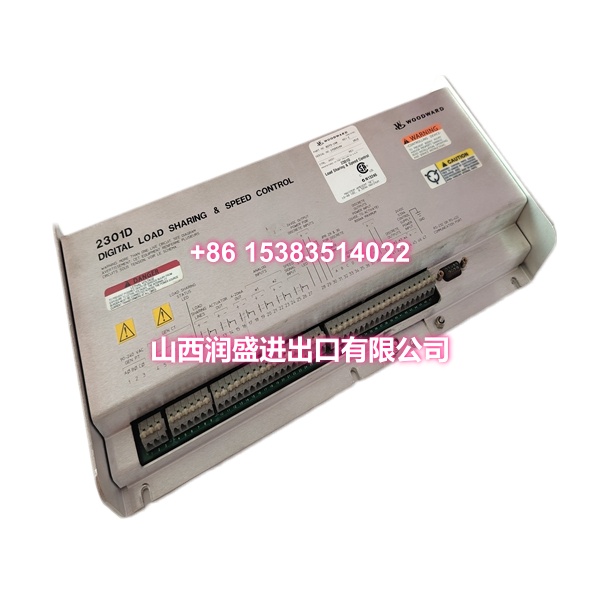

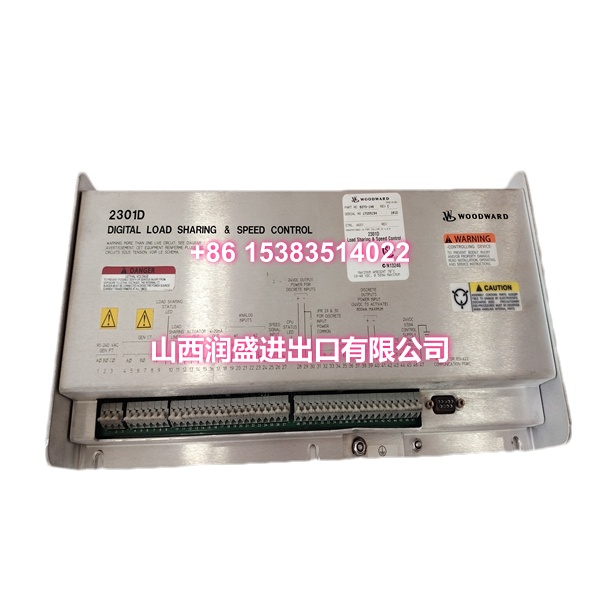

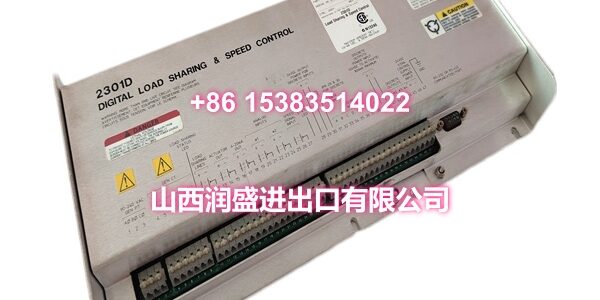

The WOODWARD 8273-140 is a 2301D-series digital speed controller designed for diesel and gas engine-driven generator sets. It provides microprocessor-based speed regulation, load sharing, and configurable I/O in a rugged metal chassis suitable for industrial environments.

For system integrators and plant engineers, this module offers a proven replacement path for aging 2301D installations. Its 24 V DC supply, RS-232/RS-422 communication, and configurable analog/actuator I/O make it suitable for standalone engine control or integration into a broader power management system. Unlike the 505/505E turbine controllers, the 2301D family targets reciprocating engine applications rather than steam or gas turbines.



QA & Testing SOP (Dynamic & Transparent)

1. Visual & counterfeit inspection — Verify part number 8273-140, revision markings, PCB condition, connector integrity, and signs of rework, corrosion, or heat damage.
2. ESD-safe handling — Store and ship in anti-static packaging; handle with grounded wrist straps and ESD mats.
3. Power-up check — Apply rated 24 V DC, confirm module boot and status indicators.
4. Communication verification — Confirm RS-232/RS-422 interface responds and configuration software can connect where applicable.
5. I/O sanity check — Where test equipment permits, verify actuator output presence and analog I/O response. Full engine-loop validation is completed during site commissioning.

Note: Bench testing confirms hardware health. Final speed/load tuning requires the engine, actuator, and speed pickup.

Installation Pitfalls & Guide (Engineer to Engineer)

❗ Confirm 24 V DC supply before energizing. The 8273-140 is a 24 V DC module. Do not apply 110 V AC or 220 V AC.

❗ Do not hot-swap during active engine operation. Removing a speed controller while the engine is running can cause loss of speed control and unsafe behavior.

❗ Verify actuator compatibility. The actuator output must match the existing fuel actuator’s range, polarity, and fail-safe response.

❗ Grounding and noise discipline matter. Route speed pickup, actuator, and analog signal cables away from VFD outputs, contactor coils, and high-current feeds.

❗ This is not a 505/505E turbine controller. The 2301D family targets engine applications. Substituting it for a turbine governor, or vice versa, will not work.

Replacement steps:

1. Pre-install: Lock out energy sources, confirm the engine is stopped/secured, and record existing configuration parameters.
2. Removal: Label all wiring, photograph terminal assignments, disconnect I/O and communications, then remove the module.
3. Install: Seat the replacement securely, reconnect I/O with correct polarity, and verify grounding.
4. Commissioning: Apply 24 V DC power, confirm communication and diagnostics, verify I/O readings, then recommission under controlled conditions.



Technical FAQ

Is 8273-140 a turbine controller like the 505E? No. It is a 2301D-series speed controller for diesel and gas engine-driven generator sets, not a steam/gas turbine governor.

What voltage does it require? 24 V DC. Always confirm against the actual nameplate.

Can it do load sharing? Yes. The 2301D family supports isochronous, droop, and load-sharing modes.

Does it support Modbus? Some 2301D variants include Modbus over RS-232/RS-422, but this is not confirmed specifically for the 8273-140 suffix. Confirm per unit and firmware.

Can I replace it without reprogramming? Not automatically. Speed setpoints, actuator limits, droop settings, and I/O assignments must be verified. Treat replacement as a recommissioning event.

What speed range does it support? 900–3600 rpm per available references. Confirm against the application requirements and nameplate.
