Product Core Brief

• Model: 8200-1302
• Brand: WOODWARD
• Series: 505D Digital Turbine Governor
• Core Function: Digital speed, load, and sequencing control for steam turbines with single or split-range actuators.
• Product Type: Digital Turbine Governor / Microprocessor Controller with Integrated HMI
• Key Specs: LVDC 18–32 V | 8.4-inch LCD HMI | Redundant speed inputs | 8 analog inputs | 20 contact inputs | 2 × 4–20 mA outputs | 8 Form-C relay outputs | Modbus / RS-485 / Ethernet | Marine/ATEX compliance
• Condition: New Original / New Surplus (verify per lot)

Key Technical Specifications

• Controller type: 505D-series digital microprocessor turbine governor
• Application: Steam turbines, turbo-generators, and industrial rotating equipment with single or dual staged/split-range actuators.
• Power supply: LVDC 18–32 V (some references list 18–36 V DC); confirm against nameplate before energizing.
• Speed inputs: 2 redundant speed inputs; accepts magnetic pickup, eddy-current, or proximity probes.
• Analog inputs: 8 configurable analog inputs (commonly 4–20 mA).
• Contact/discrete inputs: 20 contact inputs; first four typically default to trip, raise setpoint, reset, and lower setpoint.
• Control outputs: 2 × 4–20 mA control outputs.
• Relay outputs: 8 Form-C relay outputs.

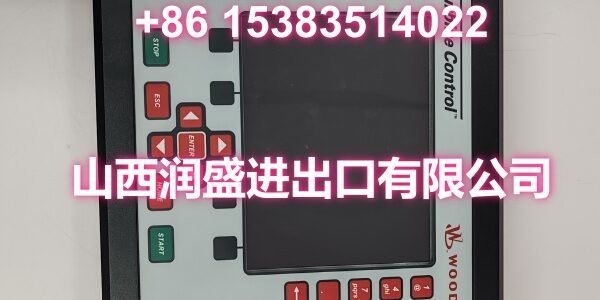

• Display: 8.4-inch LCD operator interface with navigation keys, softkeys, and status LEDs.
• Communication: Modbus, RS-485, and Ethernet interfaces reported in available references; confirm exact protocol support per unit.
• Control modes: Speed control, load control, configuration, operation, and calibration modes.
• Speed accuracy: ±0.05% reported in some distributor references; verify against official Woodward documentation.
• Response time: <10 ms reported in some references; confirm per application.
• Protection/features: Critical-speed avoidance, trip/alarm event logging with RTC timestamp, overspeed peak indication, zero-speed detection, remote droop, frequency deadband.
• Operating temperature: -30 °C to +70 °C per several references; some listings state -40 °C to +85 °C. Confirm against nameplate.
• Environmental compliance: Marine/ATEX-compliant variant; IACS UR E10, ATEX, IP-54, and pollution degree 3 reported in some references.

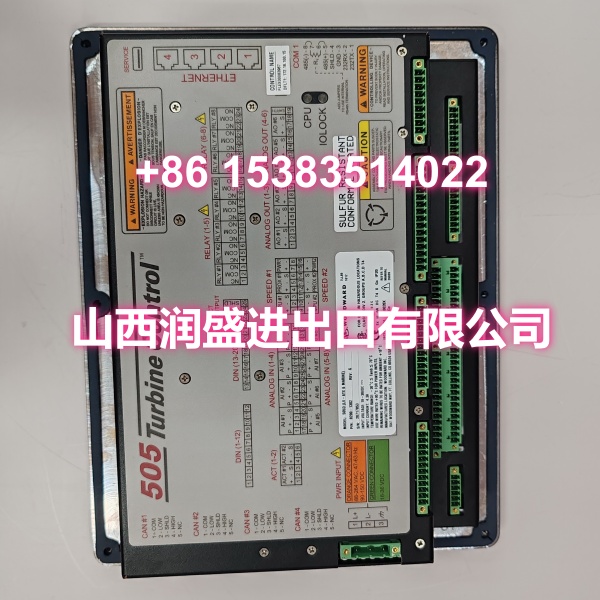

• Mounting: Panel-mount controller with integrated HMI.



Product Introduction (No Fluff)

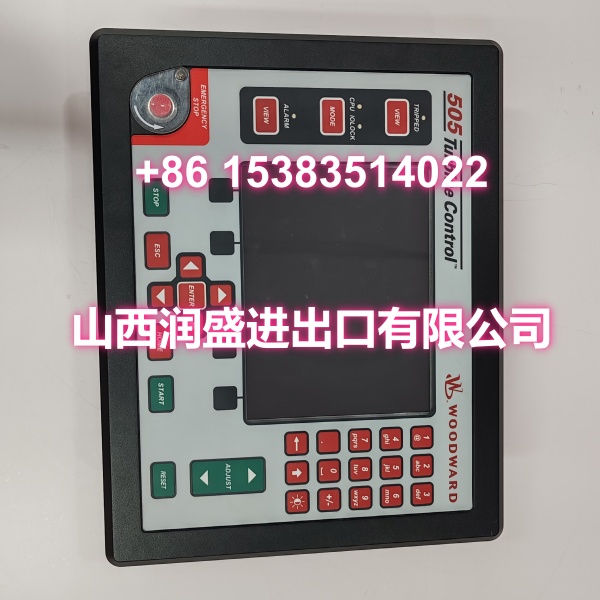

The WOODWARD 8200-1302 is a 505D-series digital turbine governor designed to control steam turbines with single or split-range actuators. It combines speed and load regulation, start/stop sequencing, protection logic, and an integrated 8.4-inch LCD operator interface in one panel-mounted controller.

For system integrators and plant engineers, the 8200-1302 provides a configurable replacement path for legacy 505 governors. Its redundant speed inputs, multiple analog and discrete I/O points, and Modbus/Ethernet connectivity make it suitable for standalone turbine control or integration into a plant DCS. This part number is specifically associated with LVDC supply and Marine/ATEX compliance, so it should be verified against the installed unit before substitution.



QA & Testing SOP (Dynamic & Transparent)

1. Visual & counterfeit inspection — Verify part number 8200-1302, revision, serial number, connector condition, and signs of rework, corrosion, or heat damage.
2. ESD-safe handling — Store and ship in anti-static packaging; handle with grounded wrist straps and ESD mats.
3. Nameplate verification — Confirm LVDC 18–32 V rating, environmental markings, and revision before installation.
4. Power-up check — Apply rated LVDC supply, confirm display initialization, LED status, and access to configuration menus.
5. I/O sanity check — Where test equipment permits, verify speed input presence, analog input readings, relay status, and 4–20 mA output readiness. Full turbine-loop validation is completed during site commissioning.

Note: Bench testing confirms hardware health. Final speed/load tuning requires the actuator, speed pickup, and process instrumentation.



Installation Pitfalls & Guide (Engineer to Engineer)

❗ Confirm LVDC supply before energizing. The 8200-1302 is listed as an LVDC 18–32 V unit. Do not apply 110 V AC or 220 V AC without verified nameplate confirmation.

❗ Do not hot-swap during active turbine operation. Removing or replacing a governor while the turbine is online can cause loss of speed/load control and unsafe valve behavior.

❗ Verify it is the correct 505D variant. Within the 8200-1300/1301/1302 family, -1302 is the Marine/ATEX LVDC variant. Substituting the wrong variant may create compliance or wiring issues.

❗ Check actuator compatibility and fail-safe behavior. The 4–20 mA control outputs must match the existing actuator range, polarity, and trip response.

❗ Grounding and noise discipline matter. Route speed pickup, actuator, and analog signal cables away from VFD outputs, contactor coils, and high-current feeds.

Replacement steps:

1. Pre-install: Lock out energy sources, confirm the turbine is tripped/secured, and record existing parameters.
2. Removal: Label all wiring, photograph terminal assignments, disconnect I/O and communications, then remove the controller.
3. Install: Seat the replacement securely, reconnect I/O with correct polarity, and verify grounding.
4. Commissioning: Apply LVDC power, confirm display and diagnostics, verify I/O readings, then recommission under controlled conditions.



Technical FAQ

Is 8200-1302 a 505 or 505E controller? It is listed as a 505D-series digital turbine governor. It belongs to the broader Woodward 505 family but is not identical to the older 505 or 505E front-panel controllers.

What voltage does it require? Available references indicate LVDC 18–32 V, with some listings showing 18–36 V DC. Always confirm against the actual nameplate.

Can it replace older 505 units? It is described as a replacement path for legacy 505 governors such as 9907-162 and 9907-164, but configuration, I/O mapping, and actuator compatibility must be verified before substitution.

Does it support Modbus or Ethernet? Yes. Modbus, RS-485, and Ethernet interfaces are reported in available references, but exact protocol support should be confirmed per unit and firmware.

Can I replace it without reprogramming? Not automatically. Speed setpoints, actuator limits, critical-speed bands, trip logic, and I/O assignments must be verified. Treat replacement as a recommissioning event.

Is it suitable for marine or hazardous areas? The 8200-1302 is associated with Marine/ATEX compliance in several references, but certification markings on the actual nameplate must be confirmed before use in regulated environments.
