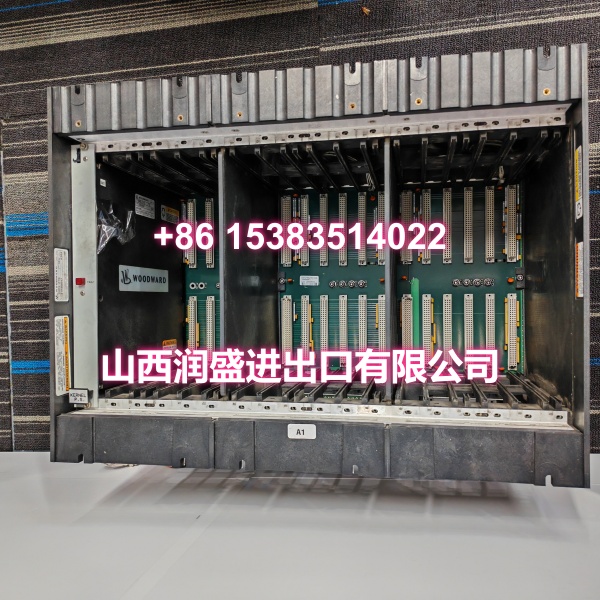

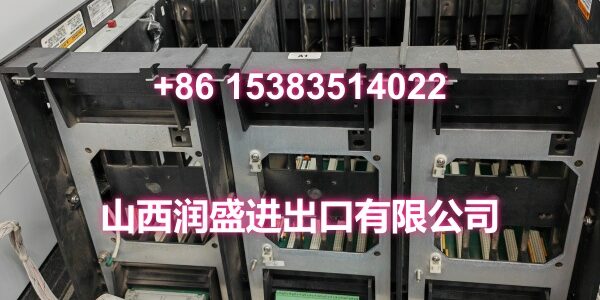

Product Core Brief
- Model: 5453-203
- Brand: WOODWARD
- Series: 505E Series Microprocessor Control Unit
- Core Function: Digital turbine controller for speed, load, and start/stop control of industrial steam and gas turbines.
- Product Type: Turbine Control Module / Digital Governor Controller
- Key Specs: 50 MHz processor | 2×24-char text display | RS-232 & Ethernet (Modbus) | 16 contact inputs + 6× 4–20 mA analog inputs | 0–10 V DC analog output
- Condition: New Original / New Surplus
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Part Number | 5453-203 |
| Manufacturer | WOODWARD, Inc. (Fort Collins, CO, USA) |
| Product Type | Digital turbine governor / microprocessor control module |
| Processor Speed | 50 MHz |
| Program / Data Memory | 53 MB each |
| Display | 2-line × 24-character text display, menu-driven |
| Contact Inputs | 16 (4 dedicated + 12 programmable) |
| Analog Inputs | 6 × 4–20 mA programmable |
| Analog Output | 0–10 V DC for actuator/valve drive |
| Communication | RS-232, Ethernet; supports Modbus |
| Operating Temperature | 0 °C to 60 °C |
| Humidity | Up to 60% non-condensing |
| Mounting | Panel / control-room mounting, modular construction |
| Approx. Weight | 6.5 kg |
Product Introduction (No Fluff)
This is a WOODWARD 505E-series microprocessor control module used for industrial turbine speed and load regulation. It manages start, stop, acceleration, deceleration, and valve positioning through single or dual staged actuators, typically on steam turbines, turbine generators, and turbo-expanders.
From an integration standpoint, its value is straightforward: it gives you deterministic turbine control with local HMI visibility, programmable analog/digital I/O, and Modbus connectivity for DCS or SCADA handoff. That makes it easier to replace aging governor hardware without redesigning the entire control loop.
QA & Testing SOP (Dynamic & Transparent)
For surplus or replacement turbine controllers, we treat firmware integrity and I/O calibration as the first checkpoints.
- Visual & anti-counterfeit inspection — Verify part number, revision label, CAGE/serial markings, connector condition, and PCB finish. Any mismatched labels or reworked solder joints trigger a hold.
- Power-up & firmware check — Apply rated supply, confirm clean boot, menu navigation, and stored configuration access. Log firmware version and error history before proceeding.
- I/O verification — Inject 4–20 mA signals on analog inputs and confirm reading stability. Validate contact input status changes. Check 0–10 V DC output response under simulated load.
- Communication test — Bring up RS-232/Ethernet and confirm Modbus register reads. Verify address mapping matches the site configuration.
- Packaging — After testing, the unit is cleared, ESD-bagged, and packed with anti-static protection and impact-resistant boxing.
Tools typically used: calibrated 4–20 mA simulator, Fluke multimeter, Ethernet/Modbus test client, and an OEM-compatible test rack where available.
Installation Pitfalls & Guide (Engineer to Engineer)
❗ Do not assume direct hot-swap compatibility. Even within the 505E family, firmware, I/O maps, and actuator scaling can differ. Upload and back up the existing configuration before removing the old module.
❗ Check actuator output range. This controller uses a 0–10 V DC analog output. If your existing actuator expects 4–20 mA, you will need a signal converter or a different output module.
❗ Validate grounding and shielding. Turbine halls are electrically noisy. Unshielded analog wiring or poor panel grounding can create false speed or load readings.
❗ Confirm Modbus mapping before DCS tie-in. Register addresses and data types rarely match one-to-one across sites. Test with a laptop first, not the live DCS.
Replacement steps:
- Back up existing parameters, I/O assignments, and Modbus maps.
- Isolate power, label all wiring, and remove the old controller.
- Install the replacement, verify terminal assignments, and ground shields properly.
- Power up, restore configuration, test I/O, then commission speed/load control under supervised run-up.
Technical FAQ
Can you offer price flexibility for bulk or repeat orders?
Yes. Pricing depends on condition, revision, lead time, and whether you need configuration support or test documentation. Surplus stock is usually more flexible than new original units.
What warranty do you provide?
Warranty terms depend on condition and stock source. New original and new surplus units typically carry different coverage. We confirm warranty length before shipment so your maintenance team has clear expectations.
Is this directly compatible with my existing 505E system?
Often, but not automatically. The 5453-203 belongs to the 505E microprocessor control family, yet firmware revision, I/O configuration, and actuator scaling must match your application. Always compare the existing module’s configuration before replacement.
Can this replace older Woodward turbine controllers?
It can be a viable replacement in many 505E-based applications, provided the I/O count, output type, and communication requirements align. For mechanical-hydraulic governor retrofits, additional actuator and wiring changes are usually required.
Is this model obsolete?
The 505E platform remains widely referenced in industrial turbine service, but individual part availability varies by revision and region. If you are planning a long-term spares strategy, we recommend securing tested units and archiving configuration files now.
