Product Quick-Glance Brief
- Model: 3BSE011180R1 / PM511V08
- OEM: ABB
- Category: Advant OCS / Advant Master Processor Module
- Core Function: Central processor module for ABB Advant OCS and Advant Master distributed control systems, executing control logic and managing system communication.
- Key Specs: 8 MB dynamic RAM with ECC | PCMCIA flash memory slot | SIMM memory module support
Technical Overview & Field Application

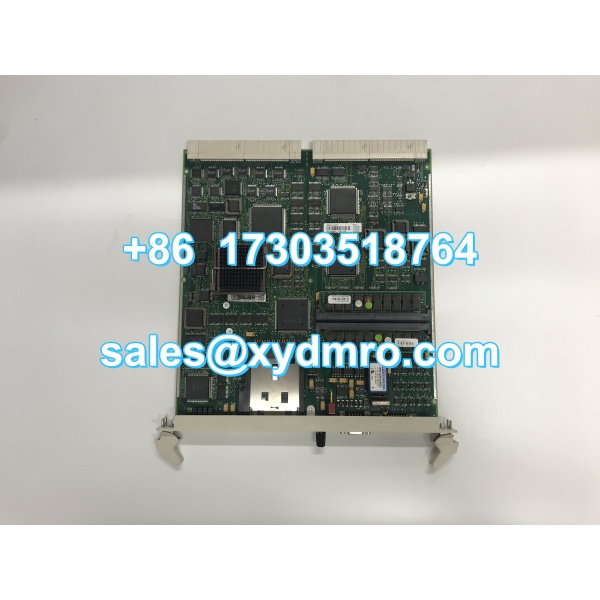

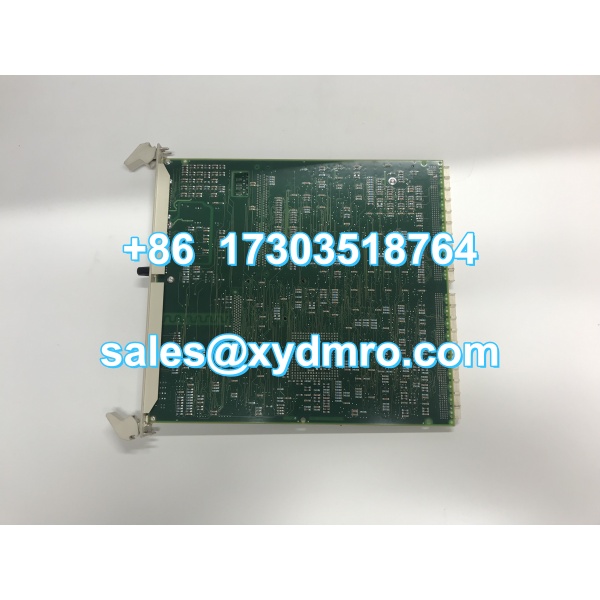

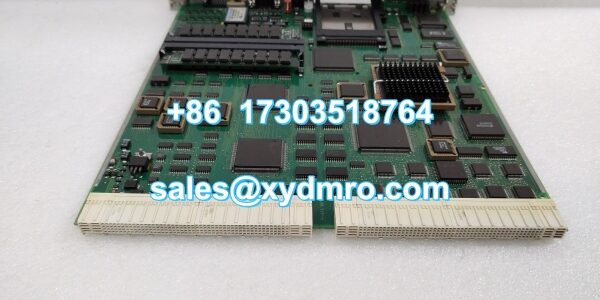

Replacing a processor in a legacy DCS is never a routine swap. The ABB PM511V08 3BSE011180R1 is a processor module for ABB Advant OCS and Advant Master systems, not a generic PLC or analog I/O card. Misclassification is common in surplus listings, so the nameplate and system context matter.
This module provides the central processing function for the rack, executing control programs, managing I/O scans, and coordinating communication across the Advant platform. It includes 8 MB of dynamic RAM with ECC for data integrity and a PCMCIA slot for flash memory configuration or program storage. A SIMM memory module (3BSC120004R2) is associated with the unit for system memory expansion.
Typical deployments include power generation, oil and gas, water treatment, food processing, and manufacturing process control where Advant OCS or Advant Master remains in service. Because this is a legacy platform, firmware revision, memory configuration, and application backup should be confirmed before any replacement.
Essential Specifications
| Parameter | Specification |
|---|---|
| Product identification | ABB PM511V08 / 3BSE011180R1 |
| Product type | Processor / CPU module |
| System platform | ABB Advant OCS / Advant Master |
| Memory | 8 MB dynamic RAM with ECC |
| Memory expansion | PCMCIA slot for flash memory card |
| Associated memory module | SIMM 3BSC120004R2 |
| Replacement reference | EXC3BSE011180R1 |
| Mounting | Rack-mounted processor module |
| Typical applications | Process control, power generation, oil and gas, water treatment |
| Verification required | Firmware revision, memory configuration, application backup, host rack type |
Quality Assurance Protocol
Each unit is visually inspected for burnt components, swollen capacitors, damaged PCMCIA and SIMM connectors, and corrosion on backplane contacts or terminal surfaces. The and 3BSE011180R1 markings are verified to prevent substitution with other PM5xx processors or unrelated I/O modules.
Power-up checks confirm:
- Processor initialization and status indicator behavior
- Memory recognition and self-diagnostic response
- PCMCIA slot readiness where accessible
- Backplane contact integrity and connector seating
Final packing uses anti-static bags, foam support, and rigid cartons to protect memory slots and connectors during shipment.
Engineer’s Installation / Replacement Notes
- Confirm the platform first. PM511V08 belongs to Advant OCS / Advant Master, not AC 500, AC 800M, or a generic analog communication module.
- Back up the application and parameters. Processor replacement without a verified backup can leave the rack running but unconfigured.
- Match memory configuration. Verify the SIMM module, PCMCIA card, and firmware revision before installing the replacement.
- Check rack addressing and bus settings. Wrong slot assignment or communication parameters can prevent the processor from taking control.
- Treat it as a controlled switchover. If redundancy or hot-standby is involved, follow the OEM procedure rather than swapping under load.
