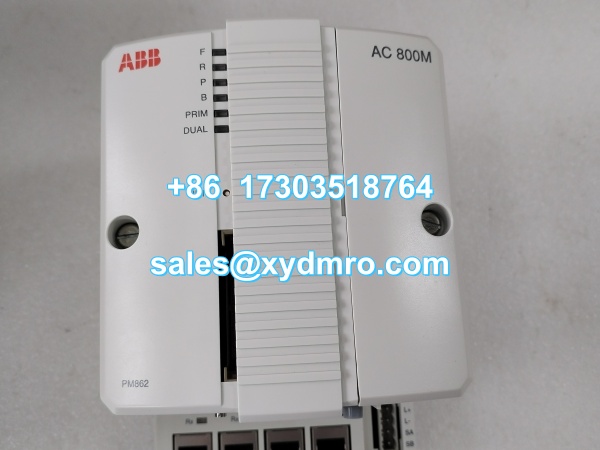

Product Quick-Glance Brief
- Model: PM862K01 (3BSE076940R1)
- OEM: ABB
- Category: AC 800M Processor / CPU Module
- Core Function: Central processing unit for ABB AC 800M automation systems, supporting standalone and redundant configurations.
- Key Specs: MPC866 67 MHz processor | 32 MB total memory with 23.5 MB application RAM | Dual RJ45 Ethernet ports with redundancy support
Technical Overview & Field Application
When an AC 800M rack loses its primary CPU, the whole process hangs until the controller comes back online. The ABB PM862K01, order code 3BSE076940R1, is the processor module that keeps AC 800M systems running in power, oil and gas, chemical, water treatment, and manufacturing applications.
This controller runs on an MPC866 processor at 67 MHz, executing 1,000 Boolean operations in approximately 0.18 ms with a minimum application cycle time of 1 ms. It carries 32 MB total memory, of which about 23.5 MB is available for applications, and includes a CompactFlash slot for firmware storage and application recovery after a power loss. The baseplate provides two RJ45 Ethernet ports for control network connectivity and redundancy, plus two serial ports — COM3 as an RS-232C interface and COM4 as an isolated service port.
The unit supports CPU, CEX-bus, communication interface, and S800 I/O redundancy, making it suitable for processes where uptime is critical. It runs on 24 VDC and is compatible with System 800xA and Compact Control Builder environments. It is not a PM864, PM866, or Advant-series processor, so platform confirmation is essential before replacement.
Essential Specifications
| Parameter | Specification |
|---|---|
| Order Code | 3BSE076940R1 |
| Functional ID | |
| Product Type | AC 800M Processor / CPU Module |
| OEM | ABB |
| Processor | MPC866, 67 MHz |
| Total Memory | 32 MB |
| Application RAM | ~23.5 MB |
| Firmware Storage | 4 MB Flash |
| Ethernet Ports | 2 × RJ45, 10 Mbit/s, redundancy capable |
| Serial Ports | COM3 RS-232C, COM4 isolated service port |
| Power Supply | 24 VDC (19.2–30 VDC) |
| Power Consumption | Typical 5.1 W, max 8.6 W |
| I/O Capacity | Up to 96 modules single, 84 modules redundant |
| Redundancy Support | CPU, CEX-bus, communication, S800 I/O |
| Mounting | DIN rail via TP830 baseplate |
| Protection | IP20 |
| Software | System 800xA, Compact Control Builder |
| Condition | New Original / New Surplus |
Quality Assurance Protocol

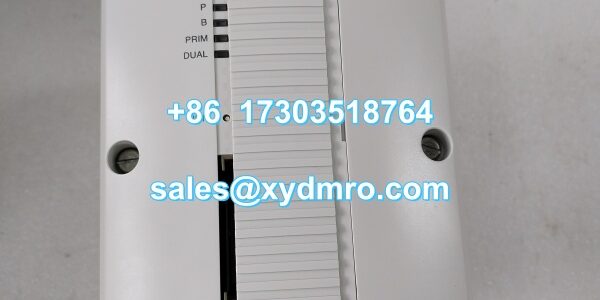

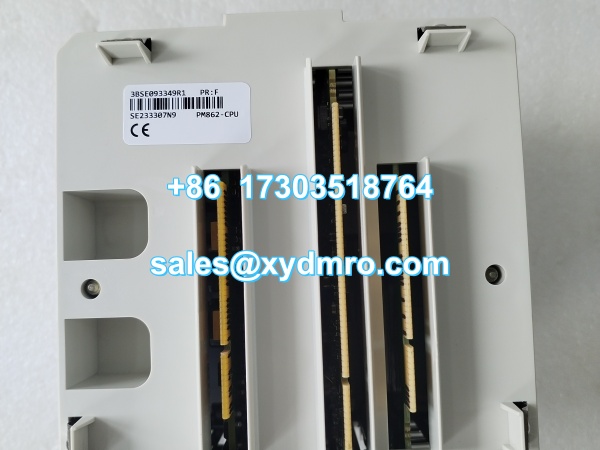

Each unit is inspected before release. The housing, DIN-rail locking mechanism, RJ45 ports, serial connectors, CompactFlash slot, and LED indicators are checked for physical damage, corrosion, or bent pins. The order code 3BSE076940R1 and functional ID are verified against the original nameplate.
The module then undergoes a power-on self-test to confirm boot status, LED behavior, and controller recognition. Where test infrastructure is available, Ethernet link status, serial port responsiveness, CompactFlash detection, and memory integrity are validated. Units are packed in anti-static shielding with protective foam.
Field note: Full redundancy validation requires a matching secondary CPU, correct baseplate, and compatible system configuration. Bench testing a single module can confirm basic function but not full failover behavior.
Engineer’s Installation / Replacement Notes
- Confirm the exact model. PM862K01 is not interchangeable with PM862K02, PM864, PM866, or Advant-series processors. Check 3BSE076940R1 before installation.
- Verify redundancy mode. If the system runs redundant, confirm whether the original unit was configured as primary or secondary, and ensure the replacement matches the system architecture.
- Check the CompactFlash card. If the application or firmware is stored on the CF card, verify it is seated correctly and not corrupted before power-up.
- Inspect the TP830 baseplate. Damaged backplane contacts, loose Ethernet jacks, or worn DIN-rail locks can cause intermittent faults even with a good CPU.
- Plan for commissioning. After replacement, verify CPU status, application load, Ethernet communication, I/O mapping, and redundancy synchronization before returning to full process load.
