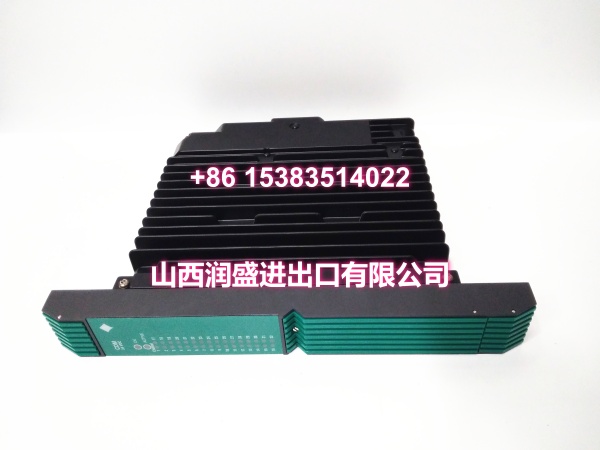

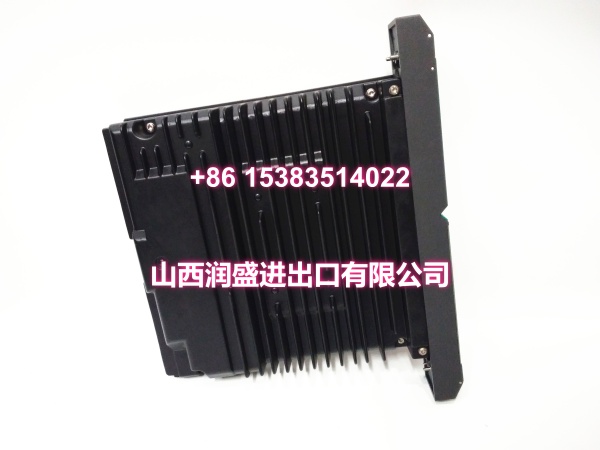

Product Core Brief

• Model: PSCDM024DCBAN
• Brand: Yokogawa
• Series: ProSafe-PLC / ProSafe-RS Critical Discrete Module
• Core Function: Safety-rated discrete I/O module for 24VDC digital signals in Yokogawa safety systems.
• Product Type: Critical Discrete Module
• Key Specs: 24VDC I/O signal | ProSafe-PLC safety architecture | CE / AB Type Approved
• Condition: New Original / New Surplus

Key Technical Specifications

• Manufacturer: Yokogawa
• Part Number:
• Module Type: Critical Discrete Module
• System Family: ProSafe-PLC / ProSafe-RS safety system
• I/O Signal Rating: 24VDC
• I/O Current: See module label / system documentation for exact per-channel and module limits
• Safety Approval: FM Class I, Div 2 hazardous area marking present on module
• Certifications: CE, AB Type Approved
• Origin Label: Made in U.S.A. for Yokogawa by Siemens Energy
• Firmware: ROM version shown on module label; must match system acceptance requirements
• Mounting: Backplane-mounted safety I/O module
• Typical Applications: ESD trips, permissive interlocks, valve position feedback, pump start/stop status, safety relay monitoring

Product Introduction

The PSCDM024DCBAN is a Yokogawa critical discrete module used in ProSafe-PLC and ProSafe-RS safety systems to handle 24VDC digital inputs and outputs for safety-critical logic. It is typically found in ESD panels, burner management skids, compressor protection systems, and other safety instrumented functions where discrete status and trip signals must remain reliable.

Its value lies in direct compatibility with Yokogawa safety racks and the ability to replace failed cards without reworking cabinet wiring. For maintenance and procurement teams, this is a straightforward OEM replacement part that supports existing loop checks, cause-and-effect documentation, and site FAT/SAT procedures.

QA & Testing SOP

This is a safety system component, so inspection focuses on authenticity, electrical integrity, and traceability.

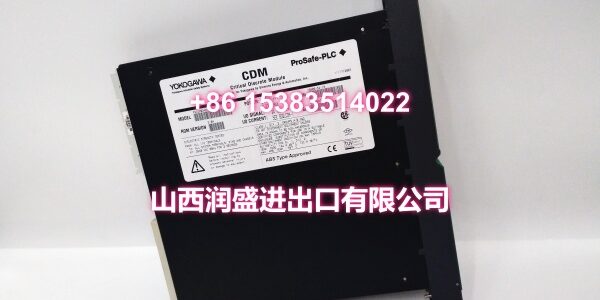

• Label and authenticity check: Verify part number, serial number, ROM version, FM Class I Div 2 marking, CE/AB approvals, and Siemens-for-Yokogawa origin label.
• Visual inspection: Examine the backplane connector, housing, terminal block, and PCB for bent pins, corrosion, rework, or heat damage.
• Power-up test: Energize on a ProSafe test rack with 24VDC and confirm normal module status indicators and no abnormal current draw.
• Discrete I/O verification: Apply 24VDC digital signals and verify channel response with a Fluke-class multimeter or safety test rack; confirm correct on/off state and diagnostic behavior.
• ESD-safe packing: Ship in anti-static packaging with pin protection and photos of labels for receiving QA.

Installation Pitfalls & Guide

❗ Do not substitute this with a standard PLC digital card. It is a safety-rated module; replacement must follow plant MOC, safety-loop procedures, and acceptance testing.

❗ Confirm I/O direction and channel mapping before wiring. A discrete module may be configured as input, output, or mixed depending on system setup; wrong wiring can force an unwanted trip.

❗ Verify 24VDC supply and field device compatibility. ProSafe-RS later generations added higher-voltage digital outputs, so do not assume this 24VDC module can directly drive 48VDC devices without checking the system design.

❗ Handle the backplane connector carefully. Bent pins or poor seating can create intermittent faults that mimic field wiring problems.

Replacement steps:

1. Pre-install: Confirm tag number, loop drawings, ROM/firmware requirements, and ESD precautions.
2. Removal: Follow safety system procedures, de-energize the loop if required, label wires, and remove the module.
3. Install: Seat the module firmly, reconnect wiring, and verify terminal torque and grounding.
4. Power-on test: Restore power, check diagnostics, force/test discrete signals if permitted, and confirm cause-and-effect response.

Technical FAQ

Is pricing flexible?
Yes. Price depends on condition, stock availability, label completeness, ROM version, and whether the unit is new original or new surplus. Urgent shutdown replacements can be prioritized.

What warranty is included?
Surplus safety modules usually carry a limited functional warranty, often 30–90 days, unless otherwise agreed. Final terms depend on stock source and customer QA requirements.

Is it directly compatible with my Yokogawa system?
It is a ProSafe-PLC / ProSafe-RS critical discrete module, but slot type, firmware level, channel configuration, and system version must be confirmed against your cabinet documentation before ordering.

Can this replace an obsolete discrete card?
Often yes, but only after verifying the exact part number, 24VDC rating, I/O direction, and safety approval. Do not replace based on physical fit alone.

Do you provide test records?
We can provide label photos, bench power-up notes, discrete signal checks, and packing records. Full calibration or system-level test reports can be arranged if required.
