Product Core Brief
- Model: (OEM Code: HIEE300766R0001)
- Brand: ABB
- Series: 1900 Series Hydro / Thermal Generator Control Platform
- Core Function: Executes automatic generator-grid synchronization by matching voltage, frequency and phase; integrates anti-parallel fault protection for hydroelectric and thermal turbine units.
- Product Type: Rack-Mount Generator Auto-Synchronizer PCB Control Board
- Key Specs: 27 V DC backplane supply | 4 relay output contacts | Modbus RS485 communication | 1500 V channel isolation Condition: New Original (New Surplus)
Product Introduction

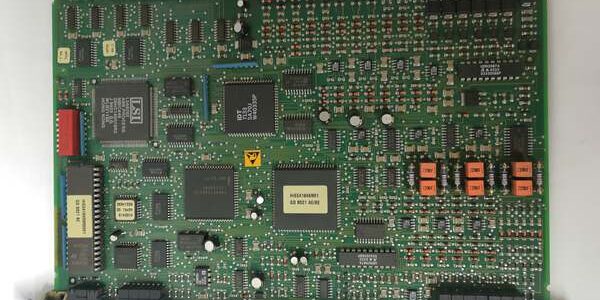

The ABB is a double-width rack control PCB engineered exclusively for ABB 1900 power plant control systems, responsible for safe generator grid paralleling across hydro and thermal power station assets.Well, technically it shares subrack mounting footprint with analog turbine governor boards, yet the ABB embeds dedicated phase discrimination logic missing from generic signal interface cards. Its phase angle detection resolution locks at 0.1° electrical, enabling smooth zero-crossing breaker closing under full generator load.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Full OEM Identifier | , |
| Target Application | Hydro / thermal generator auto-synchronization, grid parallel protection |
| Nominal Backplane Supply | 27 V DC (24–30 V continuous operating range) |
| Relay Output Ratings | 4 Form C contacts; 6 A / 250 V AC, 6 A / 124 V DC resistive load |
| Phase Detection Accuracy | 0.1° electrical phase resolution |
| Synchronization Operating Window | ±5 % voltage, ±0.5 Hz frequency deviation threshold |
| Communication Interface | RS485 Modbus RTU for remote parameter read/write and fault logging |
| Dielectric Isolation Rating | 1500 V AC between grid voltage inputs and control logic circuits |
| Operating Ambient Temperature | -20 °C to +60 °C enclosed control cabinet air |
| Storage Temperature Range | -40 °C to +85 °C non-operating transit |
| Physical Form Factor | Double-width subrack PCB with two 96-pin Eurocard connectors |
| Unit Net Weight | 0.7 kg fully assembled with passive components |
| Overall Dimensions | 53 mm W × 125 mm H × 260 mm D |
| Mechanical Relay Lifespan | 10 million mechanical cycles; 100,000 electrical full-load switching cycles |
| Built-In Protection Logic | Out-of-step, overvoltage, underfrequency, reverse power interlock trip logic |
Quality Control Process
- Incoming Verification: Cross-reference PCB serial numbers against ABB 1900 power control factory batch manifests to reject counterfeit synchronization hardware. Visual inspection scans for cracked PCB substrates, corroded Eurocard gold pins, or swollen electrolytic timing capacitors (—minor conformal coating speckles pass QA screening).
- Live Functional Test: Secure the board into a calibrated 1900 series test subrack, feed regulated 27 V DC backplane supply, and run full power-on self-diagnostics. Inject simulated generator/grid voltage phase signals, execute a 24-hour cyclic synchronization breaker closing test with hourly phase angle error logging.
- Electrical Parameter Test: Use a Megger MIT300 at 500 V to validate cross-circuit insulation resistance; all grid input and relay output paths must register above 10 MΩ. Confirm subrack protective earth continuity via Fluke 115 multimeter across chassis ground lugs.
- Firmware Verification: Read embedded synchronization controller firmware revision via ABB Power Control Studio software, log the version to unit trace paperwork, photograph voltage/frequency threshold DIP switches on the front terminal header for field replacement reference.
- Final QC & Packaging: Cap both Eurocard header ports with plastic dust plugs, clean all relay contact terminals with isopropyl alcohol, seal the PCB inside anti-static foam-lined industrial packaging, and attach a dated QC Passed sticker with assigned test technician ID.
Replacement Pitfall Guide
- Firmware Mismatch: Legacy 1900 control racks running synchronization firmware v2.2 or older cannot process high-resolution 0.1° phase detection data from newer ABB firmware v2.8. Upgrade station control runtime or source vintage matching PCB revisions to avoid out-of-step breaker trip faults.
- DIP Switch / Jumper Misconfiguration: Factory DIP defaults set wide voltage/frequency tolerance windows for small generators, but large turbine units require tightened deviation thresholds; misaligned jumpers trigger dangerous asynchronous grid closing events.
- Terminal / Cable Incompatibility: Grid voltage sensing wiring pin mapping differs between ABB and older single-channel sync boards. Route all PT secondary shield drain wires directly to station master earth bar, not local subrack ground lugs.
- Power Supply Mismatch: Sum total draw of all sync, governor and protection PCBs in the subrack and add 20% power headroom to the 27 V DC rack PSU. Undervoltage supply distorts phase signal sampling and widens synchronization error past 1° electrical.
- ESD Damage: Static discharge risk spikes heavily at plant humidity below 30%. Rest the PCB on an anti-static mat during subrack swaps; bare contact with front-end voltage divider traces permanently shifts generator voltage calibration offsets.
Keep these in mind and you’ll cut 90% of rework time.
Compatibility Matrix & Benchmarks
Compatibility Matrix
- → : Direct — Exact Eurocard pinout, phase detection logic, and relay layout drop-in replacement
- → Generic Single-Channel Sync Board : Needs Adaptation — Reduced phase resolution, full generator voltage transformer wiring recalibration required
- → FI830F : Incompatible — Freelance Profibus communication card lacks generator synchronization analog measurement circuits
- → FAU810 : Incompatible — Flame safety DIN rail processor cannot mount to 1900 series Eurocard subracks
Benchmarks
- Phase angle detection resolution: 0.1° electrical (simulated generator full-load voltage signal)
- Full synchronization sequence cycle time: ≤2 seconds (within factory voltage/frequency deviation windows)
