Product Core Brief
- Model: FI830F (3BDH000032R1)
- Brand: ABB
- Series: Freelance AC800F DCS PROFIBUS Communication Modules
- Core Function: Acts as single-channel PROFIBUS DP-V1 bus master for PM802F/PM803F controllers, linking remote S800/S800L I/O, drives and third-party DP field devices.
- Product Type: Single-Channel PROFIBUS DP Master Fieldbus Module
- Key Specs: 1×DP channel up to 12 Mbps | Max 126 DP slaves | 9-pin D-Sub field port Condition: New Original (New Surplus)
Product Introduction

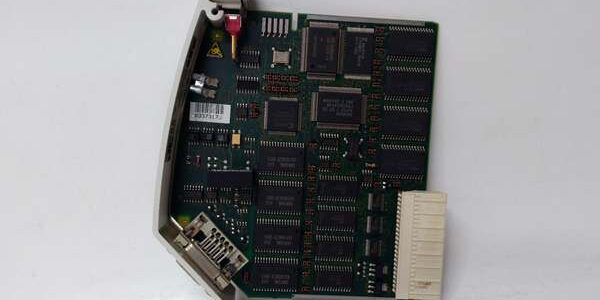

The ABB 3BDH000032R1 is a dedicated single-slot fieldbus adapter occupying the F2 expansion slot on ABB Freelance AC800F processor racks, delivering native PROFIBUS DP-V1 connectivity for distributed remote I/O clusters and field automation hardware.Well, technically it shares single-width rack dimensions with FI810F CAN modules, yet the ABB 3BDH000032R1 implements full DP-V1 acyclic device diagnostic services missing from older serial interface cards. Its minimal cyclic tag refresh latency holds 0.6 ms under a fully populated 126-slave bus topology at 1.5 Mbps baud rate.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Full OEM Part Code | , 3BDH000032R1 |
| Mandatory Controller Slot | F2 expansion slot on AC800F PM802F / PM803F backplane |
| Supported Controller Runtime | Freelance Control Builder F V7.1 SP2 and newer |
| Fieldbus Standard | PROFIBUS DP-V0 / DP-V1 (DIN 19245) |
| Baud Rate Range | 9.6 kbps to 12 Mbps software configurable |
| Maximum Slaves Per Channel | 126 PROFIBUS DP slave nodes |
| Physical Field Connector | Single 9-pin female D-Sub with bus activity LED |
| Nominal Rack Supply | 24 V DC (18–30 V continuous operating range) |
| Typical Power Consumption | 1.2 W under full bus load |
| Operating Ambient Temperature | -20 °C to +60 °C enclosed control cabinet air |
| Storage Temperature Range | -40 °C to +70 °C non-operating transit |
| Dielectric Isolation Rating | 500 V AC between controller backplane and DP field circuits |
| Physical Form Factor | Single-width AC800F rack slot (125 mm × 155 mm × 28 mm) |
| Unit Net Weight | 0.148 kg fully assembled |
| Enclosure Protection Class | IP20 indoor cabinet installation only |
| Compatible Field Hardware | S800, S800L remote I/O, ABB ACS drives, third-party DP sensors/actuators |
| Redundancy Support | Line redundancy compatible via external RLM01 module |
Quality Control Process
- Incoming Verification: Cross-reference module serial numbers against ABB Freelance factory batch manifests to reject counterfeit PROFIBUS communication hardware. Visual inspection checks for cracked D-Sub port housings, bent backplane gold edge pins, or discolored DP transceiver ICs (—minor PCB conformal coating marks pass QA screening).
- Live Functional Test: Seat the module into F2 slot of a calibrated test rack with PM803F processor, feed regulated 24 V rack power, and run power-on self-test. Establish PROFIBUS DP handshake with simulated S800 I/O slave nodes, then execute a 24-hour cyclic tag data exchange load test with hourly bus latency logging.
- Electrical Parameter Test: Use a Megger MIT300 at 500 V to validate cross-circuit insulation resistance; all backplane-to-DP isolation paths must register above 10 MΩ. Confirm rack protective earth continuity via Fluke 115 multimeter across the chassis ground lug.
- Firmware Verification: Read embedded PROFIBUS stack firmware revision through Freelance Control Builder F software, log the version to unit trace paperwork, and photograph bus termination jumper positions on the D-Sub header for field replacement reference.
- Final QC & Packaging: Clear residual dust from the 9-pin D-Sub port with dry compressed air, cap the PROFIBUS connector with factory plastic dust plug, seal the unit inside anti-static shielding bag, and attach a dated QC Passed sticker with assigned test technician ID.
Replacement Pitfall Guide
- Firmware Mismatch: Freelance racks running runtime V7.0 or older cannot parse extended DP-V1 diagnostic frames from newer ABB 3BDH000032R1 firmware v2.0. Upgrade controller runtime or source legacy DP module revisions to avoid periodic bus slave dropouts.
- DIP Switch / Jumper Misconfiguration: Factory jumper defaults disable onboard 120 Ω bus termination, but end-of-segment PROFIBUS cables require this resistor enabled; disabled termination creates severe signal reflection and cyclic communication timeouts on ABB 3BDH000032R1 bus segments.
- Terminal / Cable Incompatibility: Standard shielded PROFIBUS twisted-pair cable is mandatory; unshielded wiring generates noise-induced fault codes when paired with ABB 3BDH000032R1 hardware. Route all cable shield drains directly to cabinet master earth bars, not local rack ground lugs.
- Power Supply Mismatch: Sum total draw of all communication and I/O modules in the rack and add 20% power headroom to the 24 V PSU. Undervoltage supply below 18 V reduces DP signal differential amplitude and triggers persistent slave offline alarms.
- ESD Damage: Static discharge risk spikes heavily at plant humidity below 30%. Place an anti-static mat under the controller rack during module swaps; bare PCB contact with the PROFIBUS transceiver traces corrupts bus arbitration logic instantly.
Keep these in mind and you’ll cut 90% of rework time.
Compatibility Matrix & Benchmarks
Compatibility Matrix
- 3BDH000032R1 → 3BDH000032R1 : Direct — Exact F2 slot pinout, DP transceiver stack, and D-Sub port layout drop-in replacement
- 3BDH000032R1 → FI810F : Needs Adaptation — CAN-only interface, full fieldbus network topology reconfiguration required; cannot occupy F2 PROFIBUS dedicated slot
- 3BDH000032R1 → EI813F : Incompatible — Ethernet communication module lacks PROFIBUS DP transceiver hardware
- 3BDH000032R1 → DSTS105 : Incompatible — Intrinsically safe analog I/O card cannot install into controller expansion slots
Benchmarks
- Full bus tag scan latency: 0.6 ms (simulated load, 126 PROFIBUS DP slave nodes at 1.5 Mbps)
- Maximum supported fieldbus baud rate: 12 Mbps (short industrial cable segments < 100 m)
