Product Core Brief
- Model: DSPC174 (3BSE005461R1)
- Brand: ABB
- Series: S800 I/O for Advant Master DCS
- Core Function: Executes high-speed signal processing and mediates ModuleBus/Advant Fieldbus 100 traffic for remote I/O clusters.
- Product Type: DSP I/O Processor Board
- Key Specs: 1 MB Flash | 128 KB RAM | 24 V DC backplane supply Condition: New Original (New Surplus)
Product Introduction

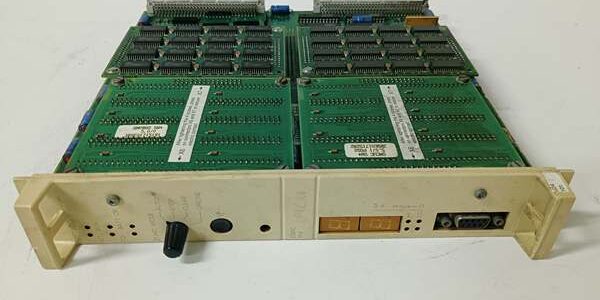

The ABB 3BSE005461R1 is a dedicated DSP processing board built for Advant Master S800 distributed I/O racks. It offloads analog/digital signal calculations from main Advant controllers.Well, technically it shares single-width rack sizing with DP-series pulse modules, yet the ABB 3BSE005461R1 adds dedicated fieldbus arbitration hardware absent from standard I/O cards. Its minimum I/O scan cycle hits 0.4 ms for full 64-point cluster loads.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Full Part Number | , 3BSE005461R1 |
| Target System | Advant Master AC410 / AC450 Controllers |
| Onboard Memory | 1 MB Flash program storage, 128 KB volatile RAM |
| Supply Input | 24 V DC (18–30 V operating window) |
| Max Power Consumption | 8 W under full bus traffic load |
| Native Buses | ModuleBus internal rack bus, Advant Fieldbus 100 |
| Secondary Comms | Profibus DP (12 Mbit/s max baud rate) |
| Min I/O Scan Cycle | 0.4 ms (64 mixed analog/digital points) |
| Operating Temperature | -25 °C to +60 °C continuous rack operation |
| Storage Temperature | -40 °C to +85 °C non-operating |
| Dielectric Isolation | 500 V AC between field bus and backplane circuits |
| Physical Form | Single-width S800 DIN rail rack slot (47 mm width) |
| Unit Dimensions | 120 mm × 47 mm × 110 mm |
| Net Weight | 0.4 kg |
| Certifications | CE, UL, RoHS, DNV marine classification |
Quality Control Process
- Incoming Verification: Match serial identifiers to ABB factory production manifests to block counterfeit hardware. Visual inspection flags cracked PCB edges, bent backplane pins, or faded component silk screening (—minor conformal coating speckles pass QA).
- Live Functional Test: Seat the board on a calibrated S800 backplane, apply regulated 24 V rack power, and complete power-on self-test. Establish Advant Fieldbus handshake with AC450 test controller, then run 24-hour continuous I/O traffic load with hourly thermal logging.
- Electrical Parameter Test: Use a Megger MIT300 at 500 V to validate cross-circuit insulation; all isolated bus segments must register above 10 MΩ. Confirm rack ground lug continuity via Fluke 115 multimeter.
- Firmware Verification: Read and log DSP firmware revision through Advant Engineering Workbench, capture clear photos of bus termination DIP switches on the rear header for field replacement reference.
- Final QC & Packaging: Clean backplane gold contacts with isopropyl alcohol, seal the board inside shielding anti-static bag, and attach dated QC Passed sticker with assigned test technician ID.
Replacement Pitfall Guide
- Firmware Mismatch: Older AC410 Advant racks running firmware v3.7 cannot parse fieldbus packets from newer ABB 3BSE005461R1 firmware v2.2. Upgrade controller runtime or source legacy DSP revisions.
- DIP Switch / Jumper Misconfiguration: Factory DIP defaults disable the 120 Ω fieldbus termination resistor, but multi-cluster remote I/O racks require this resistor on the final unit; missing it creates cyclic scan timeout faults.
- Terminal / Cable Incompatibility: Advant Fieldbus pinouts differ between ABB 3BSE005461R1 and generic Profibus communication modules. Route cable shield drains directly to rack earth bars, not local terminal grounds.
- Power Supply Mismatch: Sum total draw of all DSP and I/O cards in a cluster then add 20% power headroom to the rack 24 V PSU. Undervoltage supply stretches scan cycles past 2 ms and triggers controller fault alarms.
- ESD Damage: Static risk spikes below 30% relative humidity in dry process plant environments. Always place an anti-static mat under the rack during board swaps; bare PCB contact erases flash memory and corrupts DSP logic instantly.
Keep these in mind and you’ll cut 90% of rework time.
Compatibility Matrix & Benchmarks
Compatibility Matrix
- 3BSE005461R1 → 3BSE005461R1 : Direct — Exact bus, memory, and fieldbus drop-in replacement
- 3BSE005461R1 → DP840 : Incompatible — Pulse counter hardware lacks DSP fieldbus arbitration logic
- 3BSE005461R1 → CI801 : Needs Adaptation — Communication interface only, no signal processing, full I/O logic reconfiguration required
- 3BSE005461R1 → DSMB-01C : Incompatible — Drive trigger PCB cannot interface with Advant Master DCS racks
Benchmarks
- Scan cycle: 0.4 ms (simulated load, 64 mixed analog/digital I/O points)
- Comms throughput: 12 Mbit/s (Profibus DP fieldbus)
Internal Self-Check Confirmation
